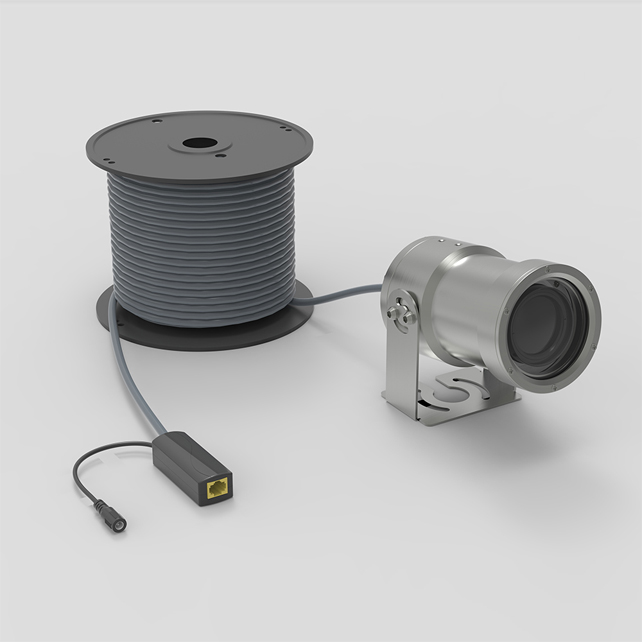

HD Zoom Seacam
HD Zoom Seacam DZ10010-DZ97
Applocation:
Salmon fish farm monitoring and control
Fish pen net inspection
Seawater and fresh water research
Offshore survey
Offshore oils and gas project
Oceangraphic
All other HD visual apploications
Detail spec of the D10010-DZ97
| ACamera head dimension |
Φ97mm*155mm(L) |

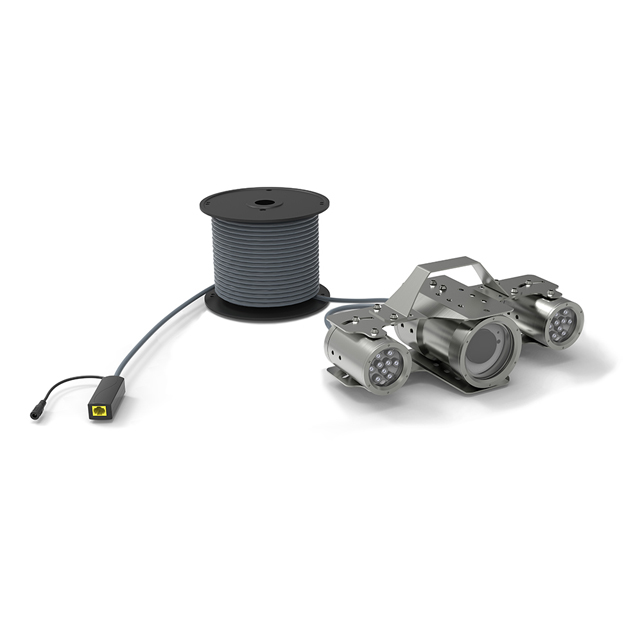

| Camera head with 2 extra lights | 350mm(L)*141mm(H)*174mm(W) |
| Lens | 4.7-141mm 30XOptical zoom lens |
| Sensor |
1/12.8" SONY CMOS sensor,color 0.001LuxF1.2,black/white 0.0001LuxF1.2 |
| Resolution |
4K 3840x2160P 30fps |
| 5MP 2592X1944P 30fps/50fps | |
| 4MP 2590X1920P 60fps | |
| 3MP 2048X1536P 60fps | |
| 2MP 1920X1080P 60fps | |
| Image color |
Full color |
| Two pcs extra fill lights | Built-in 15pcs white led lights and 10000Lumen in total, 10 level dimness |
| Built-in 15pcs infrared lights and 10000Lumen in total,10level dimness | |
| Camera housing material | 316L stainless steel, anti-corrosion |
| Waterproof level | IP68(permanently installed under water) |
| Water pressure resistance | Maximum 1000Kpa(Waterpressure resistance 100M) |
| Cable | Ф8mm thickness industrial cable material.Resistance to 60KG pull.Anti-aging,anti-friction,anti-seawater corrosion. |
| Cable end jack | Standard with Gigabit RJ45,HDMI jack available |
| Support device |
Computer,NVR |
| Support agreement | IPv4/IPv6,802.1X,GB28181,HTTPS,HTTP,TCP/IP,UDP,RTP,RTCP,UPNP,RTSP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,RTSP,RTMP,ONVIF;SDK secondary development |
| Use enviroment | Seawater/Freshwater/Land |
| Working humidity |
0%-100% |
| Working temperature | -20℃-55℃ |
| Power supply | DC24V 30W |
| Weight | 8.5kg |
| Package | 1*camera with two extra lights;1*bracket;1*U disk(instruction and software) |
Product Downloads
Detail Spec Download
