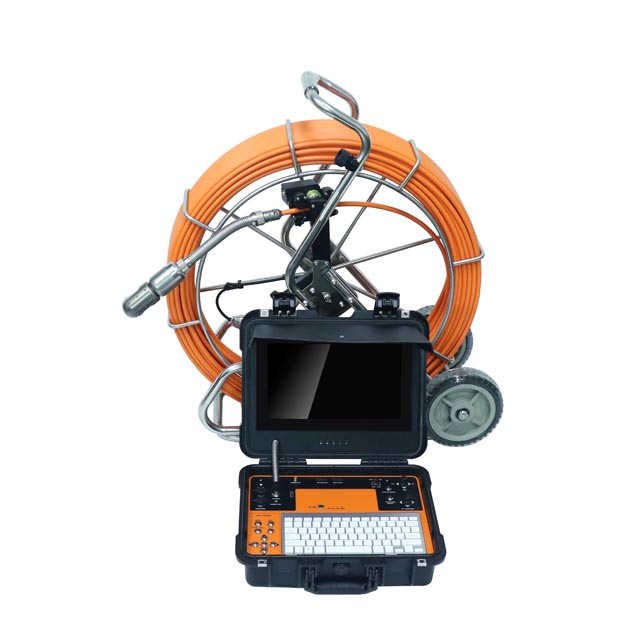

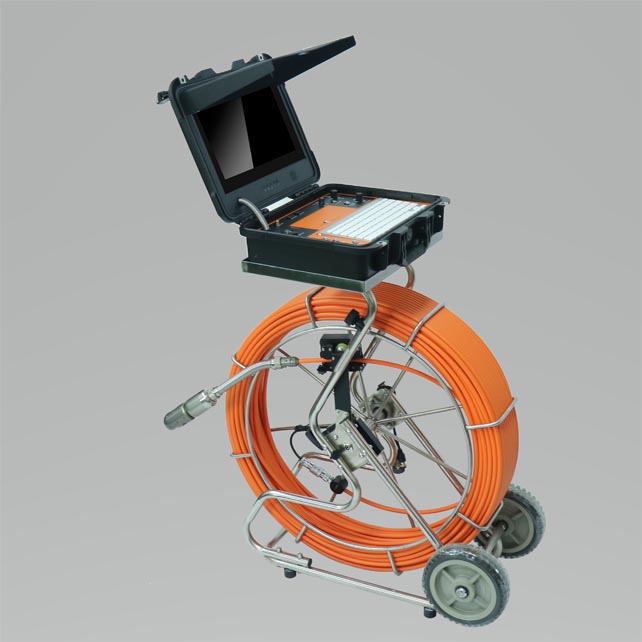

P10000PT-1 AHD Pipe Inspection Camera System with Big Cable Wheel(120M)

1.3MP AHD Pan and Tilt Pipe Inspection Camera System (60M/120M)P10000PT-1

Here there is an upgrade suitcase and adding a manual focus function.

Mainly Application

  • Wall Pipe Inspection

  • Underground Pipe and Drain Inspection

  • Other Visual Applications

Detail spec as follows:

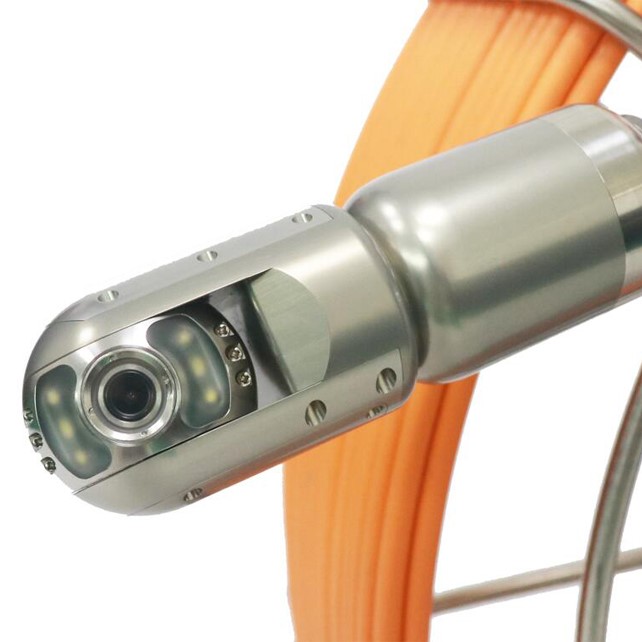

1. High Resolution Video Camera Head

   P10000PT-1 image.pngP10000PT-1 camera head2.642.jpg

* Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel

* Waterproof IP68 up to 10 bar

* View range 120°

* Rotation: Pan 360°, Tilt 180°

* lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Detachable with pins type connection to Cable Reel

* Lens window sapphire glass

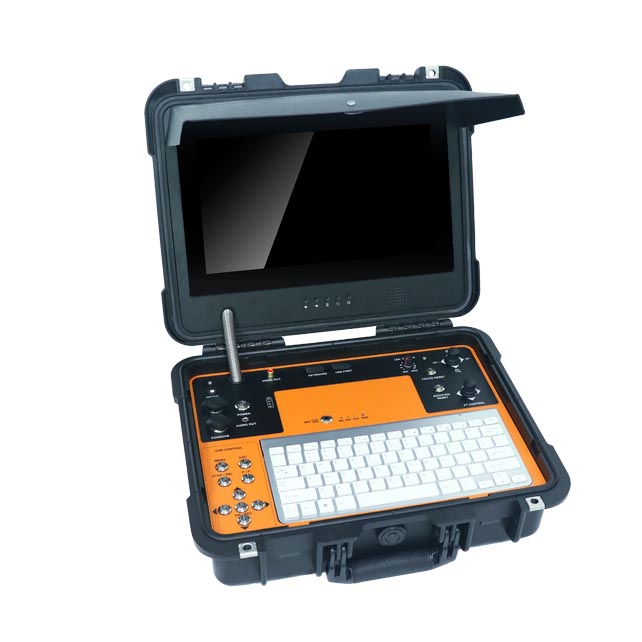

2.Easy of Operation Control Box and Monitor

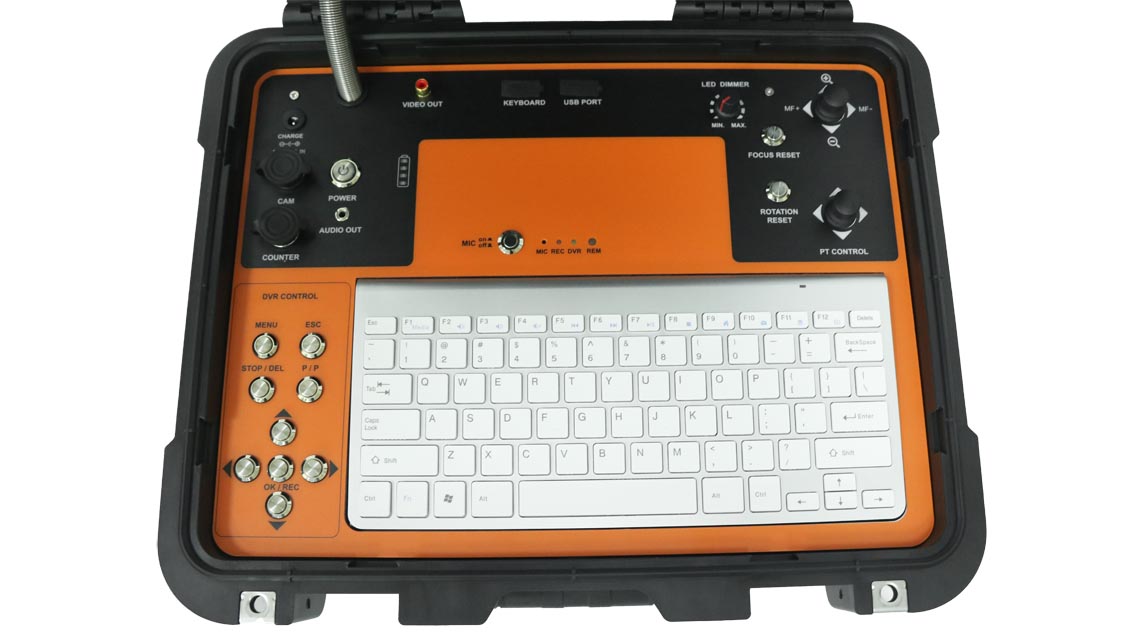

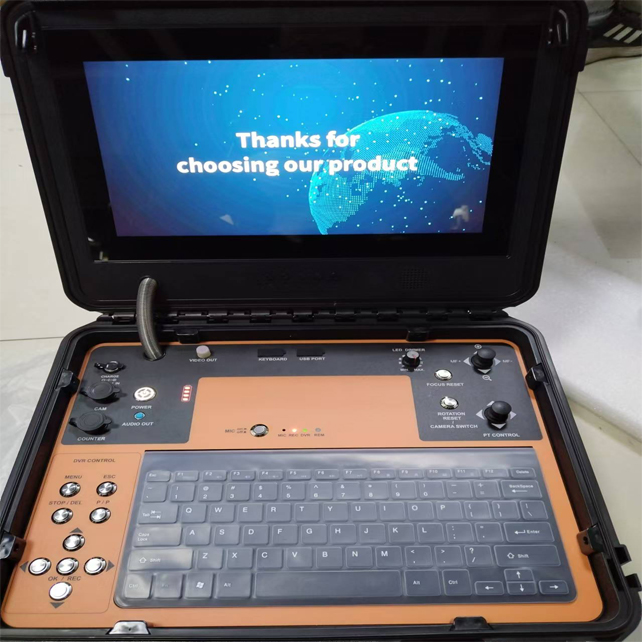

New Suitcase 13inch screen2642.jpgP10000PT-1control panel 1.642.jpg

*13"HD IPS LCD Screen, 1280X720 resolution

* PT camera Joystick. One joystick to control the movement of the PT camera, the other one for the mannaul focus function.

  That means when the camera is close on the pipe wall,we can adjust the focus to win a good image.

* HD DVR SYSTEM with recording 720P video, auido and photography function


* Video input

* Digital meter counter function, display on the screen

* 8800mA rechargeable Li-ion Battery Pack

* Battery level indicator

3.Flexible Cable Wheel.

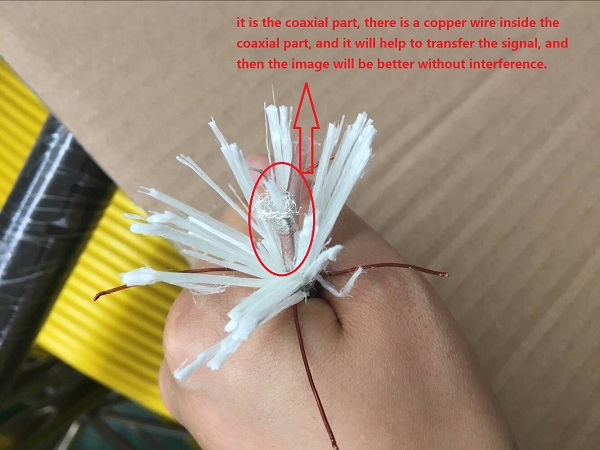

PT camera cable material  in detail600.jpg

* Fiberglass push rod cable

* Cable diameter ø9mm

* Cable length from 60m to 150m optional

* Reel size 70 x 28 x 84cm

4.Long Burn- time and Rechargeable Battery and Charger

* 8800mA li-ion battery

* AC110V-240V 1.5A power charger

* Charging time 5hours, working time 6-8 hours

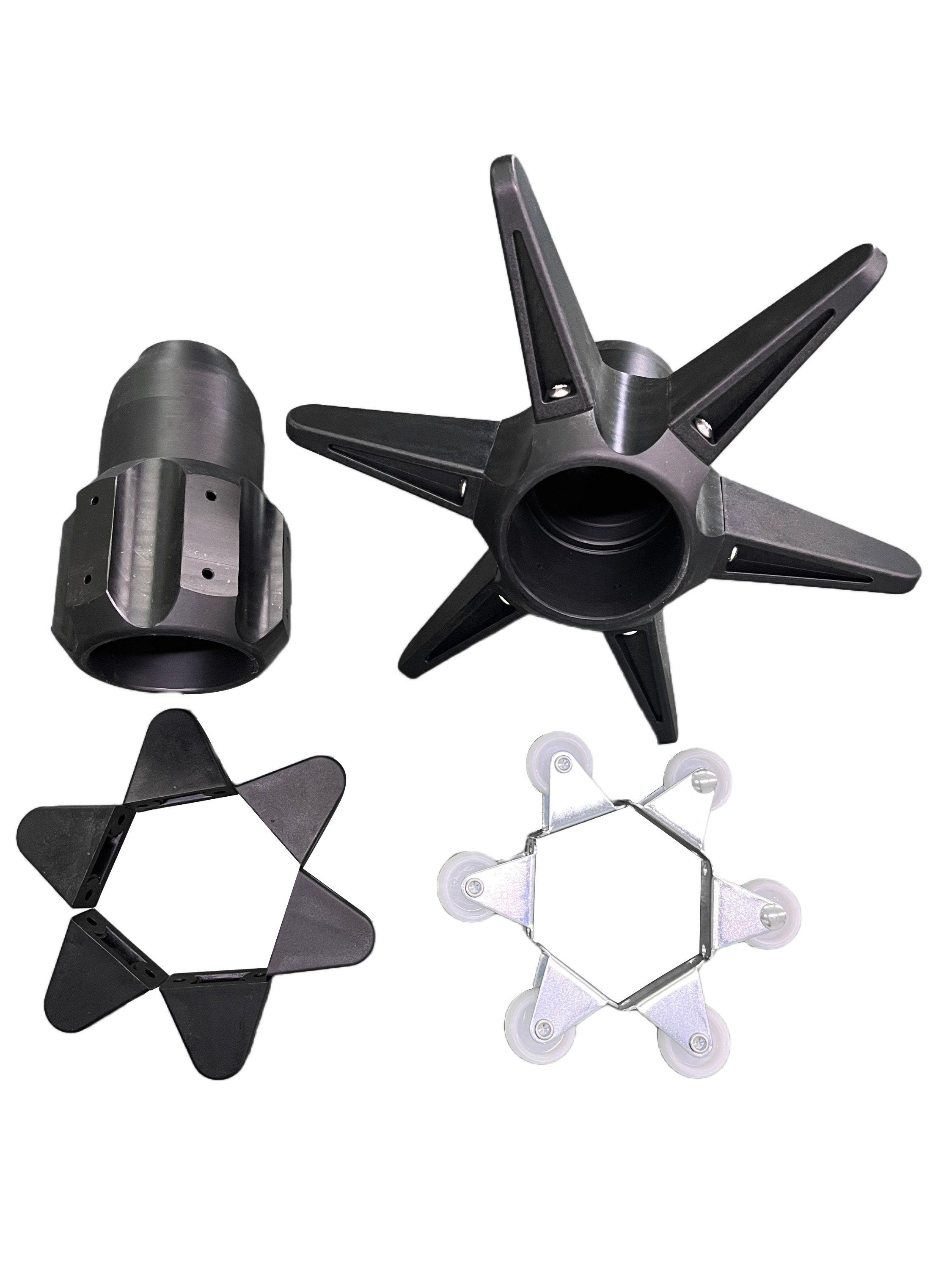

5.Skid for Keeping Camera Center In the Pipe

3sizes skids3.jpg

6.Stainless Steel Skid(Option)



2pcs Packing carton size:


59 X 35 X 69cm

Total weight: 27kg

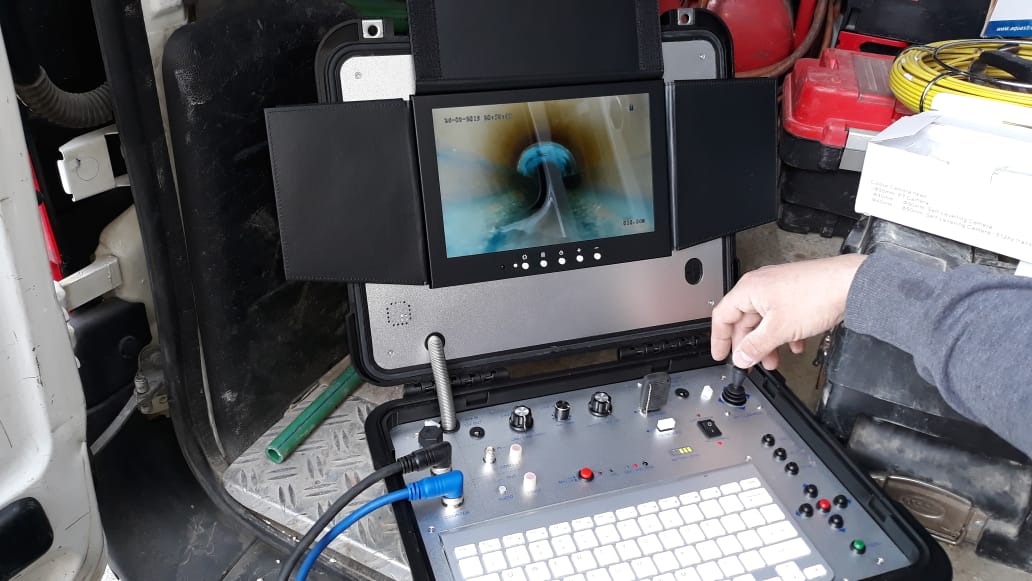

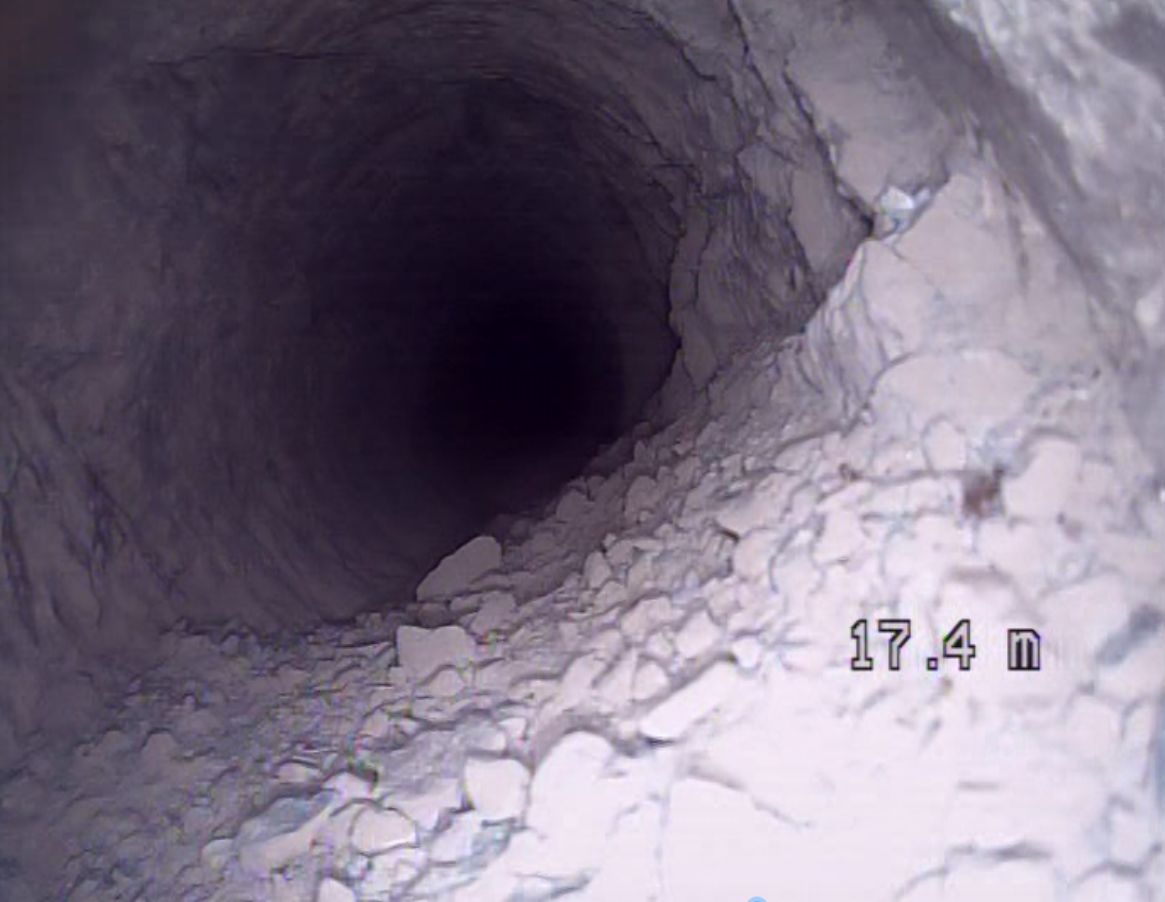

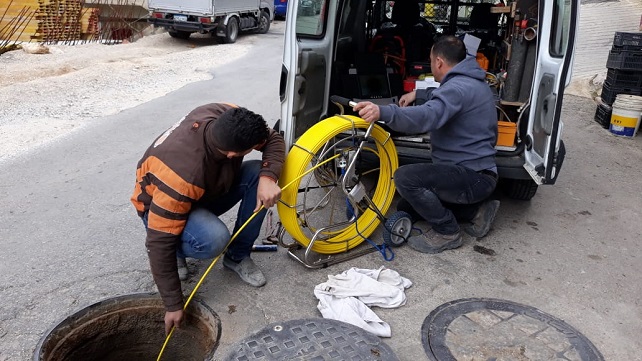

Good feedback from the sites

Detail spec for the P10000PT-1(Upgrade)

1.3MP PT Pipe Inspection Camera system Spec P10000PT-1(13inch screen).pdf

Product Downloads

Detail Spec Download
