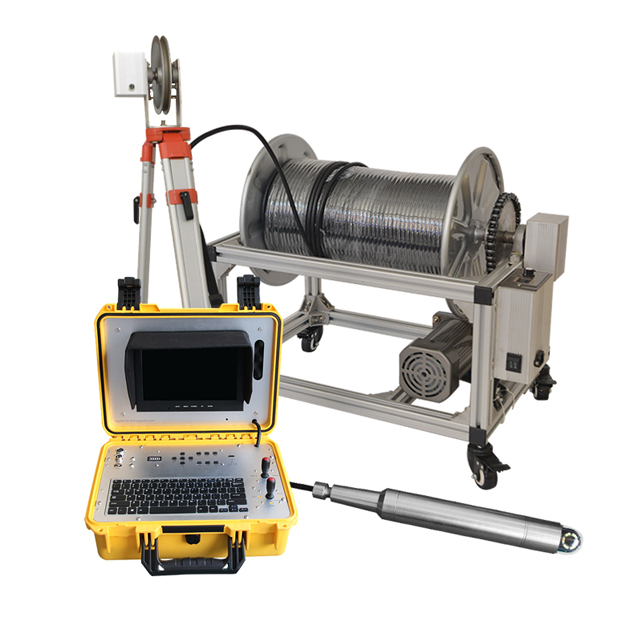

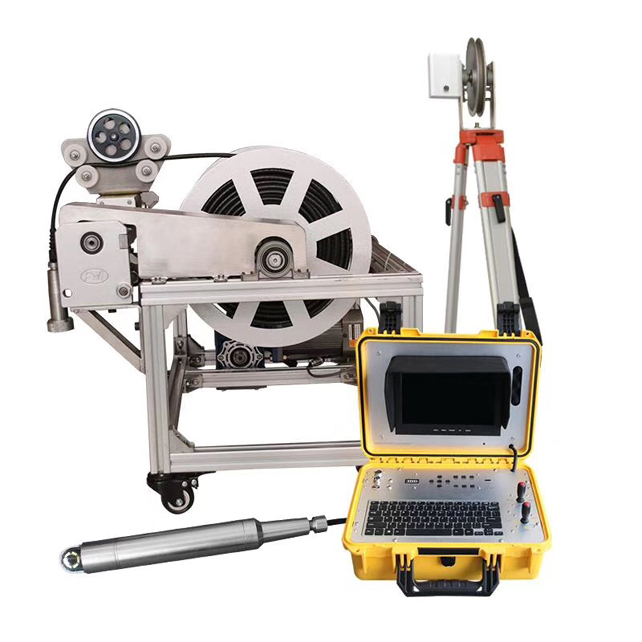

D10014PT Borehole Inspection Camera System with Water Depth 2000M

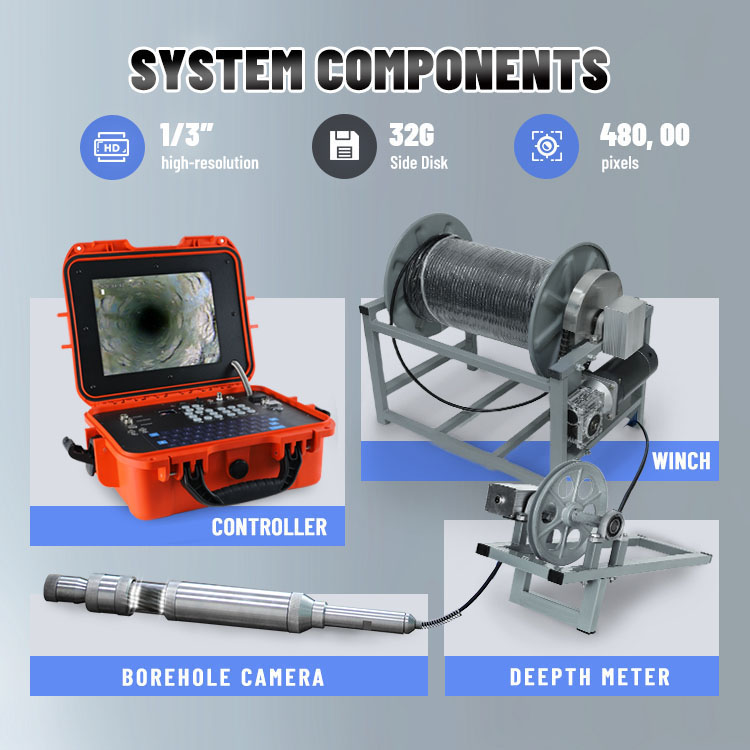

360°Rotating Borehole Inspection Camera System D10014PT
Applications:

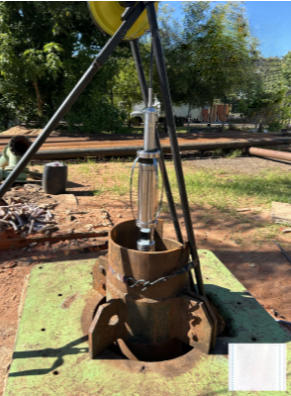

Borehole Inspection
Deep well survey
All visual applications
| Detail specification: | |
|
Camera head | |
| Diameter | Ф65MM*300MM(L) |
| Waterproof | 20MPa,water depth:2000M Max |
| Heat-Resistant | 70℃ |
| Led Lights | Built-in 12 pcs Led Lights with 10 Level Dimness |
| Sensor | 1/3” High Resolution CCD,Pixles:976(H)*582V(PAL) 700TVL |
| Resolution | 700TVL |
| Focus | Variable Focus |
| View of Angle | 90° |
| Signal to Noise Ratio | 52dB(Min) to 60dB(Max)(AGC shut down) |
| Sensitivity | 0.1 Lux at F1.2 5600°K |
| Pan Movement | Support single step and multi-step |
| Tilt Movement | Support single step and multi-step |
| One Button Auto Pan Canning | |
| Speed Setting and Dynamic Switching | |
| Step Length Setting and Dynamic Switching | |
|

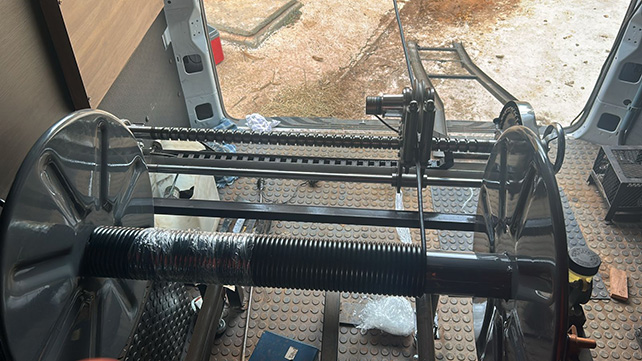

Cable | |
|
Cable Diameter |
8MM |
| Tensile Strenght | 280KG |
| Logging Cable | 6 cores |
| Digital Meter-counter | Accurate 0.05M |
| Centralizer |
High elastic stainless steel centralizer |
| Heat-resistance | 70℃ |
|
Downhole Pulley | |
| Pulse | 400 |
| Digital Meter-counter Function | Work together with the suitcase |
| Meter-counter Accuracy | 0.05M./ automatic calibration |
|
Suitcase | |
| Power Supply | 12V-220V |
| Dimension | 415*340*144MM |
| Depth Jack | Yes |
| Video in /out Jack | Yes |
| Video/audio/text Recording | Yes |
| Keyboard | Yes |
| Storage | Support Hard Driver and USB |
|

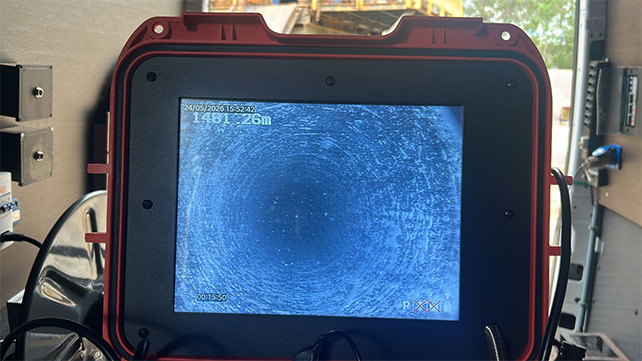

Monitor | |
| Size | 12 inch |
| Model |
4:3 |
| Contrast Ratio | 500cd/㎡ |
| Pixles | 1024*768 |
| Power Supply | DC12V |
Product Downloads
Detail Spec Download
