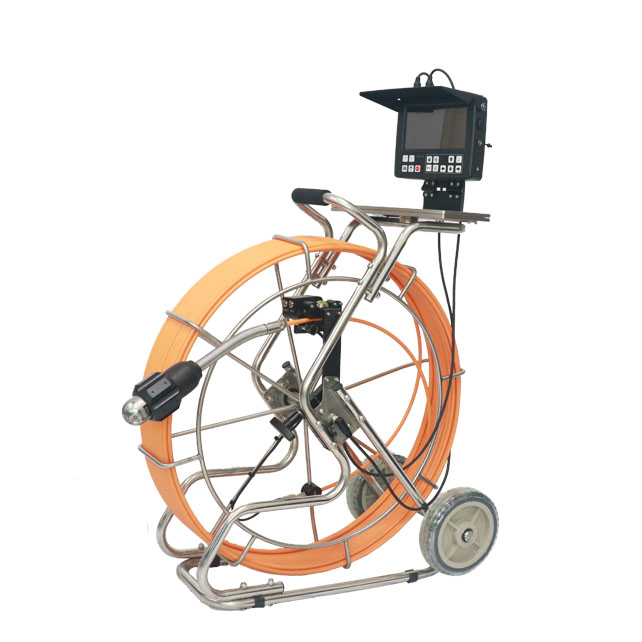

120M Compact 1.3MP Pan and Tilt Pipe Inspection Camera System

120M Compact 1.3MP Pan and Tilt Pipe Inspection Camera System


  • Wall Pipe Inspction

  • Underground Pipe Inspection and Drain Inspection

  • Other Visual Applications

P10002PTCM-1 642New.jpg


  • 1.360 degree rotation camera head,pan 360º,tilt180º.

  • 2.1/3 CMOS,1.3MP.AHD camera head,waterproof up to 10bars.

  • 3.Compact and integrated DVR control unit, easy operation.

  • 4.Waterproof 8Inch display,anti-shake and work for rugged environment

  • 5.video/audio/text recording.

  • 6.60m/120m cable length, ∅9mm fiberglass.

  • 7.USB bluetooth,keyboard to typewrite the words.

  • 8.Camera video resolution:720P.

  • 9.Built-in 8800mA Li-ion battery, support unit working more than 6 hours.

  • 10.Digital meter-counter function, error is less than 1%

Detail spec:

Camera Head



*Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP   pixel

* Waterproof IP68 up to 10 bar

* View range 120°

* Rotation: Pan 360°,Tilt 180°

* lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Detachable with pins type connection to Cable Reel

* Lens window sapphire glass

Multiple DVR &Control Panel


*8"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model

* HD DVR SYSTEM with recording 720P video

* DVR recording system with AVI video format

* Waterproof LCD panel

* USB wireless Keyboard real time typewriting

* USB port to connect storage device ( 16G USB flash disk)

* Built-in 7000mA rechargeable Li-ion Battery Pack

* Battery level indicator                                                                                            * Sunshade is included

* Box size 23x20x5cm

* AC 110V-240V 1.5A power charger

* Charging time 7 hours,working time about 4 hours

* Can fix on the cable reel, can be handhold, can hang on the   neck(optional)

Multiple DVR Functions Instruction


1.   POWER    Press the button for 3 seconds to turn on   /off the control box
2. Keboard   Insert 2.4G wireless keyboard adapto
3.USB  Insert external USB disk to record and save the video& picture files. Please don’t remove the USB flash disk when it is recording
4.Audio   Insert the 3.5mm earphone
5.Counter  Use 8pin link cable, one port to “COUNTER” port, the other to cable reel “Meter counter port”.
6.Camera   Connect 6pin link cable to cable reel
7.Control Panel  Details reference picture(1-1)
8.Monitor  8inch HD screen ,1280x720 resolution
9.Led Dimmer   Adjust 18mm,23mm,29mm,40mm and 55mm camera LED brightness
10.DC IN   Connecting extra charge adaptor
11.RESET  When the system is halted


Digital Meter-counter Cable

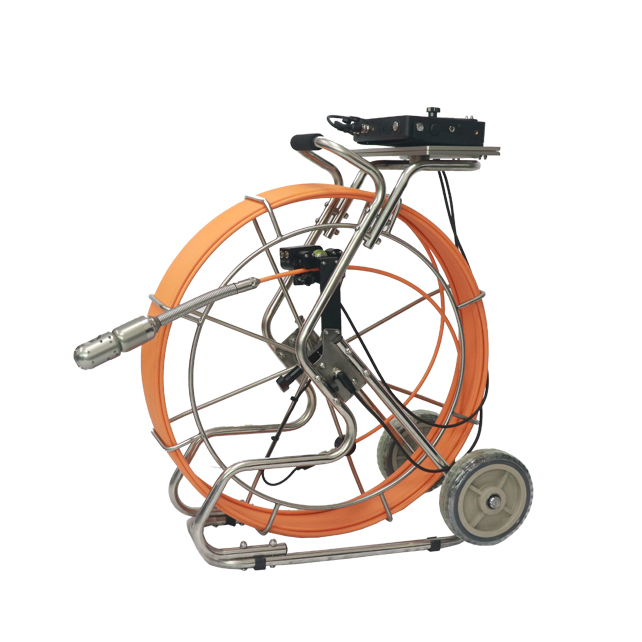

sreen folded on the tray642.jpg

* Fiberglass push rod cable

* Cable diameter ø9mm

* Cable length 60m to 150m

*Cable reel size:70*28*84cm

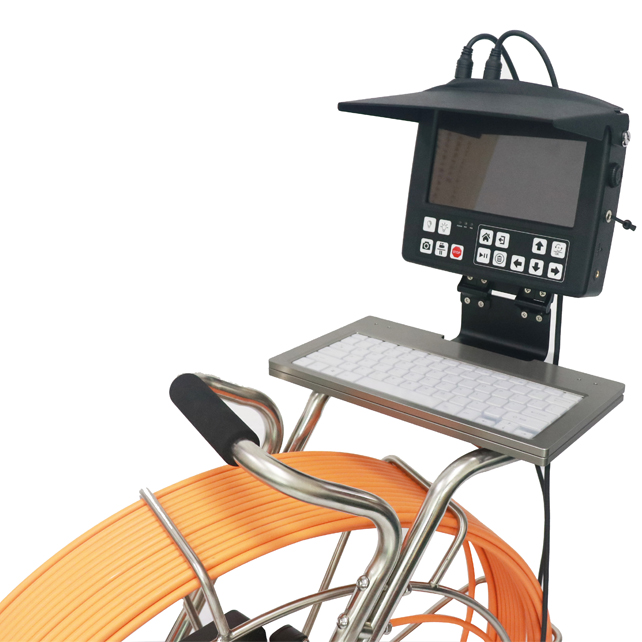

*Wheel with a tray ,so the control box and the keyboard can rotate

*Reel brake avaible

* Updated digital meter counter,error rate less than 1%

Carry Bag


*Size: 32x22x25cm

*Easy to carry

*Include:     Camera head/Control unit/Wireless keyboard/Test cable/Link cable/User   mannual

USB Bluetooth Keyboard


*QWERTY USB Bluetooth Keyboard



*8800mA li-ion battery

*AC110-240V 1.5A power charger

* Charging time 5 hours, working time 6 hours

Skids (standard configuration)

P10000PT-1 skids(85mm and 146mm).jpg



* Dia.146mm

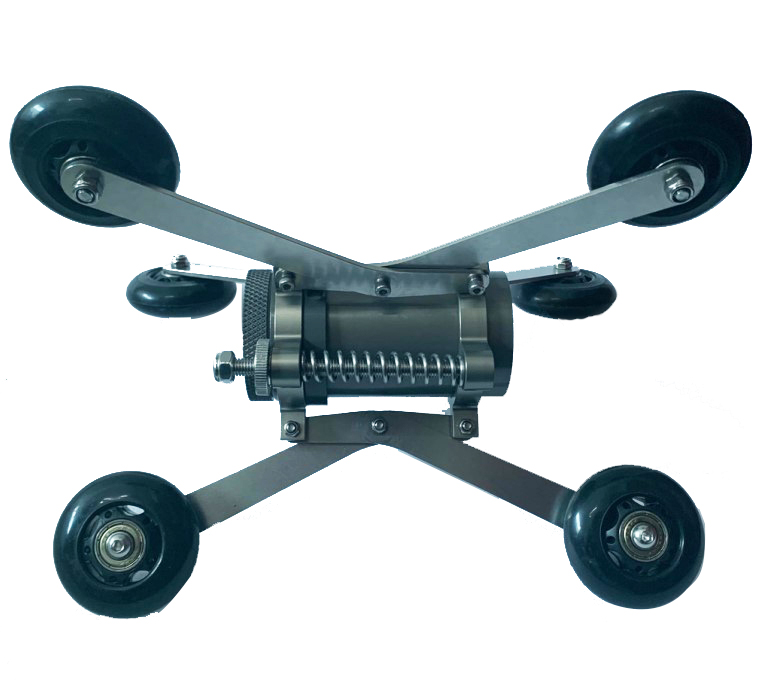

Skid1 (Extra Option)


* Material: Stainless steel

* Six wheels on this skids

* Min Diameter is 155mm                                                                                        * Max Diameter is 370mm


Skid2 (Extra Option)


*Stainless steel & nylon

* size adjustable

* Min Dia 200mm Max Dia.500mm

Skid3(Extra Option)


*Stainless steel &Nylon

*Size adjastable

* Min Dia 200mm Max Dia.450mm (optional)

Gross weight 60M 30KG  120M 36KG
Packing cartons 84.5x43.5x93cm  40X30X30cm
  • High Resolution Detachable LCD Screen Anti-Scratch and Waterproof

Anti-Scratch.png  Waterproof.png High Resolution.png

  • Each Unit with Two Pcs Packing Cartons

4 pcs packing carton -2.jpg

4 pcs packing carton -2.jpg

  • Please Download the Detail Spec:

Detail Spec of P10002PTCM-1.pdf
