Compact 1.3MP Pan and Tilt Pipe Inspection Camera System P10002PTCM

Compact 1.3MP AHD Pan and Tilt Pipe Inspection Camera System P10002PTCM


  • Wall Pipe Inspection

  • Underground Pipe Inspection and Dain Inspection

  • Other Visual Applications

P10002PTCM new 5642.jpg

  • 1.360 degree rotation camera head,pan 360º,tilt180º.

  • 2.1/3 CMOS,1.3MP.AHD camera head,waterproof up to 10bars.

  • 3.Compact and integrated DVR control unit, easy operation.

  • 4.Waterproof 8Inch display,anti-shake and work for rugged environment

  • 5.Video/audio/text recording.

  • 6.60m cable length, ∅7mm fiberglass.

  • 7.USB bluetooth,keyboard to typewrite the words.

  • 8.Camera video resolution:720P.

  • 9.Built-in 8800mA Li-ion battery, support unit working more than 6 hours.

  • 10.Digital meter-counter function, error is less than 1%

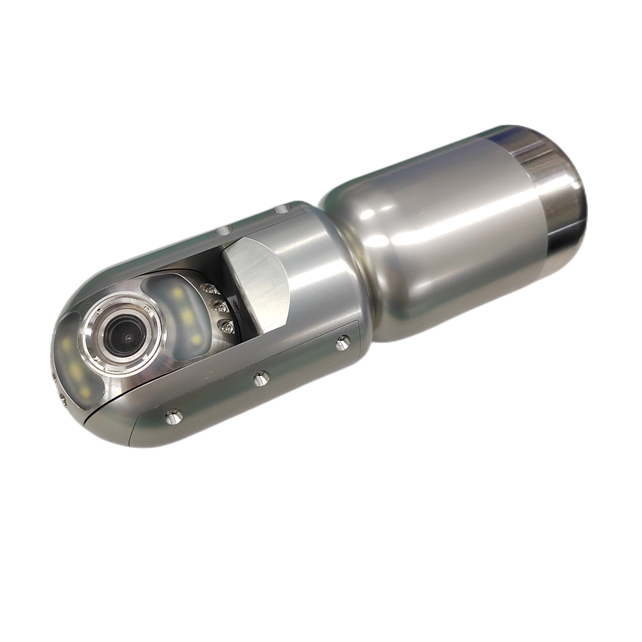

Pan &Tilt Camera



*Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP   pixel

* Waterproof IP68 up to 10 bar

* View range 120°

* Rotation: Pan 360°,Tilt 180°

* lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Detachable with pins type connection to Cable Reel

* Lens window sapphire glass

Multiple DVR &Control Panel


* 8"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model

* HD DVR SYSTEM with recording 720P video

* DVR recording system with AVI video format

* Waterproof LCD panel

* USB wireless Keyboard real time typewriting

* USB port to connect storage device ( 16G USB flash disk)

* Built-in 7000mA rechargeable Li-ion Battery Pack

* Battery level indicator

* Sunshade is included

* Box size 23x20x5cm

* AC 110V-240V 1.5A power charger

* Charging time 7 hours,working time about 4 hours

* Can fix on the cable reel, can be handhold, can hang on the   neck(optional)

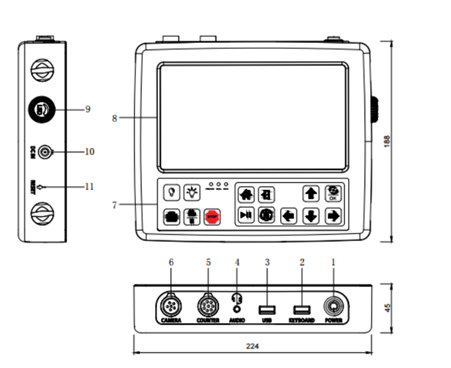

Multiple DVR Functions Instruction


1.   POWER    Press the button for 3 seconds to turn on   /off the control box
2. Keboard   Insert 2.4G wireless keyboard adapto
3.USB  Insert external USB disk to record and save the video& picture files. Please don’t remove the USB flash disk when it is recording
4.Audio   Insert the 3.5mm earphone
5.Counter  Use 8pin link cable, one port to “COUNTER” port, the other to cable reel “Meter counter port”.
6.Camera   Connect 6pin link cable to cable reel

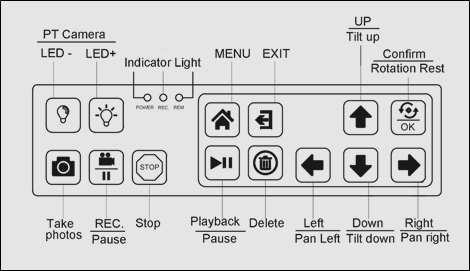

7.Control Panel  Details reference picture(1-1)
8.Monitor  8inch HD screen ,1280x720 resolution
9.Led Dimmer   Adjust 18mm,23mm,29mm,40mm and 55mm camera LED brightness
10.DC IN   Connecting extra charge adaptor
11.RESET  When the system is halted

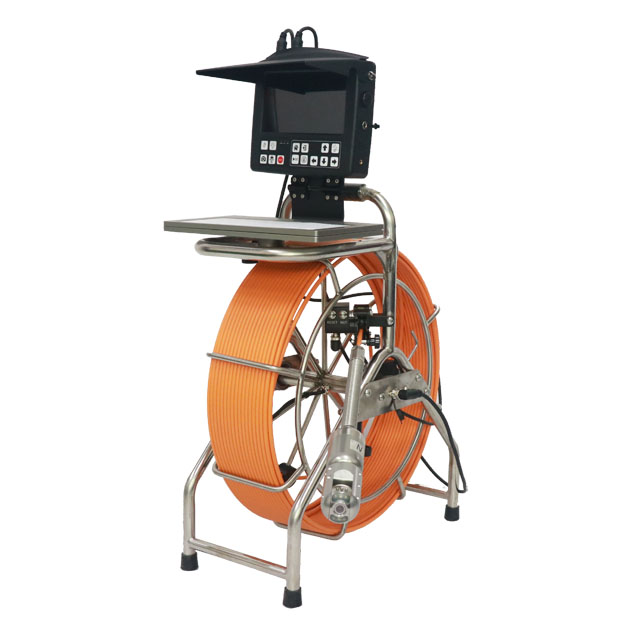

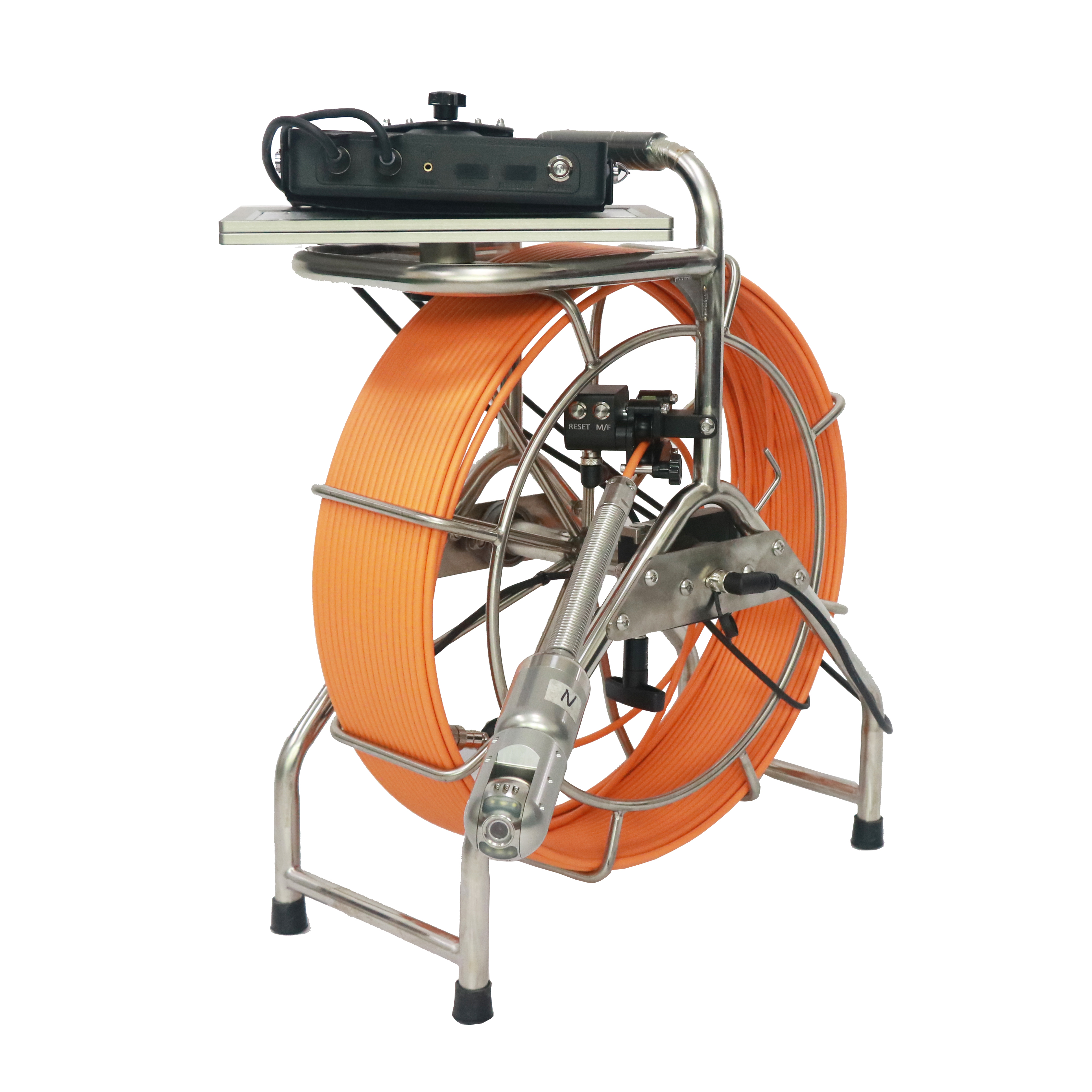

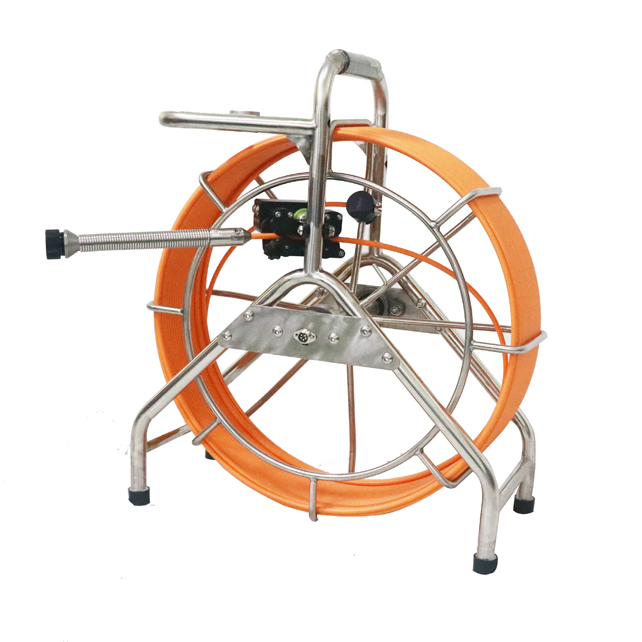

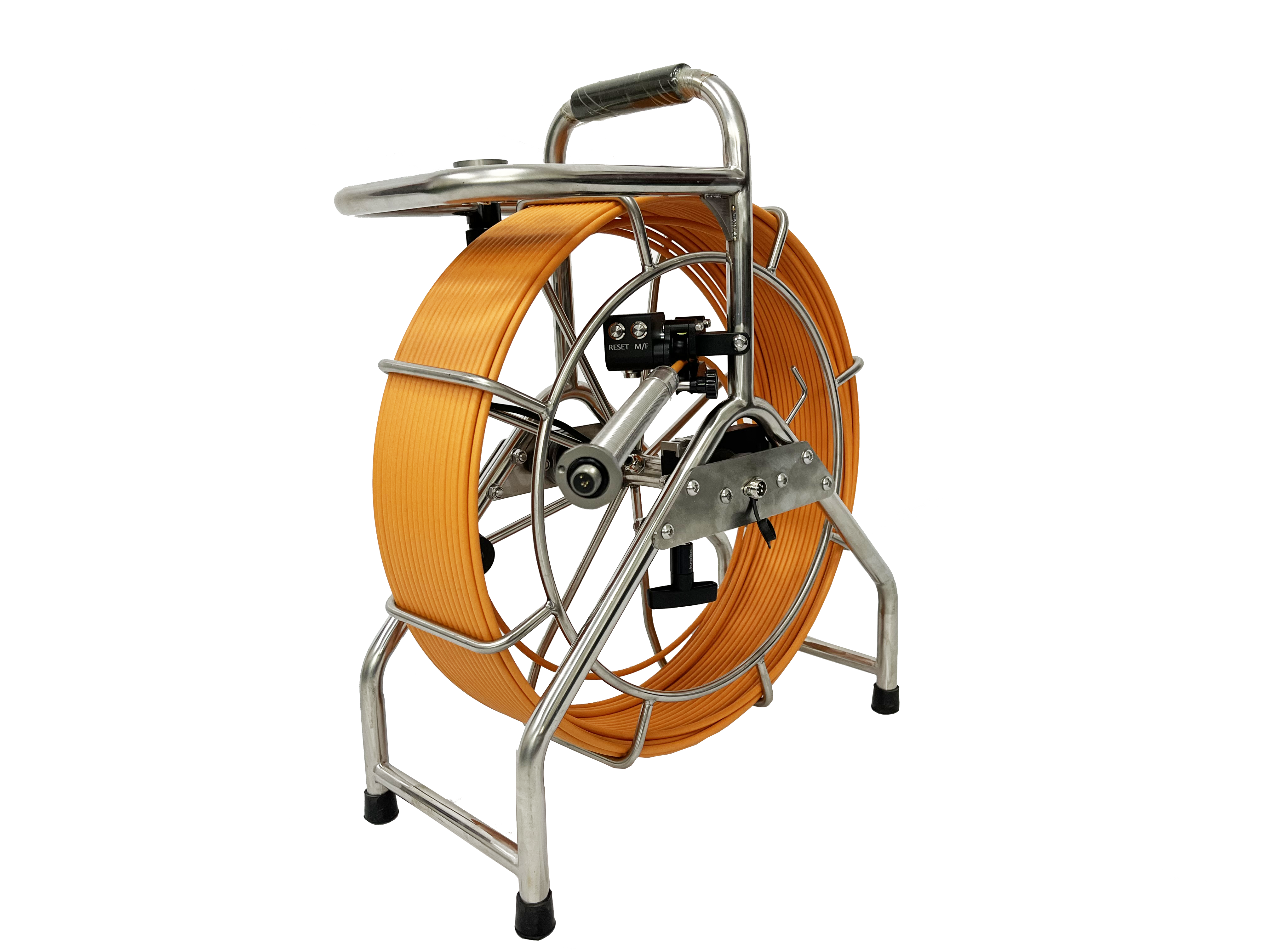

Digital Meter-counter Cable

P10002PTCM wheel with tray.png

* Fiberglass push rod cable

* Cable diameter ø7mm

* Cable length 60m

*Wheel with a tray for keyboard, so control box and keyboard can rotate

* Reel size L510 * W250 * H640mm

*Upgrade digital meter counter,error rate less than 1%

Carry Bag

image.png image.png

*Size: 32x22x25cm

*Easy to carry

*Include:     Camera head/Control unit/Wireless keyboard/Test cable/Link cable/User   mannual

USB Bluetooth Keyboard


*QWERTY USB Bluetooth Keyboard



*8800mA li-ion battery

*AC110-240V 1.5A power charger

* Charging time 5 hours, working time 6 hours

Skids (standard configuration)

P10000PT-1 skids(85mm and 146mm).jpg



* Dia.146mm

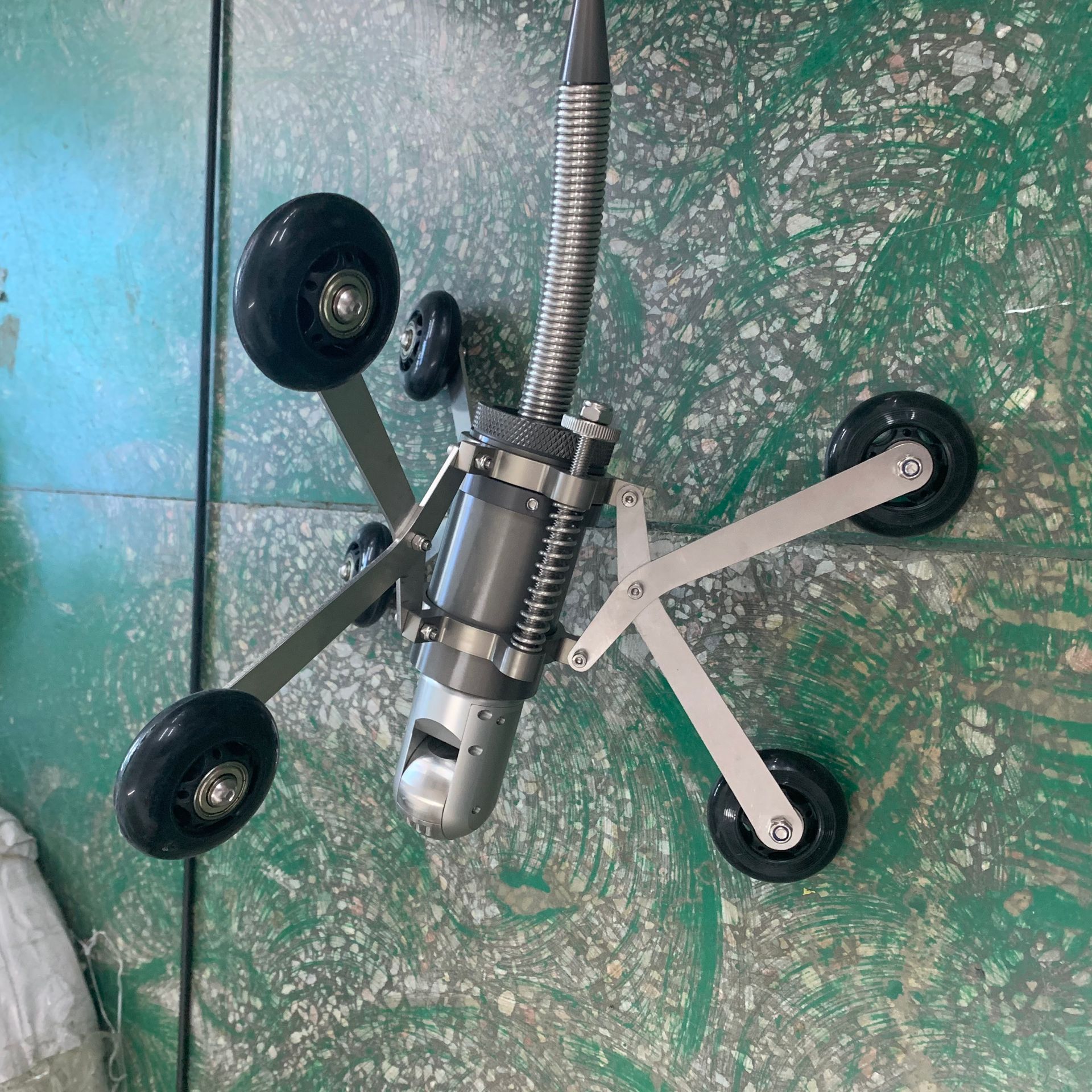

Skid1 (Extra Option)


* Material: Stainless steel

* Six wheels on this skids

* Min Diameter is 155mm                                                                                                         * Max Diameter is 370mm

Skid2(Extra   Option)


*Stainless steel & nylon                                                                                                             * size adjustable

* Min Dia 200mm Max Dia.500mm

Skid3(Extra Option)

SS skid with camera(P10000PT-1-SSK).jpg

*Stainless steel & nylon

*size adjustable

*Min Dia 200mm Max Dia.450mm (optional)

Gross weight 20KG
Packing Cartons  59*35*69cm; 40*30*30cm

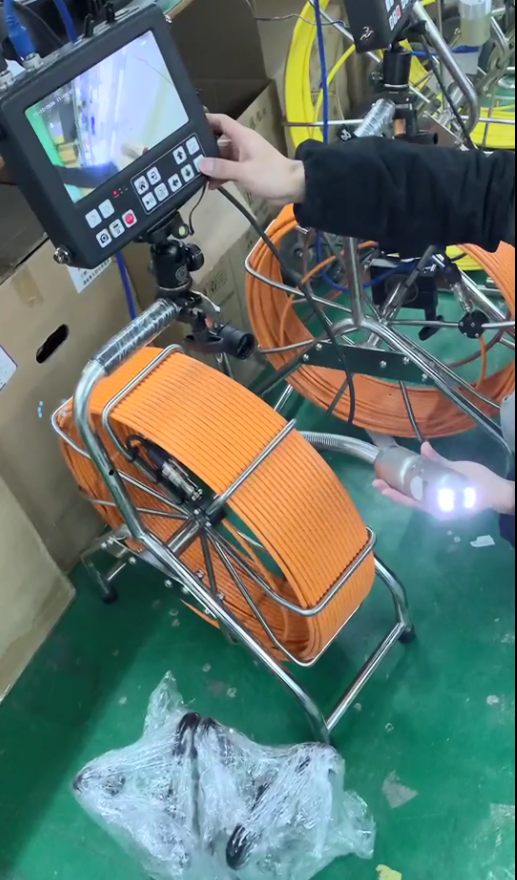

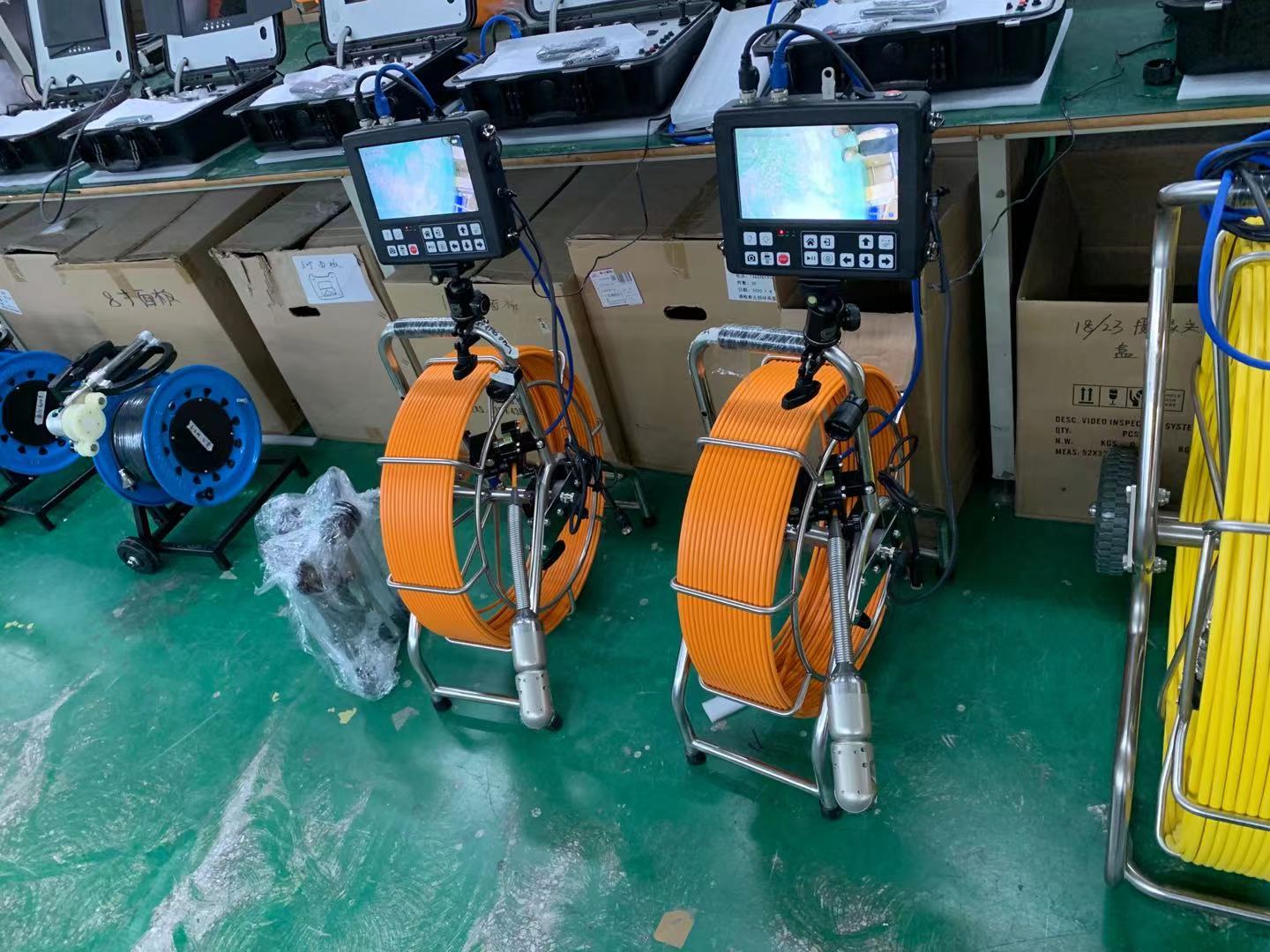

  • The Equipment Under Testing in Factory

    P10002PTCM under Testing in Factory.png

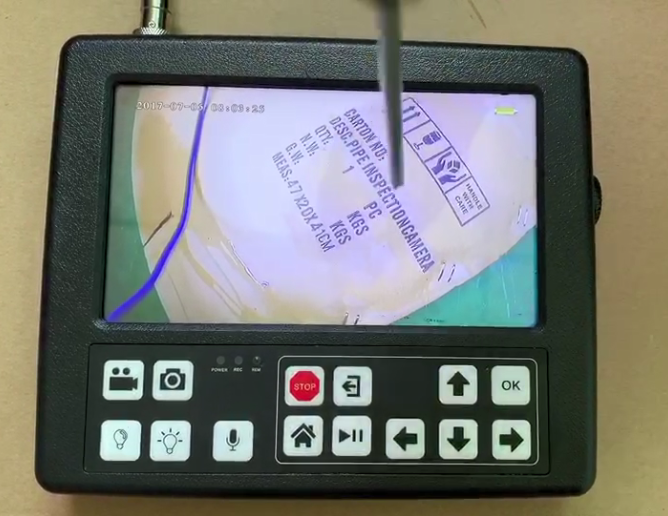

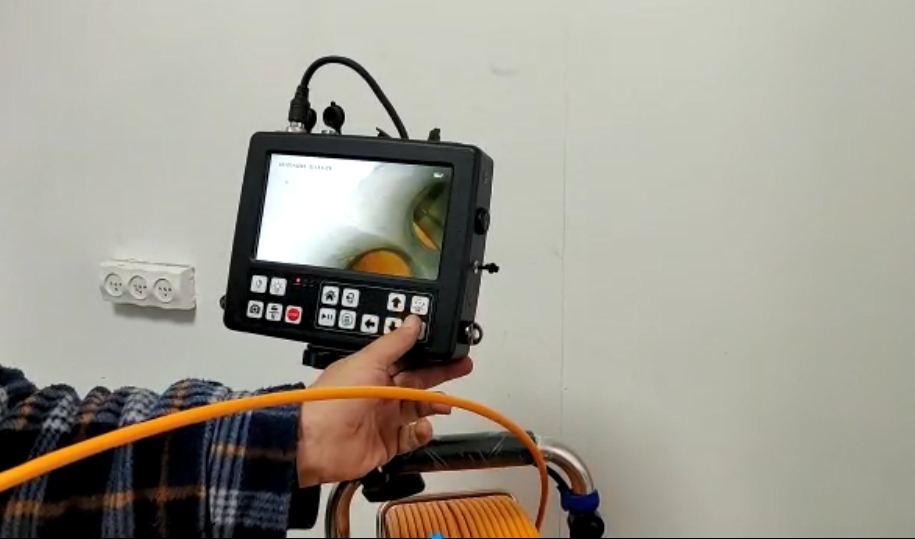

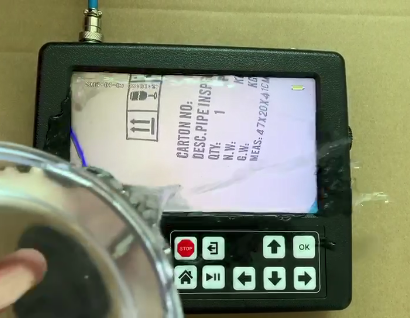

  • High Resolution LCD Screen Anti-Scratch and Waterproof

    Anti-Scratch.png Waterproof.png

    High Resolution.png

  • Each Unit with 2PCS Packing Cartons

    4 pcs packing carton -2.jpg

  • Download the Detail Spec:

Detail Spec of P10002PTCM.pdf
