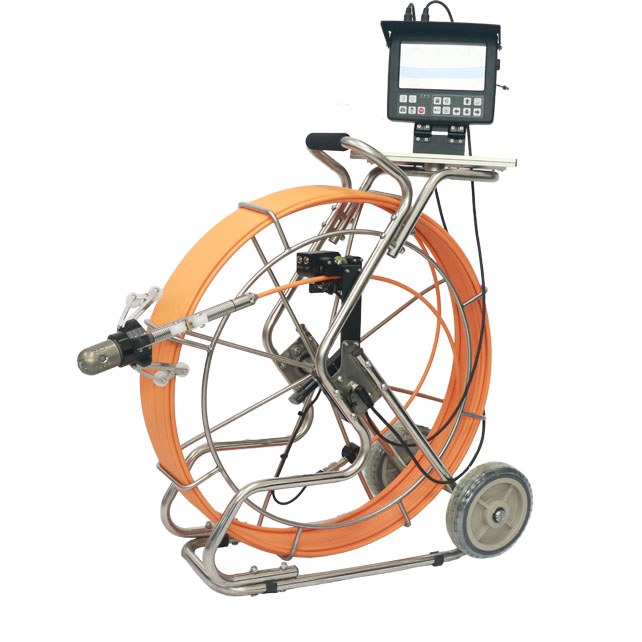

Dual Pipe Inspection Camera System P10004-Dual

Dual Pipe Inspection Camera System P10004-Dual

P10004-Dual New2642.jpg

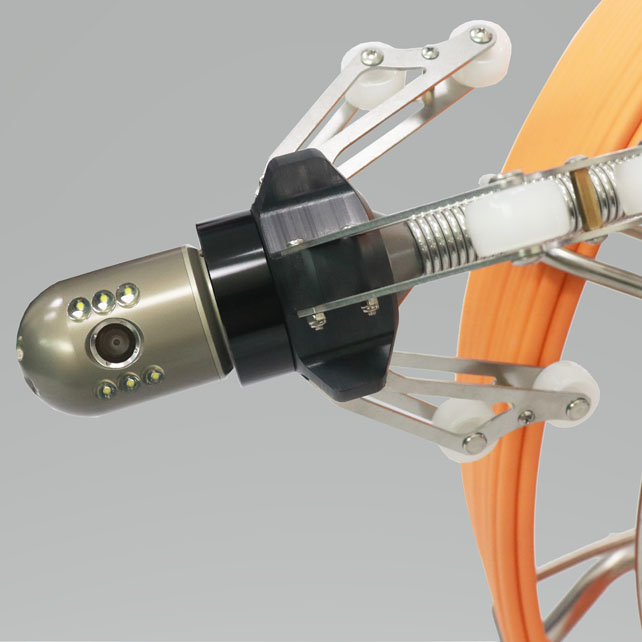

P10004-Dual Camera Detail 642.jpg

 *Camera size 45mm x 107mm, sensor 1024x768v                                               *Waterproof IP68 up to 3 bar                                                                                   *View range Horizontal:101°

 * Pan 360° rotate endless

 *6pcs high light LED (down view)

 *6pcs high light LED (side view)

 * Detachable connection to Cable Reel

 *Lens window sapphire glass

 *Built-in 512Hz transmitter optional

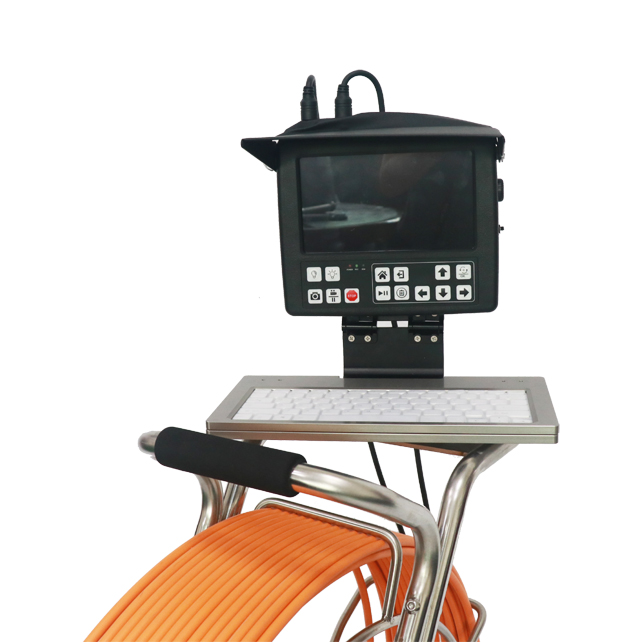

*8"HD IPS LCD Screen, 1280X720 resolution, 16:9 display model                         *HD DVR SYSTEM with recording 720P video                                                       *DVR recording system with AVI video format                                                         *Waterproof LCD panel                                                                                           *USB wireless Keyboard real time typewriting                                                       * USB port to connect storage device ( 16G USB flash disk)                                 * Built-in 7000mA rechargeable Li-ion Battery Pack

 *Battery level indicator                                                                                            * Sunshade is included

 *  Box size 23x20x5cm

 *AC 110V-240V 1.5A power charger

 *Charging time 7 hours,working time about 4 hours

 * Can fix on the cable reel, can be handhold, can hang on the neck(optional)

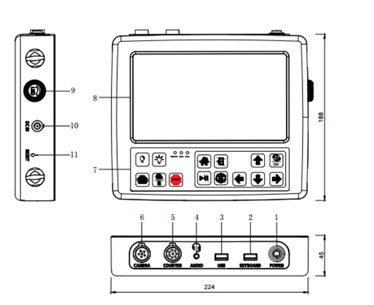

Multiple DVR Functions Instruction


1. POWER    Press the button for 3 seconds to turn on /off the control box
2. Keboard   Insert 2.4G wireless keyboard adaptor
3.USB  Insert external USB disk to record and save the video& picture files. Please don’t remove the USB flash disk when it is recording
4.Audio   Insert the 3.5mm earphone
5.Counter  Use 8pin link cable, one port to “COUNTER” port, the other to cable reel “Meter counter port”.
6.Camera   Connect 6pin link cable to cable reel

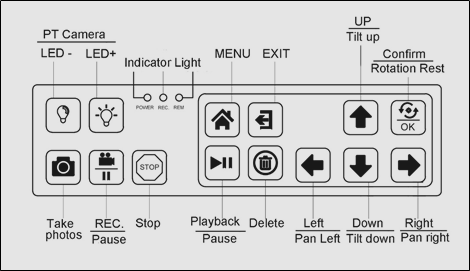

7.Control Panel  Details reference picture(1-1)
8.Monitor  8inch HD screen ,1280x720 resolution
9.Led Dimmer   Adjust 18mm,23mm,29mm,40mm and 55mm camera LED brightness
10 Connecting extra charge adaptor
11.RESET  When the system is halted

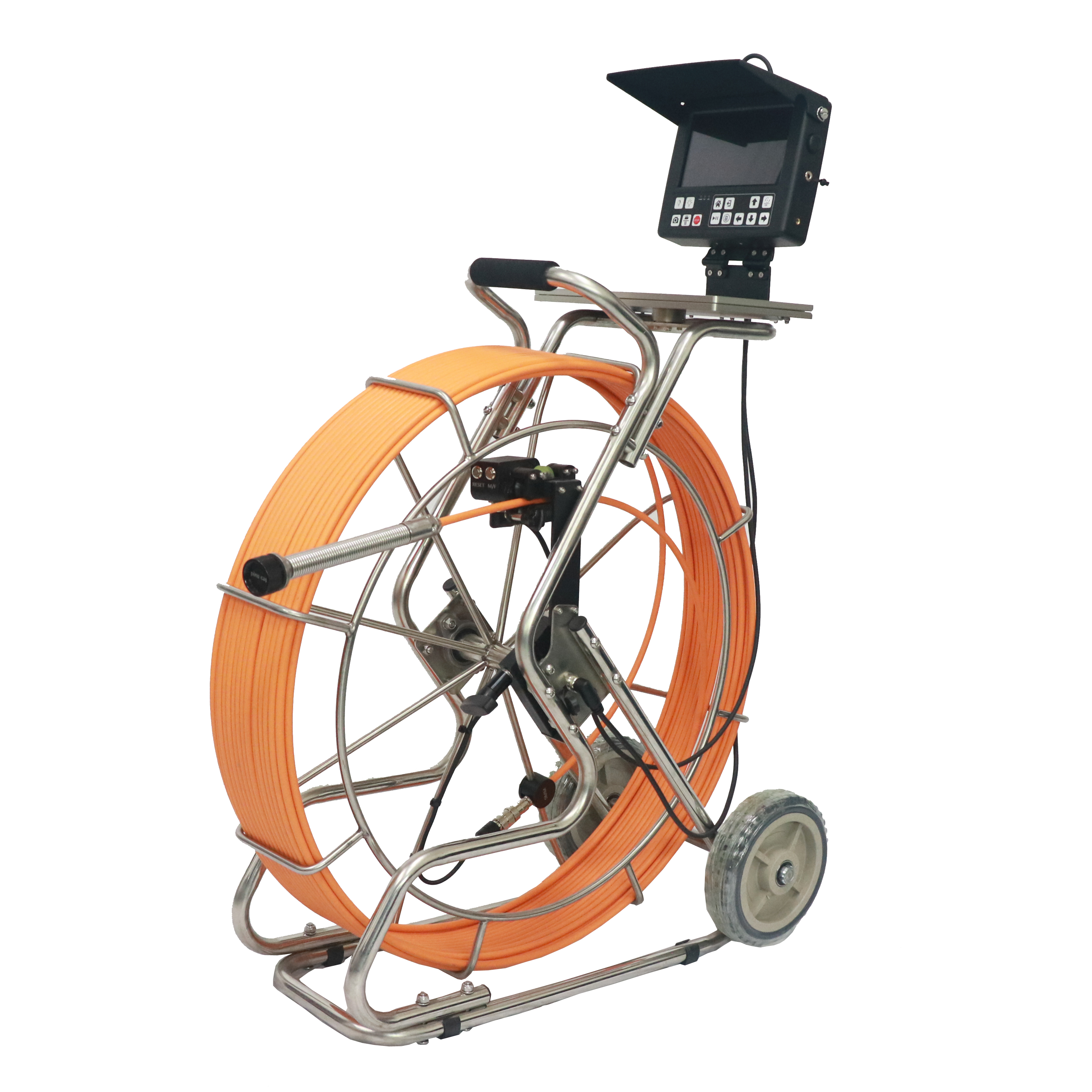

P10004-Dual wheel with tray642.jpg

* Fiberglass coaxial push rod cable, it can make   good camera

   image   for long cable

* Cable diameter ø9mm

* Cable length 60m

* Wheel with tray, keyboard and control box can rotate

* Reel size L510 * W250 * H640mm

* Digital meter counter function, error is less   than 1%

image.png image.png

*Size: 32x22x25cm

*Easy to carry                                                                                                        *Include:  Camera head/Control unit/Wireless keyboard/Test cable/Link cable/User mannual

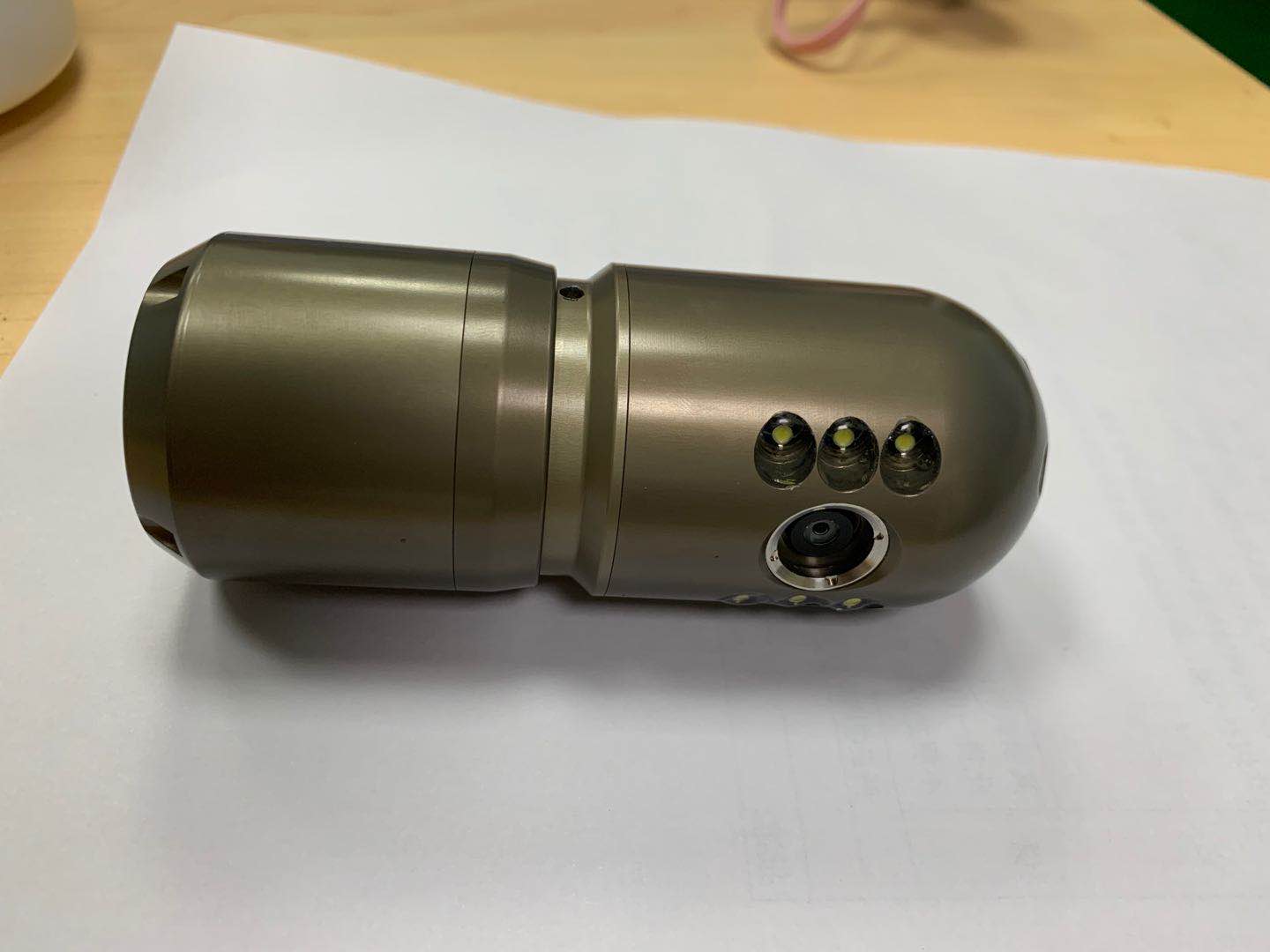

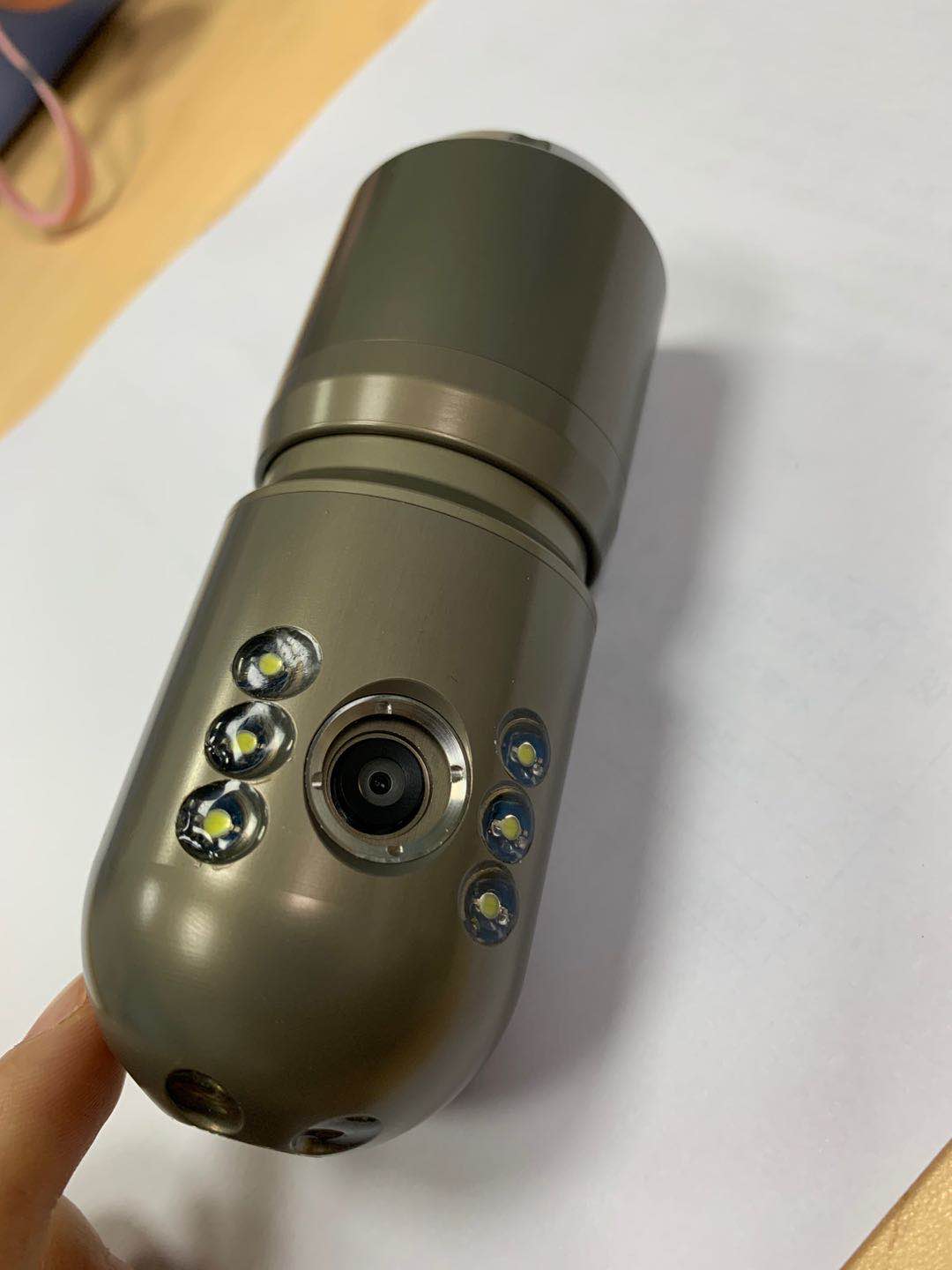

  • One More Pictures for the Camera Head

    camera head3.jpg camera head2.jpg

  • Weight and the Packing Cartons Demensions

Total weight: 36KG

Packing carton size: Packing carton size: 84.5 X 43.5 X 93CM, 48.5 X 21.5X42.5CM

  • Please Download the Detail Spec as Follows:

Detail Spec of Dual Pipe Inspection Camera system Spec P10004-Dual.pdf
