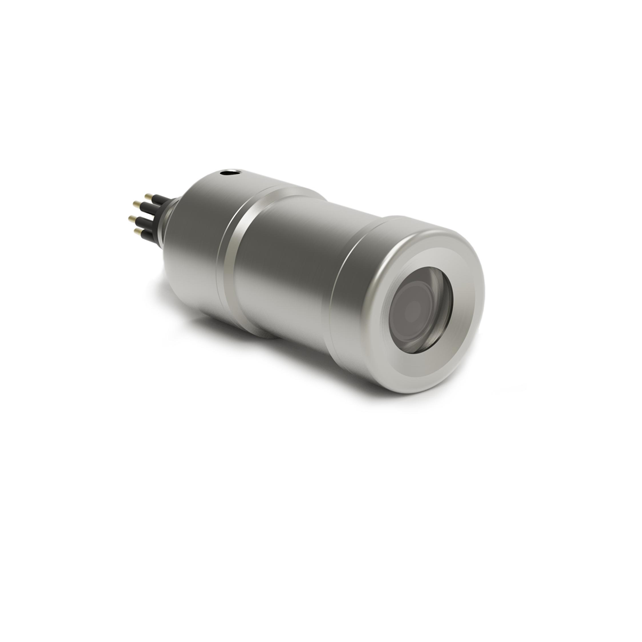

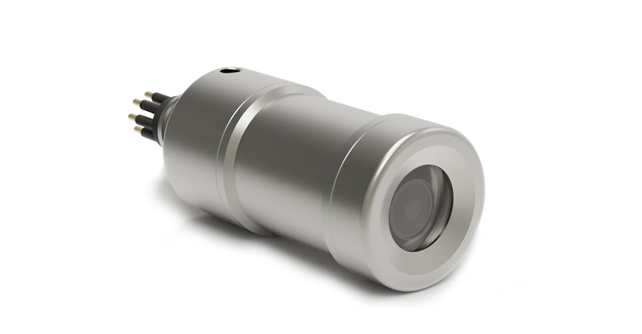

Mini HD subsea video camera for ROV operation D10014
D10014 Mini HD subsea video camera for ROV operation
Applications:
ROV and other underwater vehicles
Hydraulic system survey
Underwater videography system
Monitoring underwater
Salmon pen net inspection
Seawater and freshwater research
Field biologist for field work and field trip
All other underwater or land visual applications
Detail spec of the D10014
| Camera head dimension | Ф40mm*50mm(L) |
| Lens |
2.8mm(H/V:85°) |
| Resolution | 2MP 1920*1080P 30FPS |
| Built-in light | No |
| Image color | Full color |
| Support device | PC/NVR |
| Support protocol | IPv4/IPv6/802.1X,RTSP,RTMP,ONVIF,HTTP,HTTPS,TCP/IP, |
| UDP,RTP,RTCP,UPNP,RTSP,SMTP,NTP,DHCP,DNS, | |
| PPPOE,DDNS,FTP,SDK secondary development kit | |
| Camera housing |
Titaniun |
| Waterproof | IP68,Fix under seawater permanently |
| Seawater depth | 3000M max |
| Camera end | 8pins water tight joint |
| Application | Seawater/freshwater/land/vessel/boat/vehicle |
| Working humidity | 0%-100% |
| Working temperature | -20 ℃-50℃ |
| Power supply | DC24V |
| Net weight | 0.5KG |
| Packing list | 1*camera head |
| 1*USB(for software and manual instruction) |
Please kindly download the detail spec from the link as follows:
Product Downloads
