HD CCTV Sewer Inspeciton Camera System 3188DH

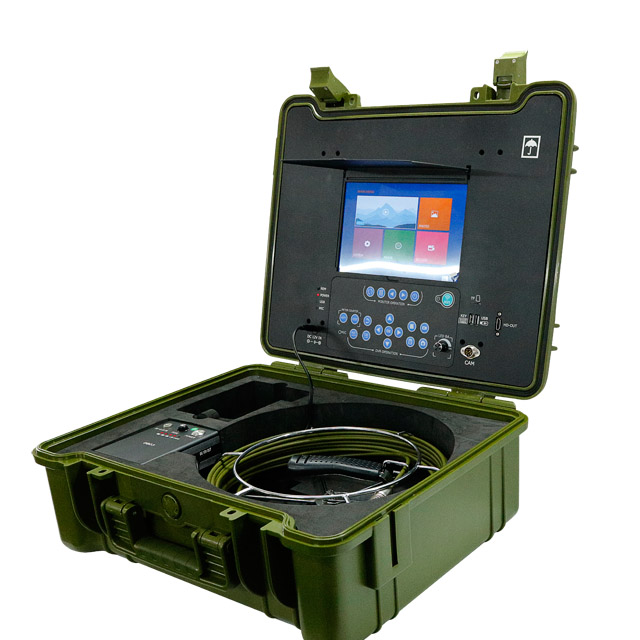

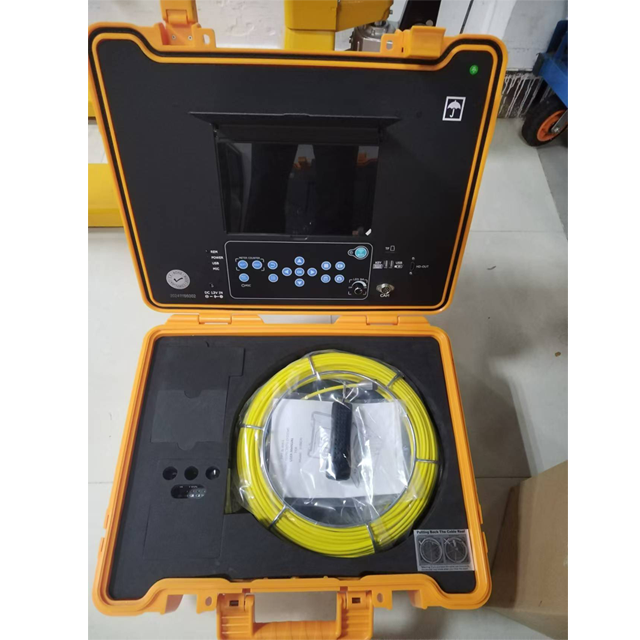

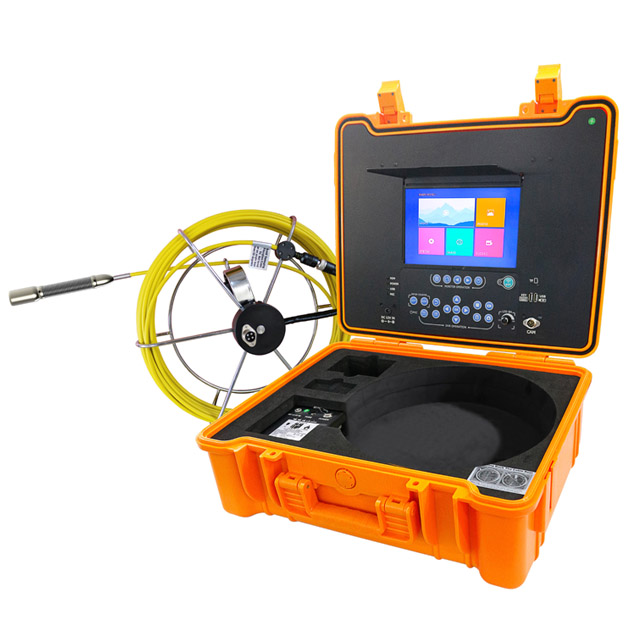

HD CCTV Sewer Inspection Camera System 3188DH
Applications:
Sewer /drain/underground pipe inspection
Kitchen sink inspection
Tank interior view
Municipal projects
Underground civil infrastructure projects service
All other surface visual applications
Detail spec of the HD CCTV sewer inspection camera system 3188DH
|
1080P full HD camera head | |
| Camera head dimension | Φ23mm |
| Self-level function | Yes |
| Built-in FM512Hz sonde | Yes |
| Sensor | 1/3 inch CMOS |
| Resolution | 1920(H)*1080(V) |
| Focus lens | 10cm |
| White balance | Automatic |
| Gain balance | Automatic |
| Illumination | Built-in 9pcs led lights |
| Signal to noise ratio | ≥52dB(AGC,OFF) |
| Video output | 1.0Vp-p/75R |
| Input Voltage | DC3.3V-5V |
| Current comsumption | 110mA |
| Frame Rate | 30FPS/25FPS |
| Centering skid | Φ45mm white POM skids |
| Cable wheel | |
| Push rod thickness | Φ5.2mm |
| Cable length | 20M/30M/40M |
| Digital meter-counter | Yes |
| Suitcase and DVR | |
| Screen | 10.1"LCD |
| Video/audio recording | H.264 |
| Storage | TF card and USB disk/Support 256G max |
| DVR | HD |
| OSD Language | English/Chinese/French/Spanish/German/Polish/German/Korean/Italian/Turkish/Russian |
| Built-in battery |
12V 6600MAH/Rechargeable |
| Charger | AC110V-240V/DC13.5A-1.7A |

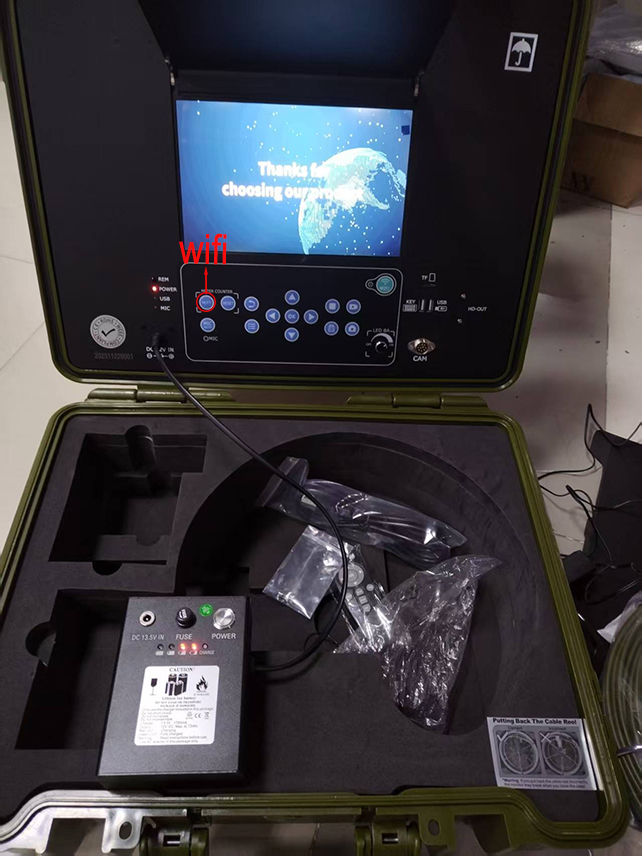

| Wifi function | Phone can view the video |
More details about the specification and the manual instruction please feel free contact us.
