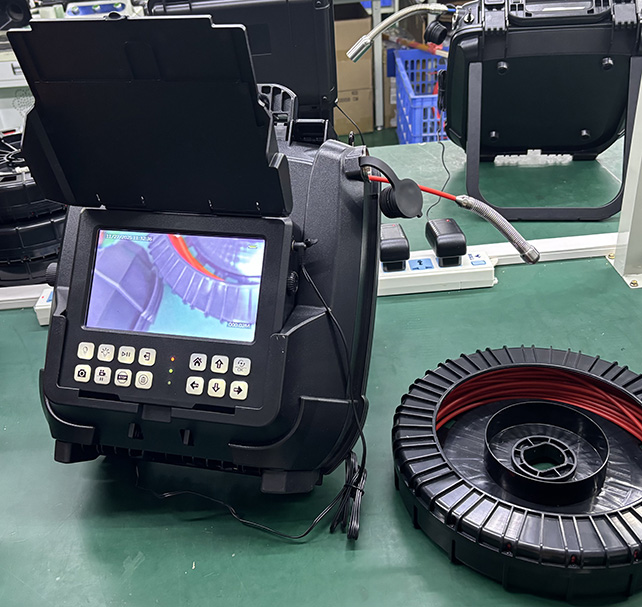

Mini HD Pipe Inspection Camera System
Mini HD Pipe Inspeciton Camera System PSE10020
Application:
Buried pipe wall inspection
Kitchen sink inspection
WC bathroom inspection
Buried utility project inspection
Turbine inspection
Stormwater and sewer pipe inspection
All the other visual applications
Detail spec of the PSE10020
| HD Mini Cammera head | |
| Head dimension |
Φ20mm*26.5mm(L);1080P full HD |
| Spring length | 133.5mm |
| Sonde(Option) | Built-in FM512Hz sonde |
| Work pipe |
Φ30mm-Φ100mm pipe |
| Sensor |
HD moduel,1/3"cmos,2MP resolution |
| View angle |
90° |
| Illumination |
Built-in 6pcs white light led lights.Dimness available. |
| Waterproof |
IP68 |
| Camera guide |
Φ30mm and Φ50mm skids |
| HD DVR | |
| DVR |

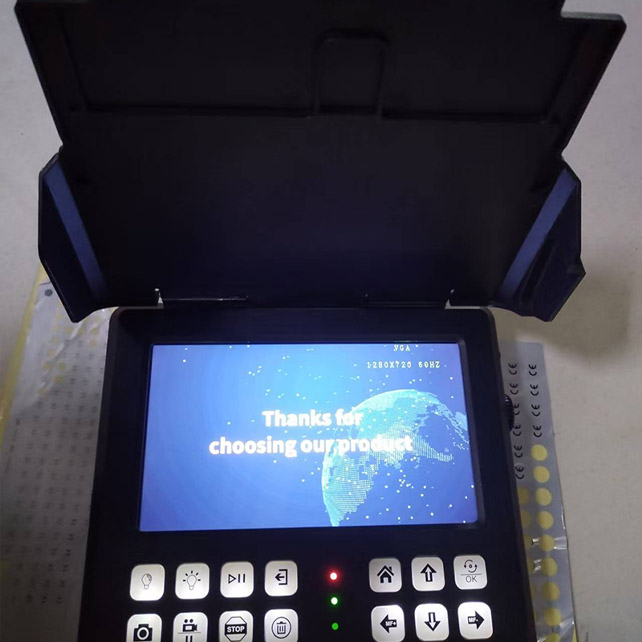

HD DVR with 8" screen |
| Video format | HD MP4 |
| Recording | Video/audio recording;Photography |
| Photography | Photography capture |
| File | Rename file function |
| Distance | On-screen |
| Panel |
Nigh vision and waterproof |
| Screen |
8" with 1280*720 resolution |
| Built-in battery |
6800mA rechargeable battery and 6 hours run-time |
| Push rod cable wheel | |
| Rod thickness | Φ6mm/red color |
| Length |
20m/30m/35m |
| Cable reel size |
Φ310mm*63.5mm(H) |
| Remove cable | Cable reel can removeable from the body |
| More option for head | |
| Option#1 | With extra Φ18mm common camera head |
| Option#2 |
With extra AHDΦ23mm self-level camera head |
| Option#3 | With extra AHDΦ23mm built-in sonde camera head |
| Option#4 | With extra AHDΦ29mm self-level camera head |
| Option#5 | With extraΦ14mm common camera head+extra cable reel,easy replacement |
| Option#6 | With extraΦPT33 head+complete wheel pack, easy replacement |
