HD Compact CCTV Pipe Video Camera System
HD Compact CCTV Pipe Video Camera System P10001-U
Application:
Underground pipe wall inspection
Wasterwater and stormwater inspection
Kitchen sink inspection
WC Bathroom survey
Tank interior view
Boiler and HRSG inspection
Turbine inspection
Buried utility visual
Underground civil infrastructure inspection
All other visual applications
|

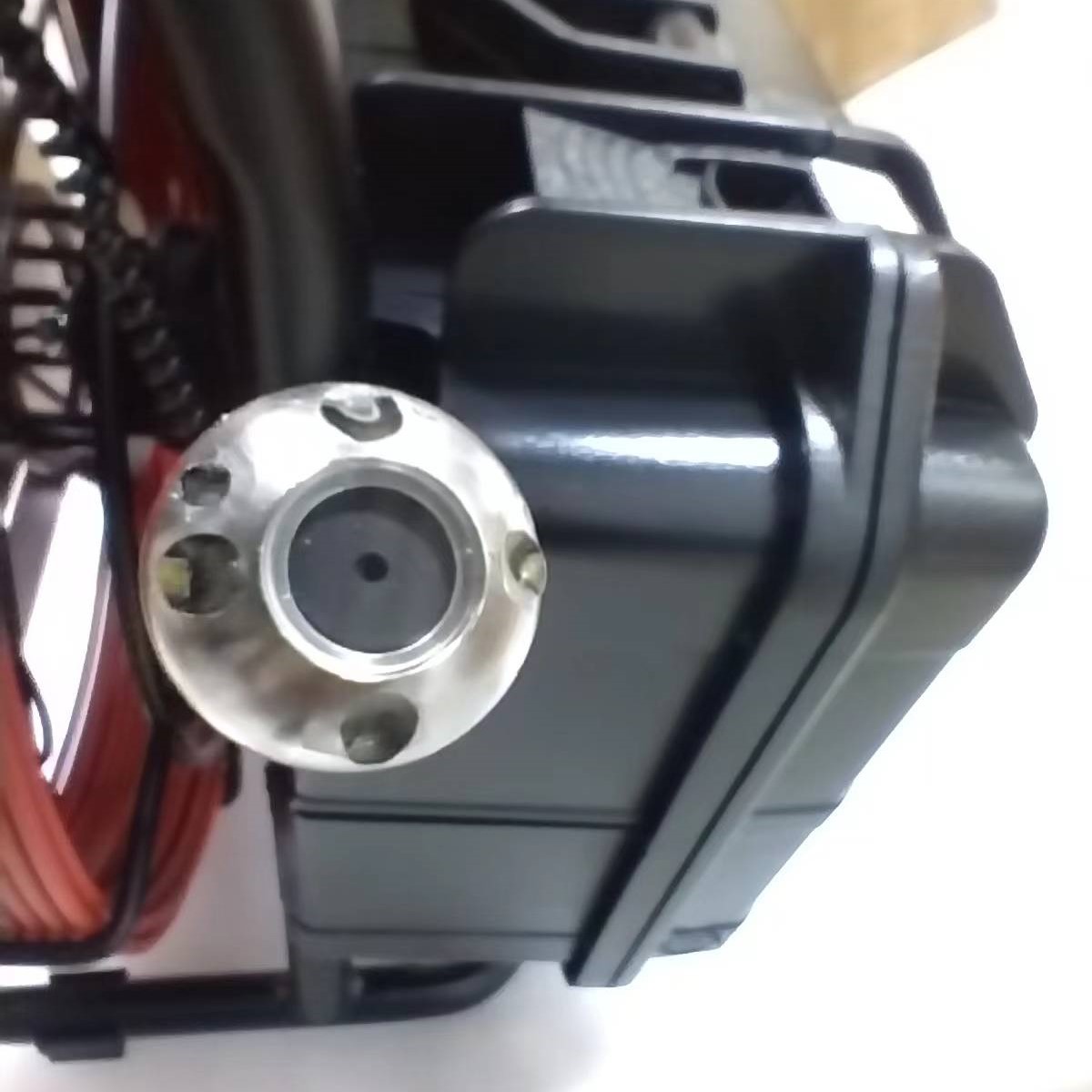

Detail spec: Note:Φ18mm head can go 90°bend on DN32mm pipe. | ||
| Mini Camera | Φ14mm | HD Φ18mm |
| Head dimension | Φ14mm*21mm(L) main body | Φ14mm*29mm(L) main body |
| Length | 125cm | 135cm |
| Sensor | 1/4"CMOS | 1/3"CMOS |
| Resolution | 648*488 | AHD 1920*1080 |
| View angle | 90°（diagonal） | 130°（diagonal） |
| Focus distance | 6-8cm(approx) | 6cm(approx) |
| Depth of field | 20cm(approx) | 10cm(approx) |
| Lens Window | Saphhire glass | Saphhire glass |
| Housing | #304 stainless steel | #304 stainless steel |
Illumination(dimness) |
Built-in 15pcs white led lights | Built-in 15pcs white led lights |
| Built-in sonde(Option) | FM512Hz sonde | FM512Hz sonde |
| Waterprood | IP68 | IP68 |
| Water depth | Fresh water:20M max | Fresh water:20M max |
| Power supply | DC9V-15V | DC9V-15V |
| Current consume | 40mA(Led on)-60mA(Led off) | 55mA(Led on)-110mA(led off) |
|

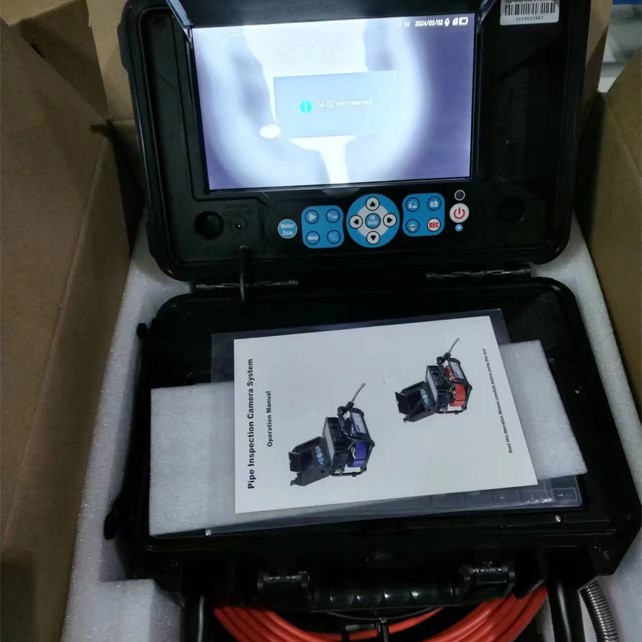

Surface Control Unit | ||
| Video Resolution | AHD 1080P/CVBS D1 | |
| Video encoding | High resolution/H.264 | |
| Photograph resolution | 1920*1080 | |
| Image | Support image rotation | |
| Audio recording | Support local audio recording | |
| External memory | SD card (16G max) | |
| Play back | Video and photo | |
|
OSD Languages |
English/Chinese/Japanese/Korean/Russian/German/French/Italian/Spanish/ | |
| Portuguese/Thai/Finnish/Swedish/ | ||
| 10.1''screen | Bright high definition color LCD screen | |
| Screen resolution | 1024*600 LCD | |
| Power supply | DC12V input | |
| Curren consume | 800mA max | |
| Battery capacity | 7.2V 6400mA rechargeable li-ion battery | |
| Working time | 6-7 hours | |
| Charging time | 10 hours | |
| ABS carry case | Black color and deimension 380mm(L)260mm(W)150mm(H) | |
|

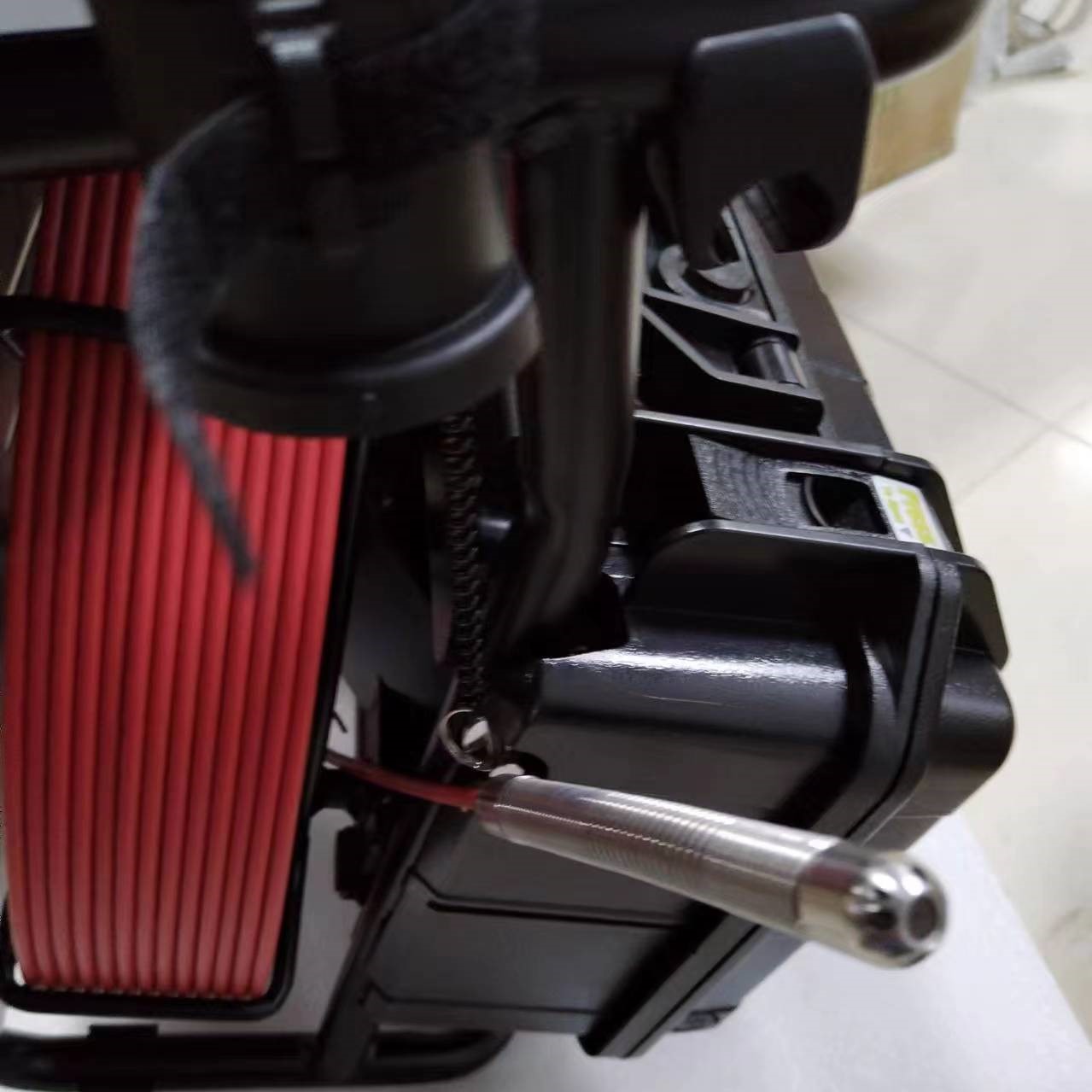

Hidden cable wheel | ||
| Digital meter-counter | On-screen | |
| Precision of meter | 10cm+0.5%(max) |
|
| Meter and ft |
Meter/foot/off | |
| Push rod thickness |
Φ4.8mm fiberglass rod,red color | |
| Cable length | 10M/30M/40M/50M/60M | |
|
Text recording | ||
| Typing language | English | |
| Max pages |
9 Pages | |
| Characters per pages |
500 letters max | |
| Hide character |
Quick one key hiding | |
| Keyboard compatibility |
Specific PC wireless keyboard |
|
