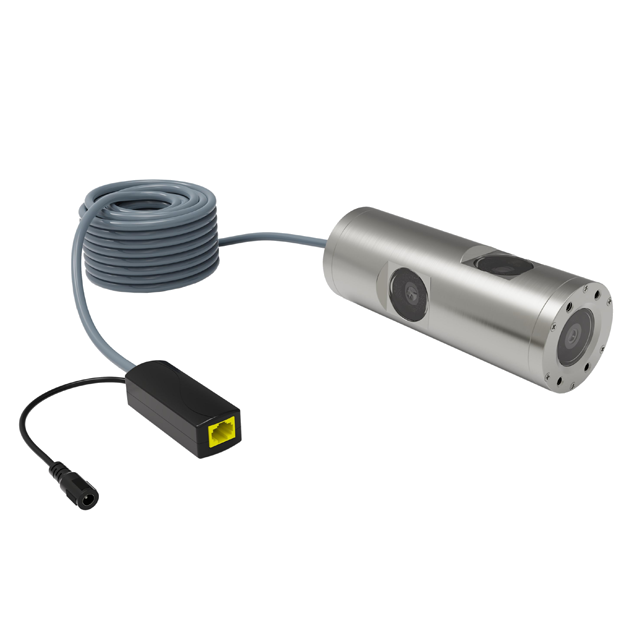

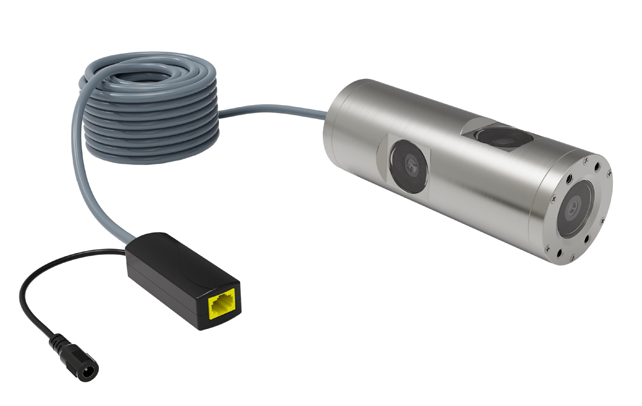

5 Lens in 1 camera housing Submersible Video Camera
5 Lens in 1 camera housing Submersible Video Camera
Application:
Salmon fish monitoring
Fish farm inspection
Fish pen net inspection
Subsea drilling and ROV operations
Aquaculture industry
Hydrologoical inspeciton
All other subsea visual applications.
Detail spec of the DZ10010-SS-5ESU
| Camera dimension |
Φ70mm*190mm |
| Lens |
2,8mm(F.O.V:95°) |
| Lens quality |
Side lens: 4pcs. Down lens: 1pcs |
| Sensor |
1/1.8" sony cmos sensor, color 0.001Lux,F1.2 black/white 0.0001Lux |
| Resolution |
2MP, 1920*1080P,50FPS |
| Camera housing |
316L stainless steel ,anti-corrosion |
| Waterproof |
IP68 |
| Water pressure resistance |
aMximum 500Kpa,(seawater deppth 50M) |
| Built-in light |
Built-in 15pcs led lights in total/ |
| Built-in light control | Automatic light sensor control/mannual control/time control |
| Image color |
White light-full color |
| Cable |
10M-80M cable,Φ7mm . Resistance to 60KG pulling.Anti-aging,anti-corossion. |
| Supporting device |
Support IOS/Android /NVR system.Compatible with HaiKang,Dahua,(Only |
| support Windows IE broswer for camera internet parameter settings) | |
| Supporting agreement |
IPv4/IPv6,802.1X RTSP,RTMP,ONVIF,HTTP,HTTPS,TCP/IP,UDP,RTP,RTCP,UPNP, |
| RTSP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,SDK(secondary development kit) |
|
| Use Environment |
Fresh water/ seawater |
| Working temperature |
-20℃-50℃ |
| Power supply |
DC24V 2A |
| Net weight | 2.5KG |
Download the detail spec of the DZ10010-SS-5ESU
DZ10010-SS -5ESU with Suitcase P-SC02.pdf
