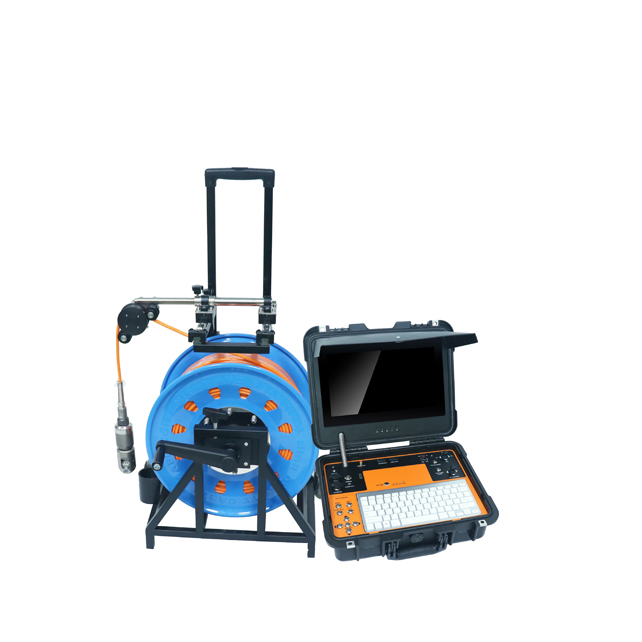

360° Rotation and 100M Water Depth Borehole Inspection Camera System

360° Rotation and 100M Water Depth Borehole Inspection Camera System D10000PT

Application:

Advantage:

360 degree rotation camera head, Pan 360°，Tilt 180°
1/3 CMOS,1.3MP pilex HD camera head, waterproof up to 10 bars
13inch IPS LCD Screen. 1280*720 resolution
HD DVR with auido/video recording function
Dia.7mm coxial part cable that make the high quality video transmitter in long distance
USB bluetooth wireless keyboard to text recording
Rechargeable built-in li-ion battery support more than 6 hours working continuously
Digital meter-counter,error is less than 1%

Detail spec

Camera head

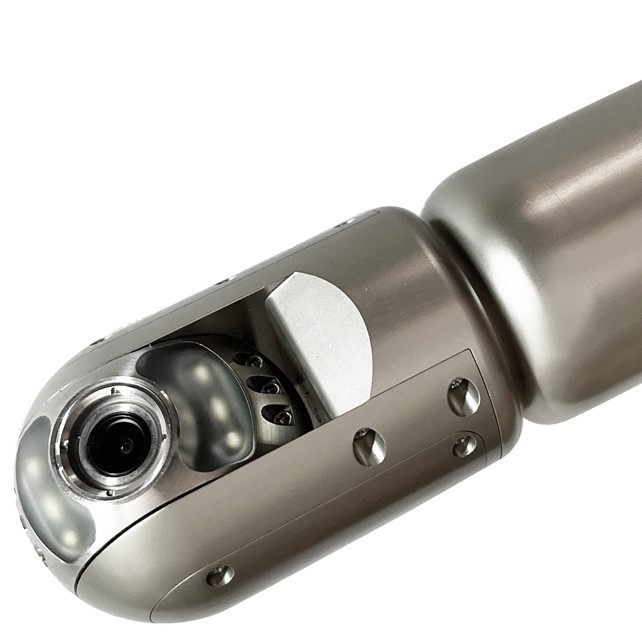

1.Φ50mm 360° rotation camera. Pan:360° Tilt:180°。 View angle: 120°。

2.1/3" CMOS,1.3MP resolution.Lens position automatic reset.

3.Built-in 6 pcs led lights.PC LED cover ,leakproofness better.

4.Stianless steel camera housing and lens with saphhire glass window

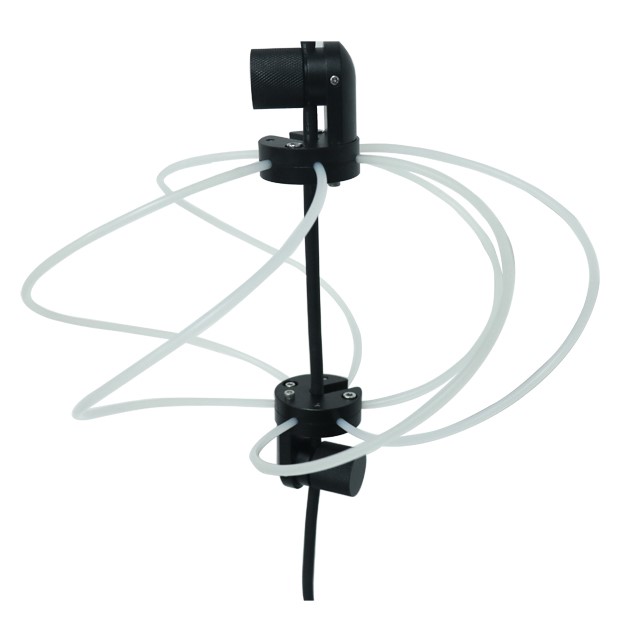

5.Adjustable center skid,Ф280mm(max). Plasticl&Nylon material.

Hand Cable wheel

1.Φ7mm coxial part flexible cable

2.Length: 100M -200M

3.Reel dimension: 70cm*28cm*84cm

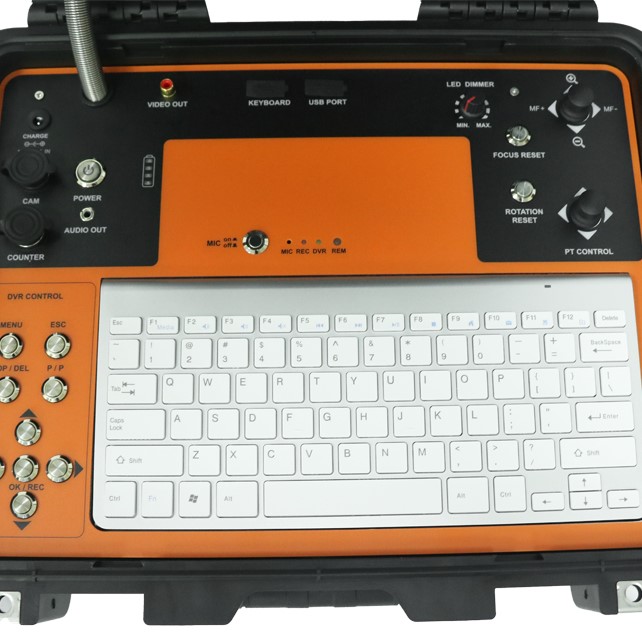

Surface console

1.13inch IPS lCD screen, 1280*720 resolution. 16:9 display model. Sunshade in includeed

2. 2 pcs Joysticks. One to operate the movement of the camera, the other operate the mannual focus

3.HD DVR video/audio recording and AVI format

4.USB blue tooth keyboard real time typewritting.

5.USB port for 16G USB flash disk

6.Rechargeable li-ion batter support 5hourse working continuously. Charging time: 8 hours.

7.Battery level indication

8.Power supply: AV110V-240V, 1.5A power charger.

9. ABS suitcase dimension: 42cm*33cm*15cm

Gross weight: 17kg

Two pcs packing cartons:60cm*41cm*74cm;48.5cm*21.5cm*42.5cm

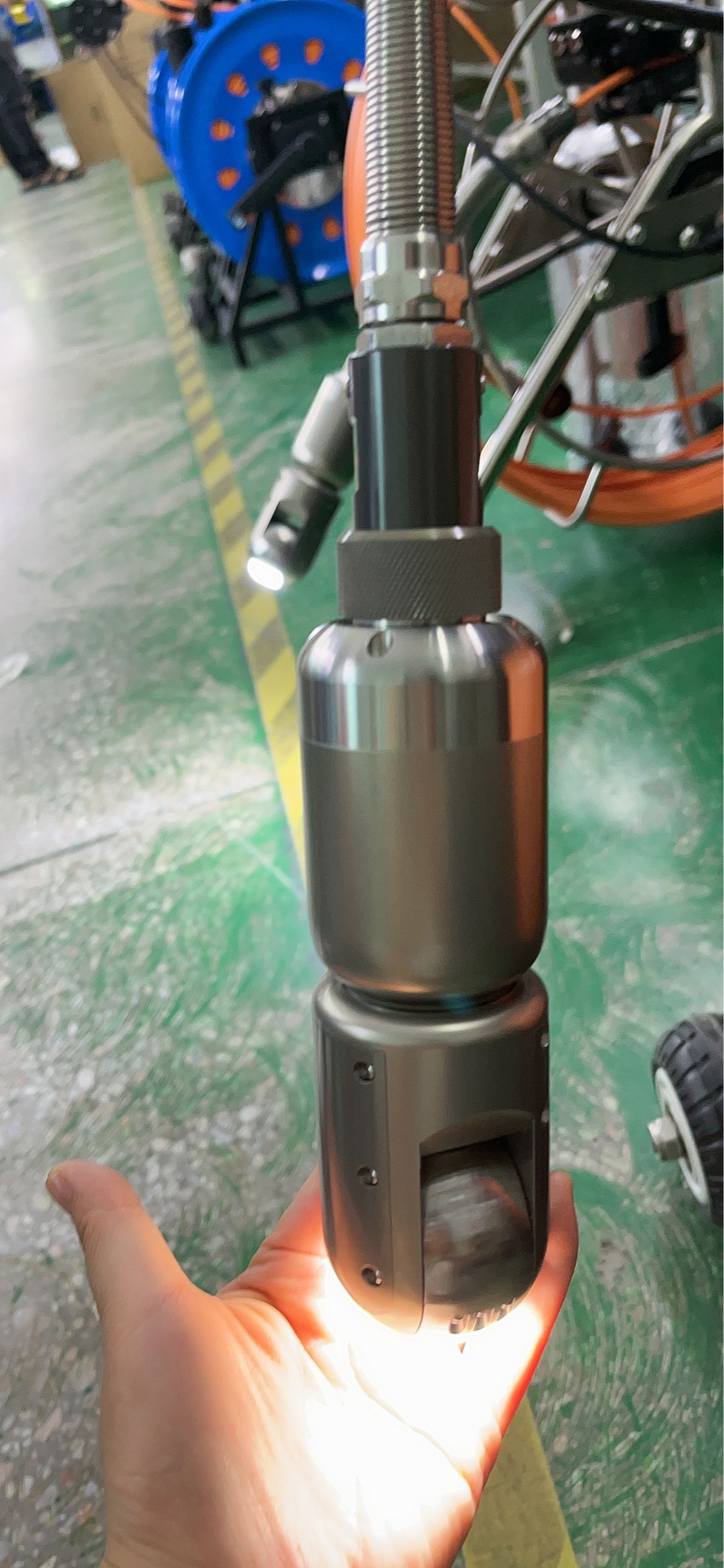

More detail pictures:

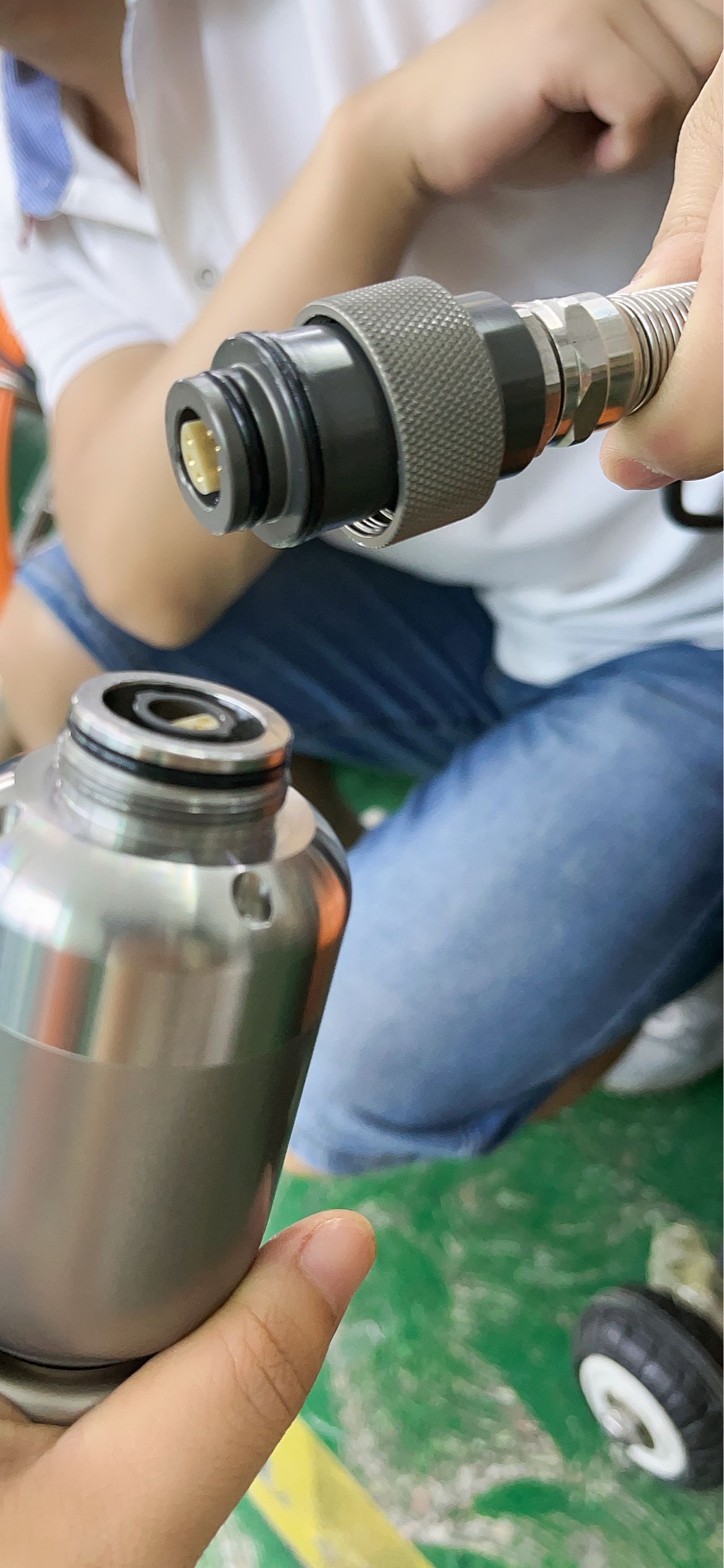

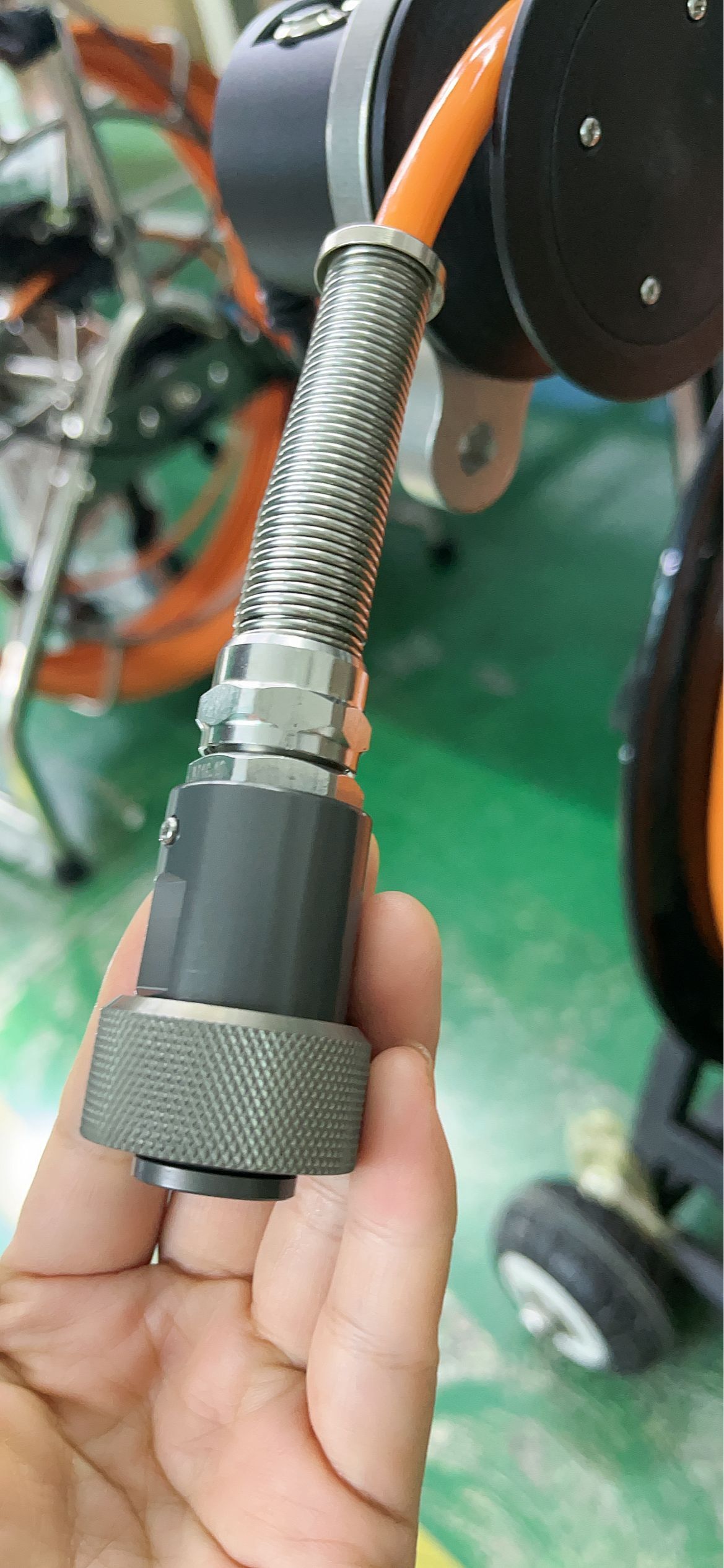

New Spring Connector2.jpg New Spring Connector1.jpg New SPring Connector3.jpg

Detail spec of the D10000PT(13inc screen)

Detail Spec Download

Download
