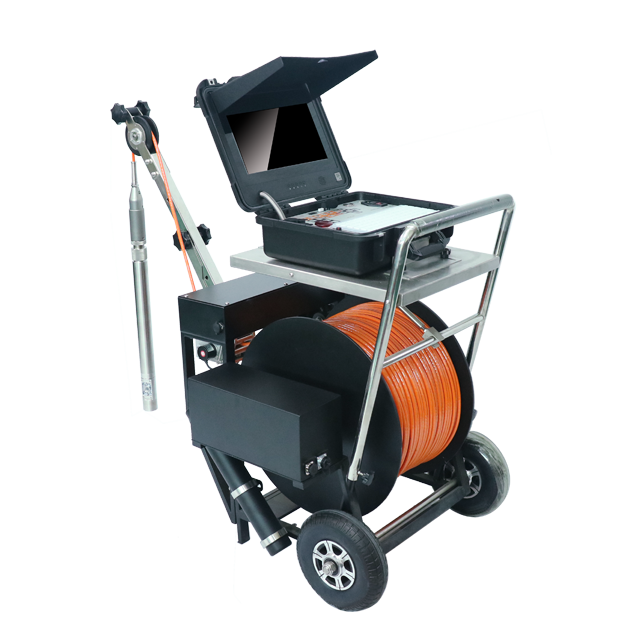

45mm Dual 360° Deep Well Inspeciton Camera System D10015APT-Dual

Mini 45mm dual rotation and water depth 500M deep well inspection camera system D10015APT-Dual


  • Borehole inspection

  • Deep well inspection

  • All vision under fresh water


  • Ф45mm small HD Dual camera head,side lens 360°rotation

  • Resolution: 1.3MP HD

  • Water depth: 500M

  • 13inch big HD display

  • 200m-500m twist wires cable with electric winch

  •  Electric winch winding speed adjustable

  • HD DVR control box with Audio/video recording function

  • Built-in 128G Solid State Drives to storage video /Audio files

  •  Built-in compass and temperature sensor

Detail spec:

Camera head

1.Φ45mm dual lens. Side lens 360° rotation and mannual focus function. Both lens with built-in 6 pcs led lights.

2.1/3"CMOS, HD camera sensor 1.3MP resolution.
3.Built-in temerpature sensor.
4.With compass function
5.Stainless steel camera housing. Sapphire glass lens window.
6.Total weight: 2.4KG
7.Adjustable center skid: Φ420MM(max)

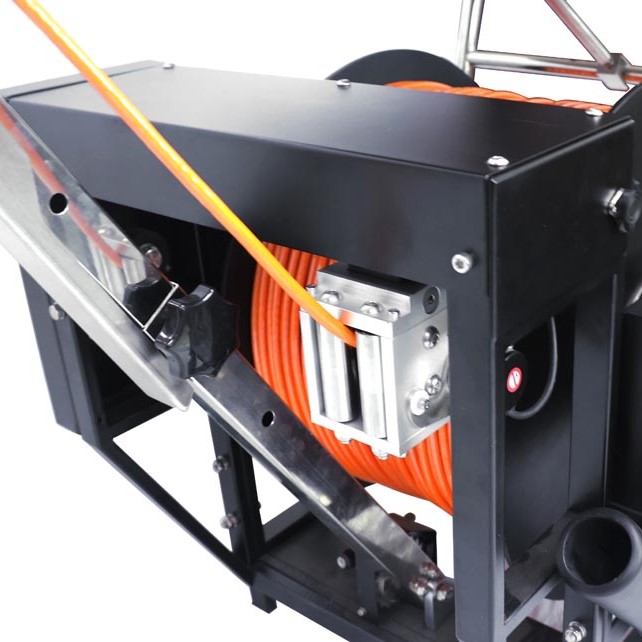

Motorized cable winch
1.Φ8mm kevlar cable, 100M-500M length. Automactic wirring arranging device.
2.On screen depth encoder
3.Winding seed: 0-20M/min. Speed adjustable.
4.Power supply: AC110/AC230V. DC12-24V

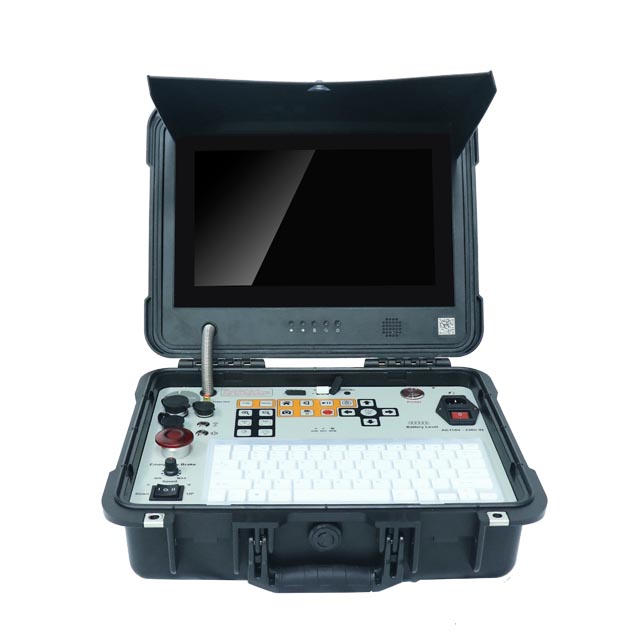

Surface console
1.13"HD screen; 4:3 display model; 12languages menu.
2.HD DVR control box with audio,video recording
3.USB wireless keyboard to typewrite the words.
4.Mannual focus adjustable
5.Digital zoom function
6.Winch operation knob.(adjusting speed,cable up and down,brake)
7.On-screen depth encoder, temperature and direction
8.Camera rotation control
9.Built-in wifi to transmit video to android,apply OS or MID. Transmitter distance 30M.
10.Intelligent terminals as display and recording device
11. Power supply: AC110-230V input port

More detail pictures:

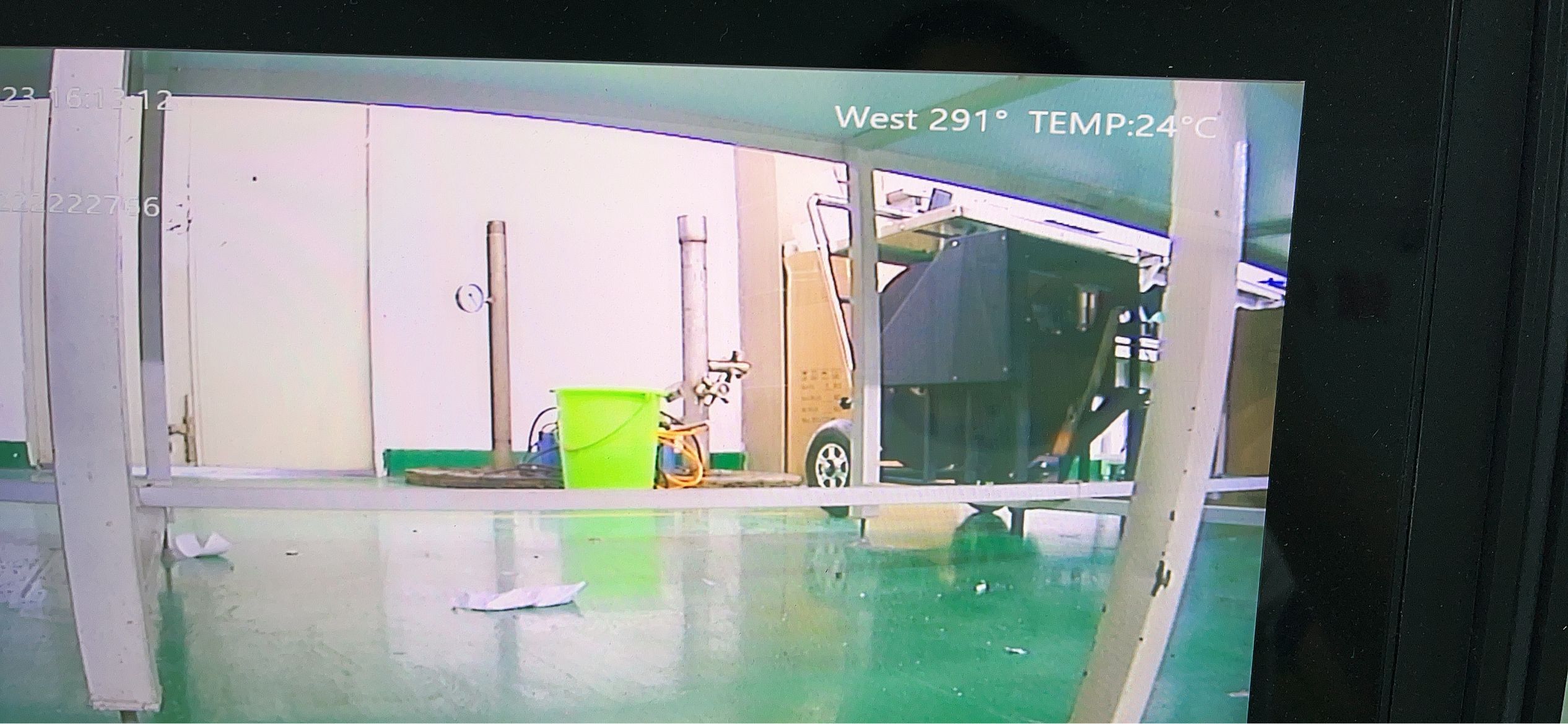

Temperature and direction indicated on screen.


Wooden case :


Gross weight: 200M  131KG;   300M 151KG;  400M 171KG;   500M 191KG

Packing1 PI#PI#CAU20230818.jpg

Please kindly down the detail spec from the link as follows:

Detail spec of D10015APT-Dual.pdf
