Small 28mm PT Pipe Video Camera System PKB-28PT
Small Ф28MM 360° Pan and Tilt Pipe Inspection Camera PKB-28PT
| Detail Spec | |
|

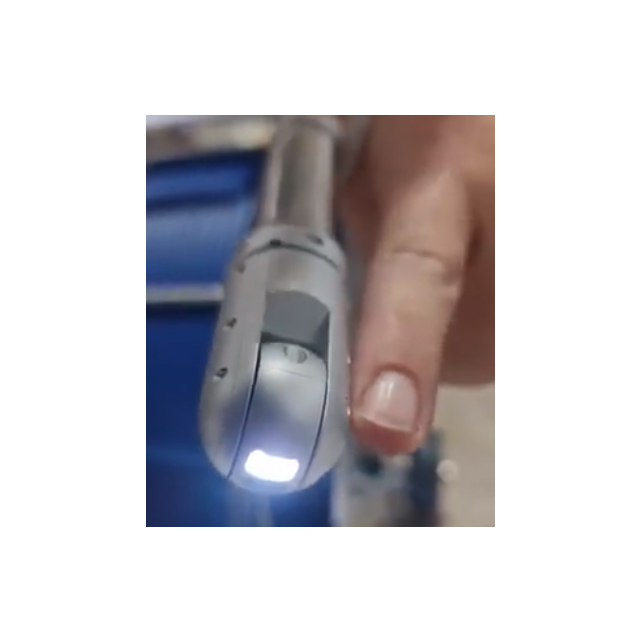

Camera Head | |
| Φ28mm Small Head | Pan:360°,Tilt:180°,self-level,built-in FM512HZ sonde |
| Resolution | 900TVL |
| Illumination | Built-in 2pcs led lights and dimness available |
| View Angle | 120° |
| Waterproof | IP 68,water depth:20M |

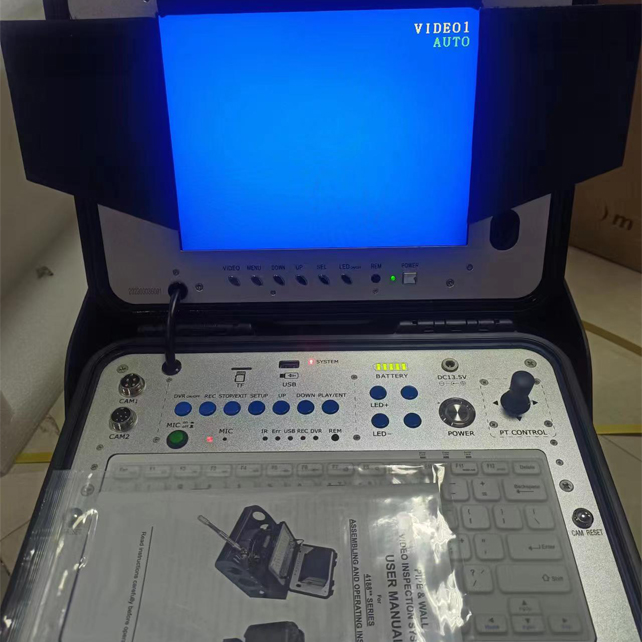

| Suitcase and Control Panel | |
| Screen | 10" LCD |
| Video Compress | MPEG-4 |
| Recording | Video and audio recording |
| Storage | USB and SD card(32G Max) |
| Menu Language | 8 Languages(English/French/German/Italian/Spanish/Portugese/Russian/Dutch) |
| Built-in Battery | 6600mAh,12V li-ion battery |
| Text Input | Keyboard |

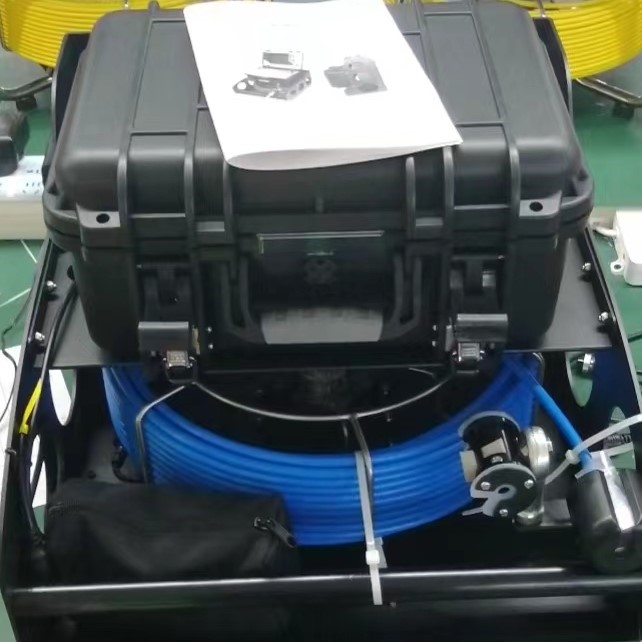

| Hidden Cable Wheel | |
| Φ8mm Thick | Fiberglass push rod cable |
| Length | 30M 40M |
| Meter-counter | Digital and show on the screen |
| Wheel | At the bottom of the case,Hidden and Saving Space |

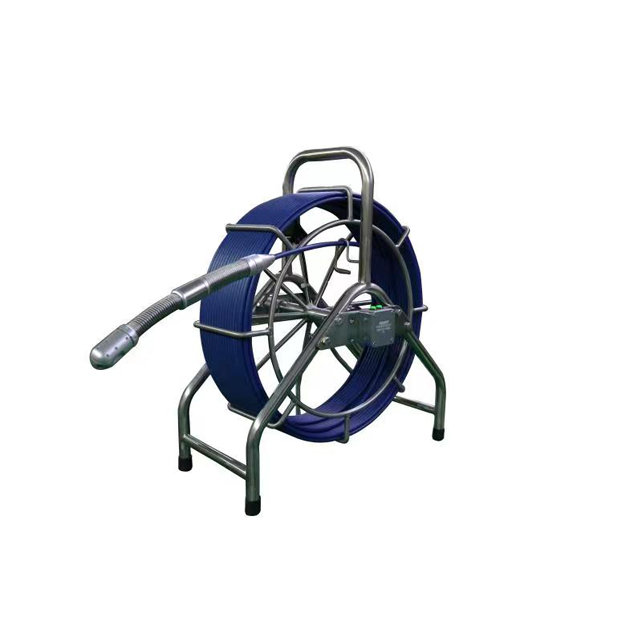

| Option | Separate cable wheel (option) |
| Packing | |
| Carton Dimension | 61cm*54cm*47cm;1pc Packing Carton only |
| Gross Weight | 17KG |
| Net Weight | 16kg |
-
PKB-28PT Brochure Download Link.
Product Downloads
Detail Spec Download
