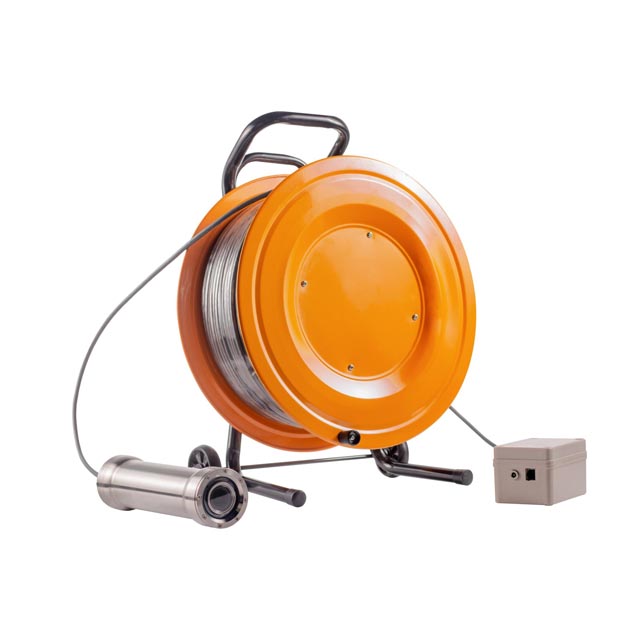

Barlus 1080P Full HD Underwater IP Camera with Water Depth 200M
200M Water Depth 1080P HD Underwater POE IP Camera #D10009
Main advantage :
2.8MM lens. 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2
1080P full HD
Water depth max: 200M
Permanent installed under water available
Built in 4pcs infrared lights and 3 white led lights 10 level brightness adjustable
Support time control light
Support Support iOS, Android, computer, NVR.Compatible with hikvision, dahua, proprietary protocol.(Only support windows-IE browser for camera internal parameter setting)
IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,RTSP,ONVIF;SDK Secondary development
Detail spec:
| Camera size | Ф70*240MM |
| Lens |
2.8MM(H.FOV:100°) 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
| Waterproof | IP68(Permanent Installed under water） |
| Water depth(max) | 200M |
| Camera resolution |
2 MP 1920×1080P 1 MP 1280×720P |
| Fill Lights(Mobile/PC/NVR setting) |
Manual contorlled 3 white light , 10 level brightness settings Light sensor contorlled 3 white light ,10 level brightness settings Light sensor contorlled 4 infrared light ,10 level brightness settings Manual contorlled 3 white light ,10 level brightness settings |
| Time control light | Support |
| Image color | Two color modes:1: Manually set full color / black;2: Automatic color transfer to black; |
| Cable | 200M standard cable length, PU material ，Ф7MM. Resistance to 60KG pull,Anti-aging,Anti-friction, Resistance to seawater corrosion,Special underwater wire. |
| Supporting device | Support iOS, Android, computer, NVR.Compatible with hikvision, dahua, proprietary protocol.(Only support windows-IE browser for camera internal parameter setting) |
| Supporting agreement |
IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,RTSP,ONVIF;SDK Secondary development) |
| Camera housing | 316L stainless steel, anti-corrosion |
| Working environment | land,Car,Shipborne,Underwater. |
| Working Humidity | 0%-100% |
| Working temperature | -20°~55° |
| Power Supply |
DC24V 2A |
| Weight | 2.5KG |
| Package |
1* camera 1*cable wheel 1* camera bracket 1*U disk (instruction and software) |
Product Downloads
