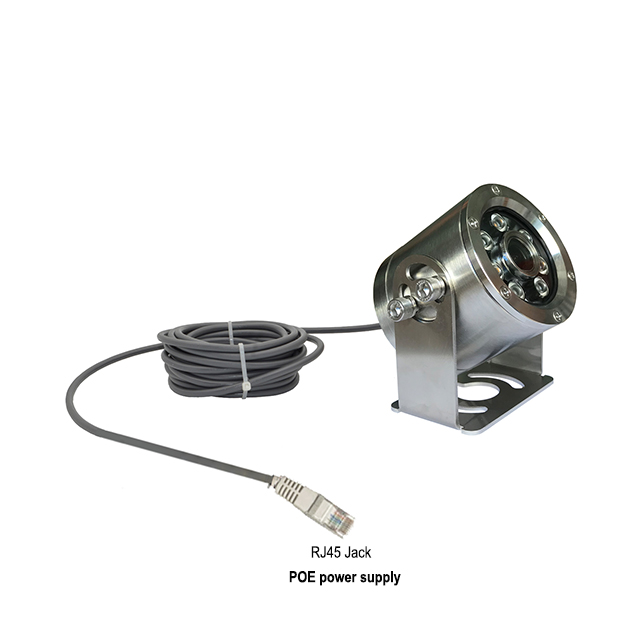

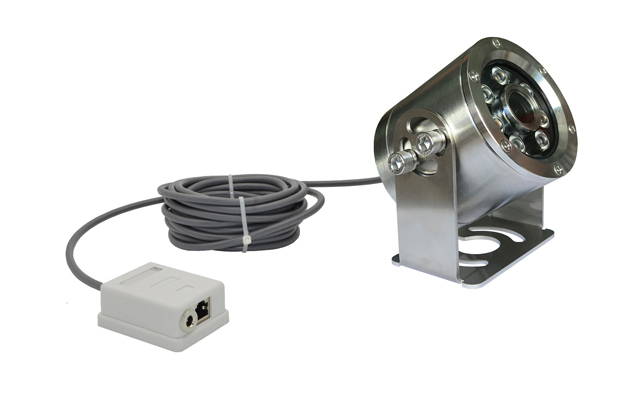

Fixed Lens Stainless Steel Underwater POE IP Camera DZ10010-ES
Stainless Steel 1080P Underwater POE IP Camera #DZ10010-ES
Advantage:
Lens:2.8 MM(H.FOV:140°)
Resolution:2MP 60FPS/3MP 25FPS/4MP 25FPS/5MP 25FPS
Illumination:Built-in led lights and infrared lights,manual control or light sensor control the brightness
Water depth:50M.Permanent Installed under water available
10M standard cable length
Power Supply:DC12V 1A
Support iOS,Android,computer,NVR
IPv4/IPv6,802.1x,HTTPS,HTTP,TCP/IP,UDP,RTP,RTCP,UPNP, RTSP,SMTP,NTP,DHCP,DNS,PPPOE, DDNS,FTP,RTSP,ONVIF;SDK secondary development
| Detail spec: | |
| Camera Head Dimension | Ф70mm*65mm |
| Lens | 2.8mm(H.FOV:140°) |
| Sensor | 1/2.7”OV CMOS sensor,color 0.01lux F1.2,black/white 0.01Lux F1.2 |
|
Resolution |
2MP 1920*1080P 60FPS 3MP 2048*1536P 25FPS 4MP 2590*1920P 25FPS 5MP 2592*1520P 25FPS |
|
Built-in Light |
Light sensor contorlled 3 white light,10 level brightness settings (maximum 800 lumens) Manual contorlled 3 white light,10 level brightness settings (maximum 800 lumens) Light sensor contorlled 3 infrared light,10 level brightness settings (maximum 800 lumens) Manual contorlled 3 infrared light,10 level brightness settings(maximum 800 lumens) |
|
Image Color |
Two modes:1,white light-full color 2,infrared light-automatic color to black; |
| Camera Housing | 316L stainless steel,anti-corrosion |
| Waterproof Level | IP68（permanent Installed under water） |
| Water Pressure | Maximum 500Kpa (Waterpressure resisitance 50M) |
| Cable |
10M standard length,PU material,Diameter 7MM.Resistance to 60KG pull, anti-aging,anti-friction,resistance to seawater corrosion,special underwater wire. |
| Power Supply | DC12V 1A |
| Weight | 1.5KG |
| Supporting Device |
Support iOS,Android,computer,NVR.Compatible with hikvision,dahua,proprietary protoc. (Only support windows-IE browser for camera internal parameter setting) |
| Supporting Agreement |
IPv4/IPv6,802.1x,HTTPS,HTTP,TCP/IP,UDP,RTP,RTCP,UPNP,RTSP,SMTP,NTP,DHCP,DNS, PPPOE,DDNS,FTP,RTSP,ONVIF;SDK Secondary development |
| Use Environment | Sea water/Fresh water/Underwater,land,Car,Shipborne. |
| Working Humidity | 0%-100% |
| Working Temperature | -20°-55° |
|
Packing List |
1*Camera 1*CD 1*Manual |

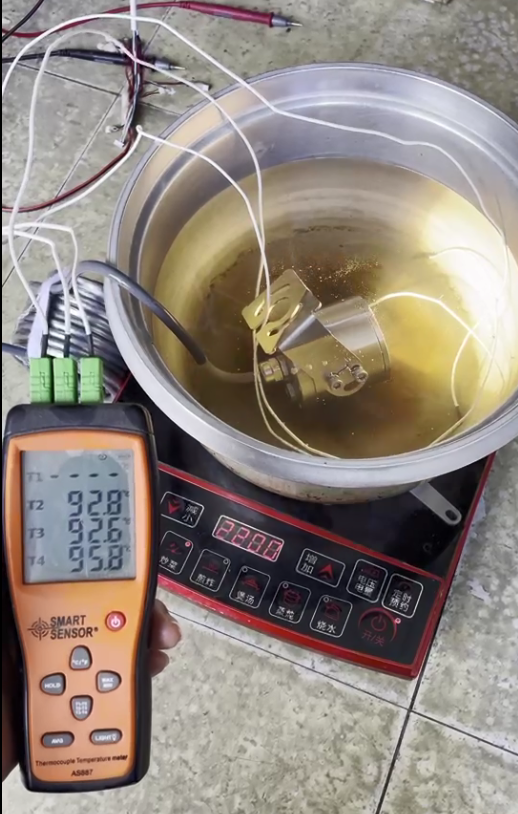

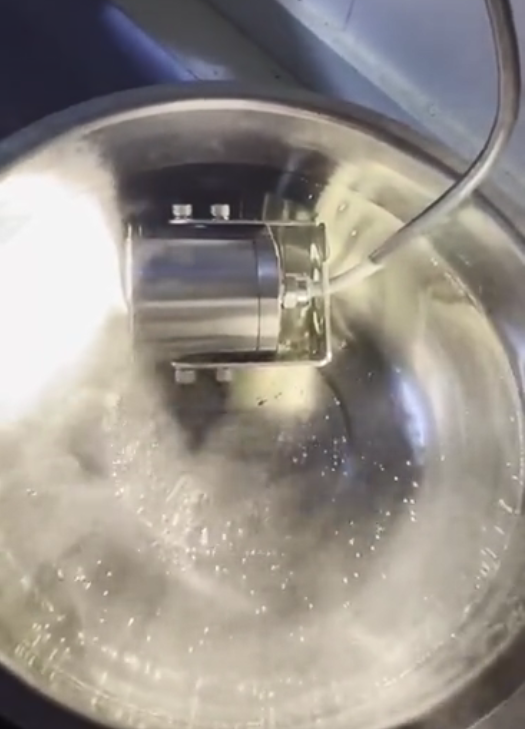

Digital Video Camera DZ10010-ES Under Working in the Boiled Water

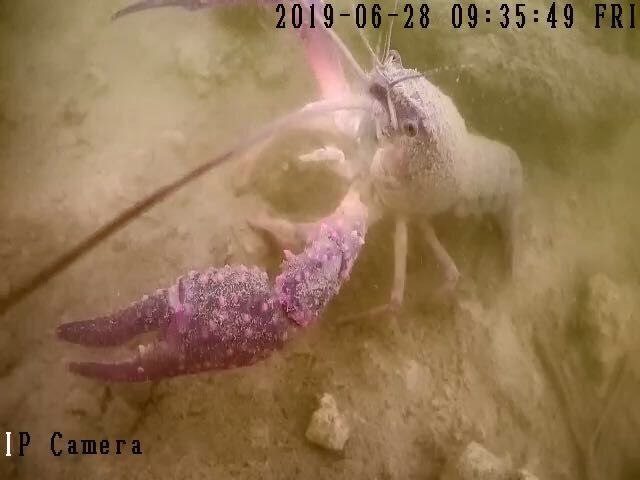

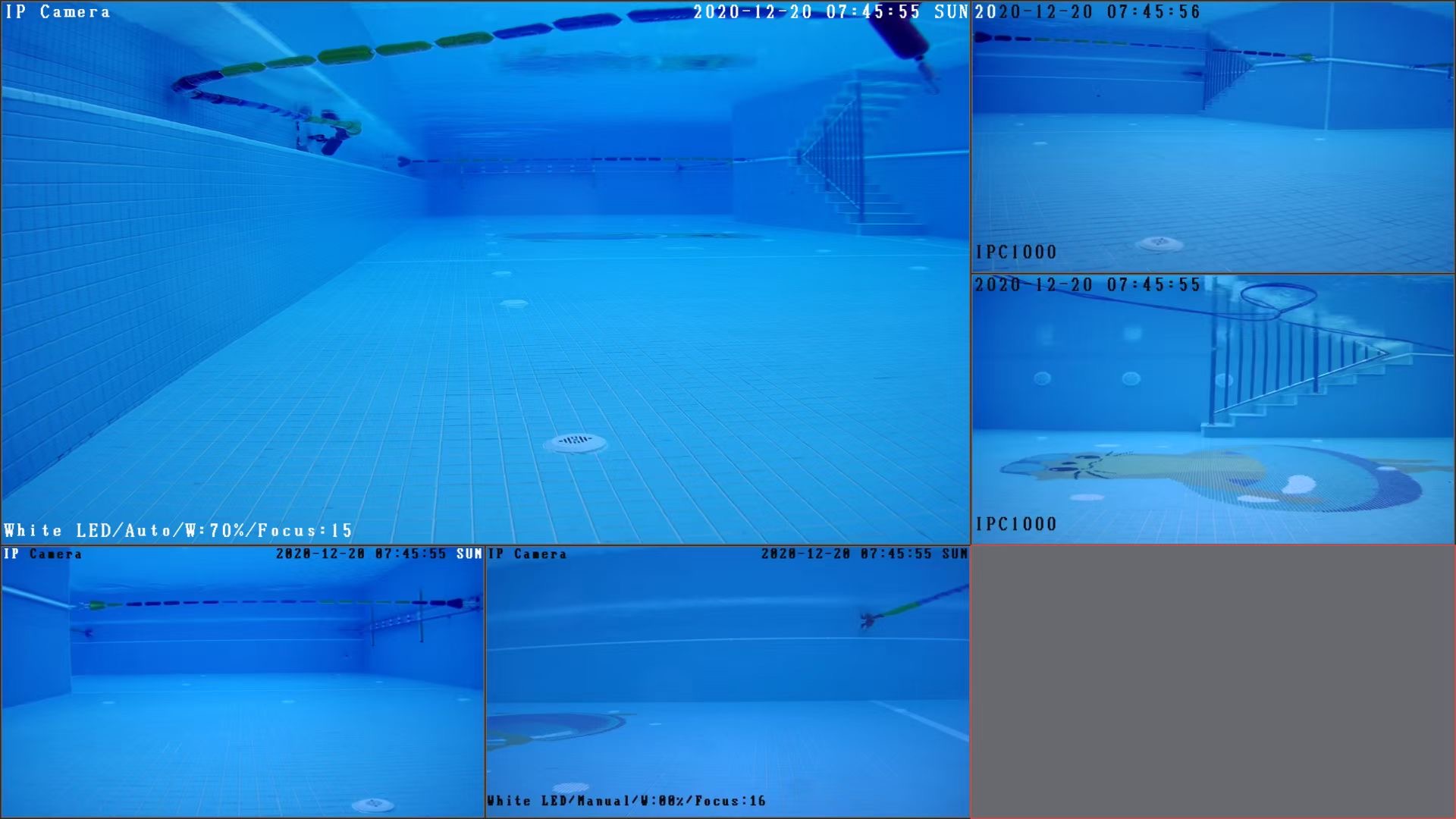

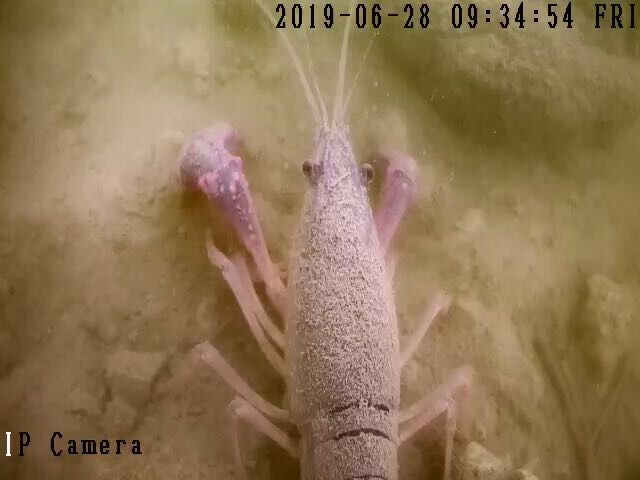

DZ10010-ES Serviced for Swimming Pool,Fish Farm and other Projects.

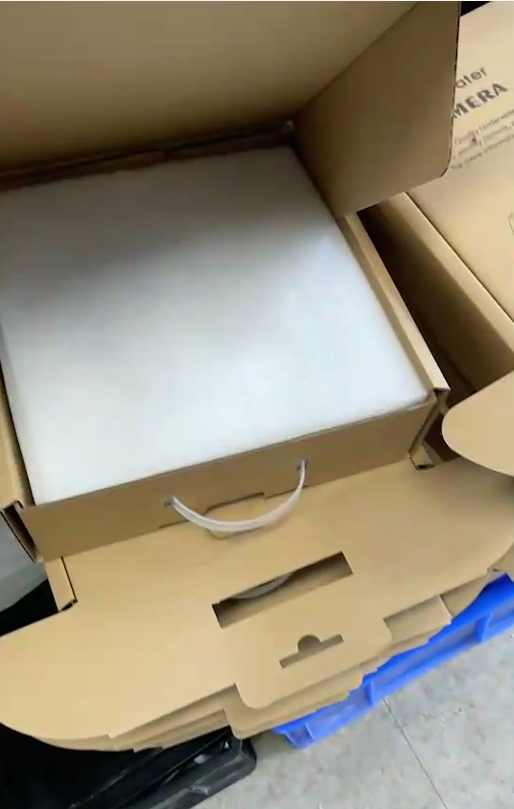

Packing:
Please Download the Detail Spec
Product Downloads
