300M-2000M Borehole Inspection Camera System
300M-2000M Borehole Inspection Camera System
Detail Spec:
Camera Head | |
Diameter |
Ф73mm |
Waterproof |
180Bar, water depth: 2000M |
Heat-resistant |
70℃ |
Led Lights |
Higher Bright Led Lights Side: 4PCS Bottom:6PCS |
Sensor |
CCD |
Resolution |
750TVL |
Camera Housing Material |
chrome-plating |
Cable | |
Cable Diameter |
Ф8.2mm |
Tensile Strenght |
180KG |
Heat-resistance |
70℃ |
Downhole Pulley | |
Pulse |
400 |
Digital meter-counter function |
Work together with the suitcase |
Meter-counter accuracy |
0.05M./ Automatic calibration |
Suitcase | |
Power Supply |
12V-220V |
Dimension |
415*340*141MM |
Depth Jack |
Yes |
Video in /out Jack |
Yes |
Video/audio/text recording |
Yes |
Keyboard |
|
Storage |
USB |
Monitor | |
Size |
10 inch |
Model |
4:3 |
Contrast Ratio |
500cd/㎡ |
Pixles |
1024*768 |
Power Supply |
DC12V |
Packing Carton:

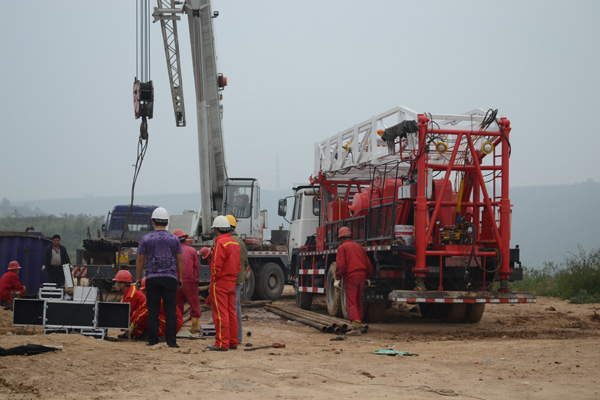

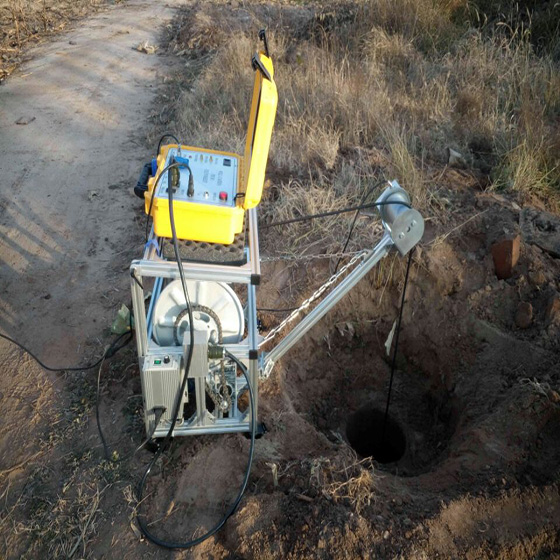

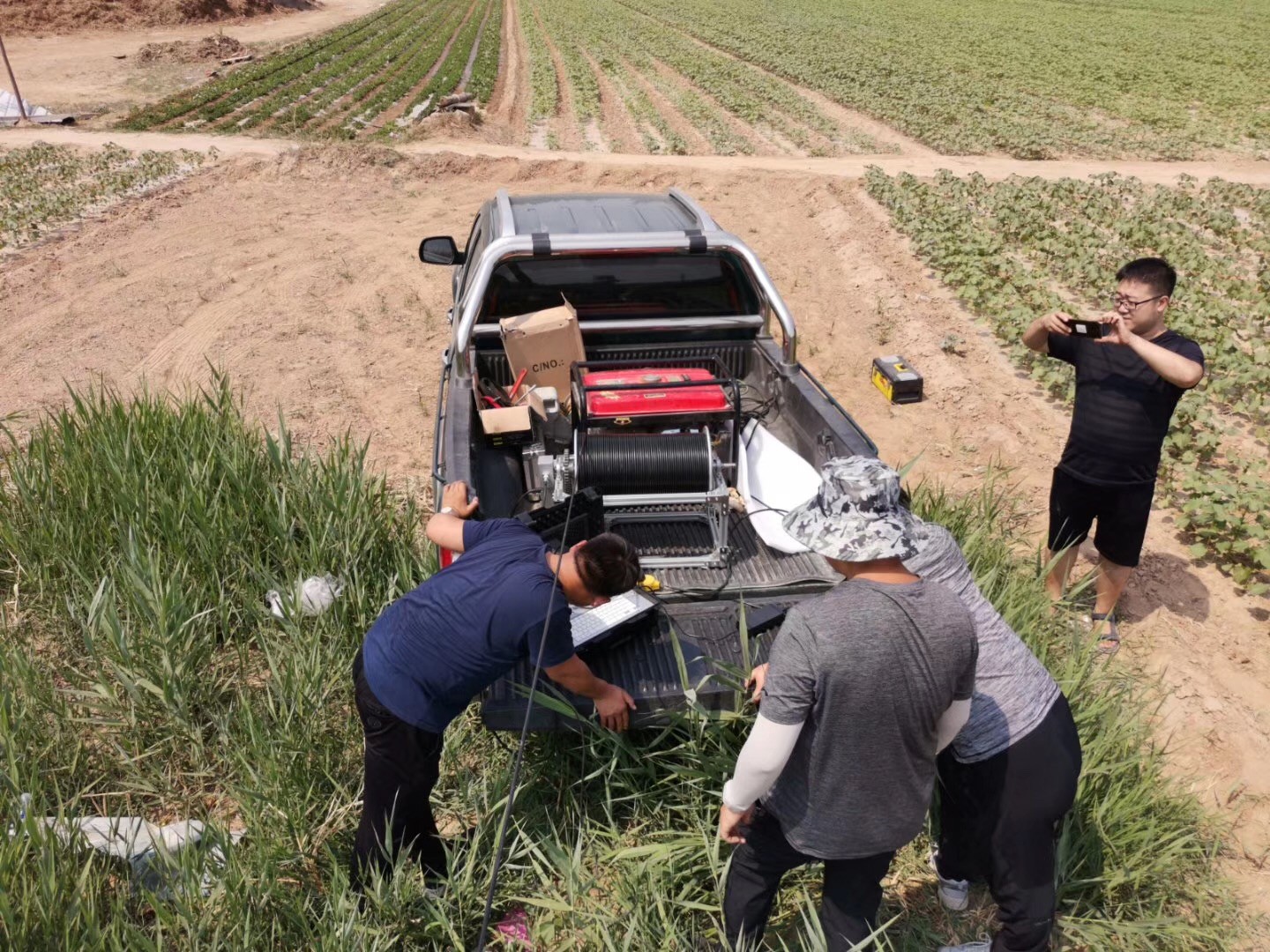

Application projects pictures:
Detail Spec of D10012P-Dual.pdf
Camera head working video
Camera head glass quality checking:
