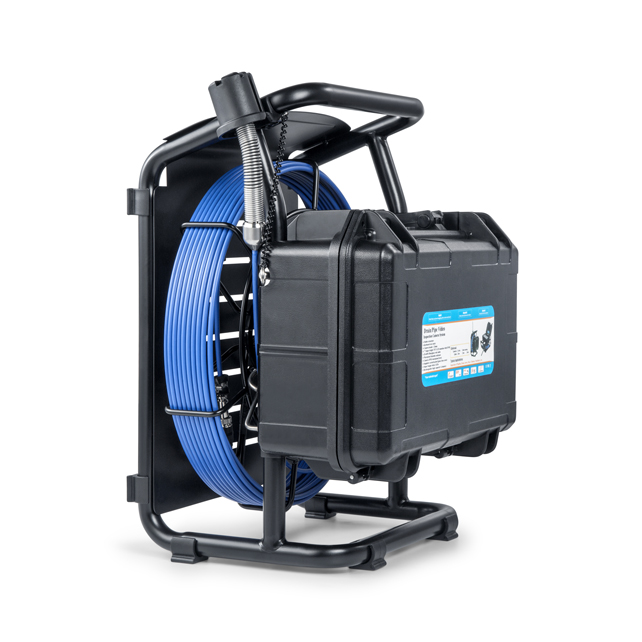

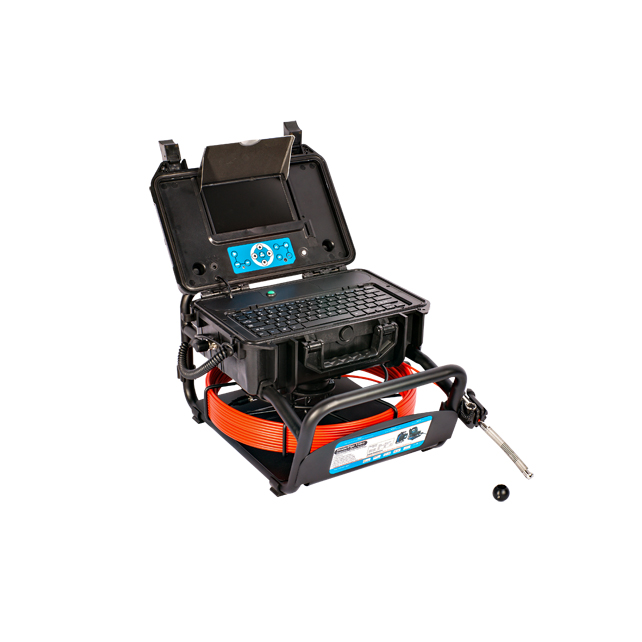

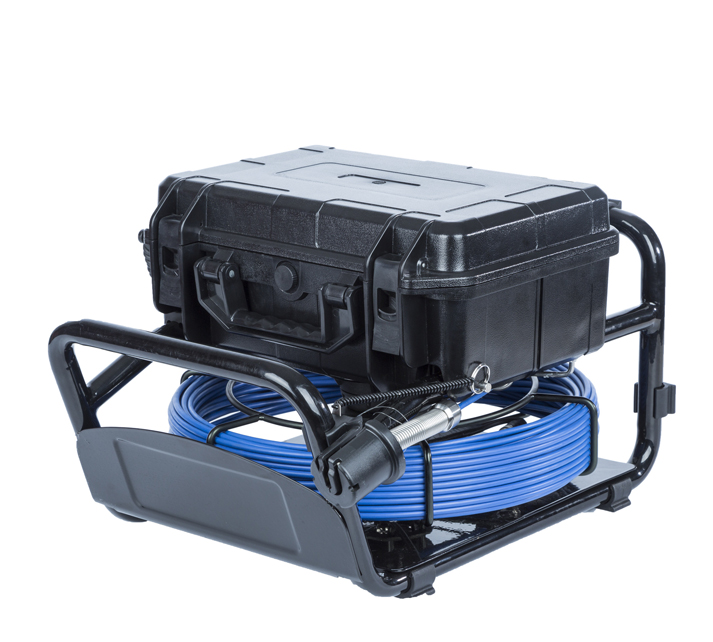

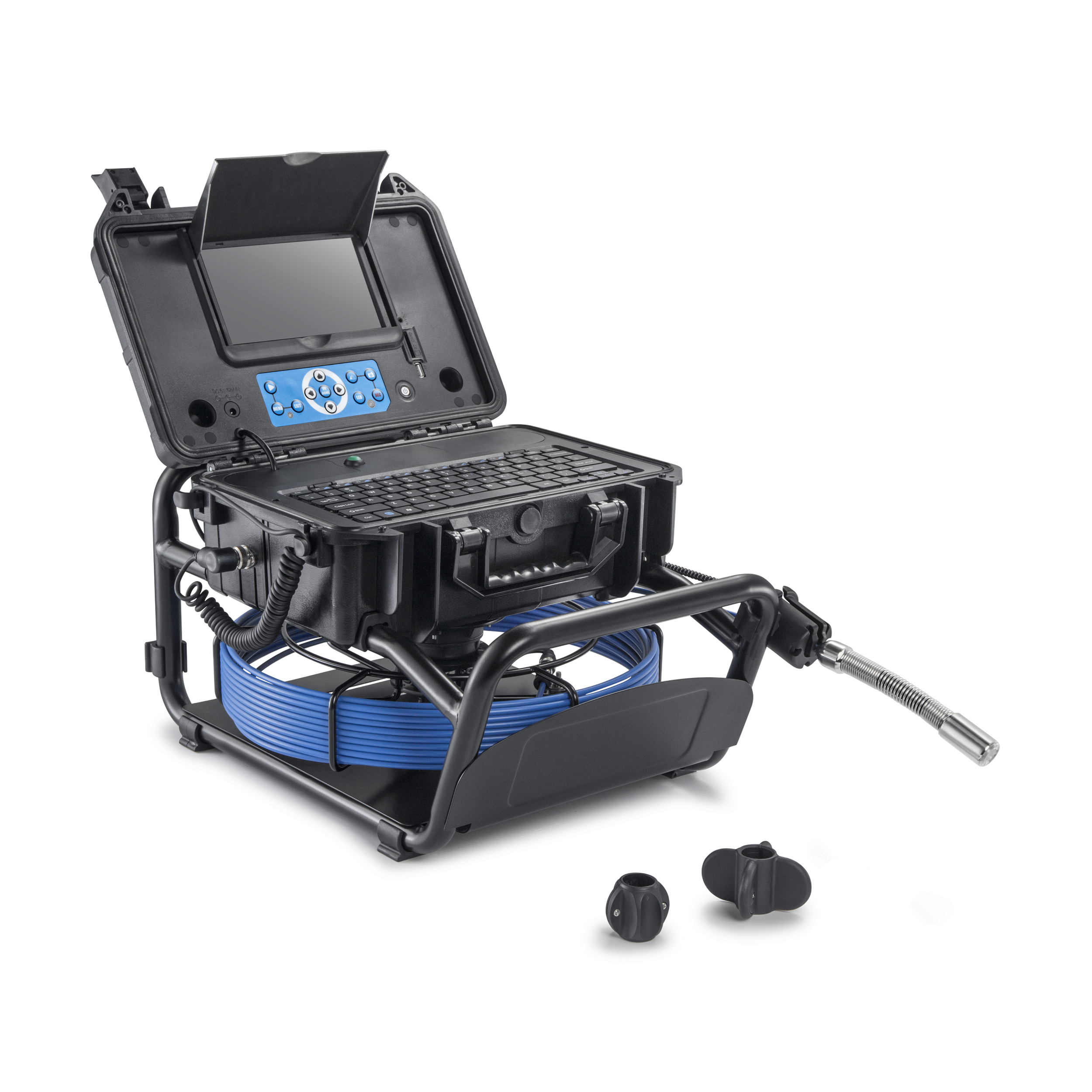

Compact Micro Push Rod Pipe Inspection Camera System P10001-U

Compact Micro Push Rod Pipe Inspection Camera System P10001-U


This Mini video inspection camera system widely application in the subsurface utility infrastructure,construction,municipal work and plumbing service.Compact and easy-of use uniquie design increase productivity and profitablity.Two sizes of user rechargeable cameras for different pipe range inspection.Affordable price,high performance.


P10001-U..642.jpg P10001-U642.jpgP10001-U.642.jpg


Advantage:

  • Compact and easy operation design,increase the profitability for the plumber work

  • 7" Display with integrated DVR

  • QWERTY cordless keyboard

  • On-Screen distance counter and battery life

  • One-Button recording

  • Built-in microphone for audio record

  • Max 32G storage

  • 512hz sonde

  • 9 Menu Languages

  • Flexible push rod cable work for rugged pipe well



Camera #1 Camera#2 Camera#3

14mm camera head.png

23mm camera head.png

38mm camera head.png

Dimensions ∅14mm ∅23mm self-level ∅38mm  self-level
Pipe Diameter Range 25mm-80mm 45mm-150mm 100-250mm
Resolution 480TVL 480TVL  480TVL
Construction Stainless-steel housing and saphhire lens Stainless-steel housing and saphhire lens Stainless-steel housing and saphhire lens













with dia.23mm camera





with dia.14mm camera

14mm camera head with the P10001-U 642.jpg


**Detail Spec **

Camera Head

1.Head Dimension

23mm*45mm,go through the 90° bend in dia 45mm pipe

2.Sensor

1/3” Sony CCD

3.Camera Housing

#304 stainless steel

4.View Angle

120°

5.Lens Cover

Sapphire glass

6.Light

12pcs High bright white Leds,adjustable brightness

7.Waterproof

2Bar

8.Focus Distance

20cm(Approx)

Hidden Cable Wheel

1.Cable diameter

5.2mm

2.Material

flexible fiberglass rod

3.Wheel Material

Stainless steel

4.Wheel Diameter

33cm

5.Length option

20m(66ft)/30m(100ft)/40m(130ft)

Monitor and Built-in   Control Panel

1.Monitor size

7 inch monitor

2.Video Out

MPEG-4

3.Recording

Video/auidio/text   recording

4.Menu Language

9 language for choose

5.Storage

SD card storage

Packing list

1*suitcase                                 1*push cable with wheel

1*camera head                         1*Screw driver

1*46mm skid                             1*80mm skid

1*Adaptor                                  1*Car charger

1*connector cable                     1*Remote control

Gross weight

 12KG

Packing carton size

  55CM*44CM*35CM

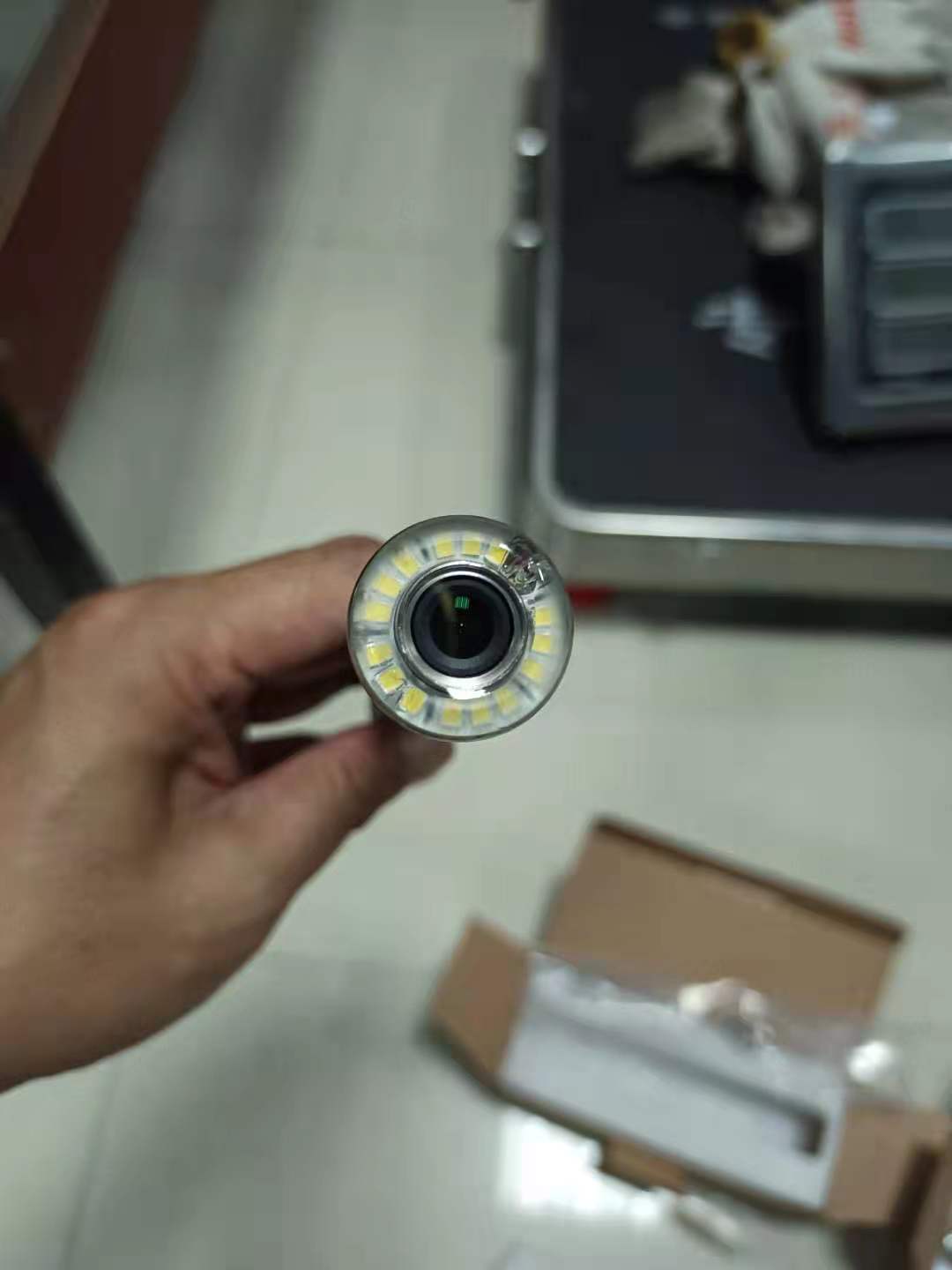

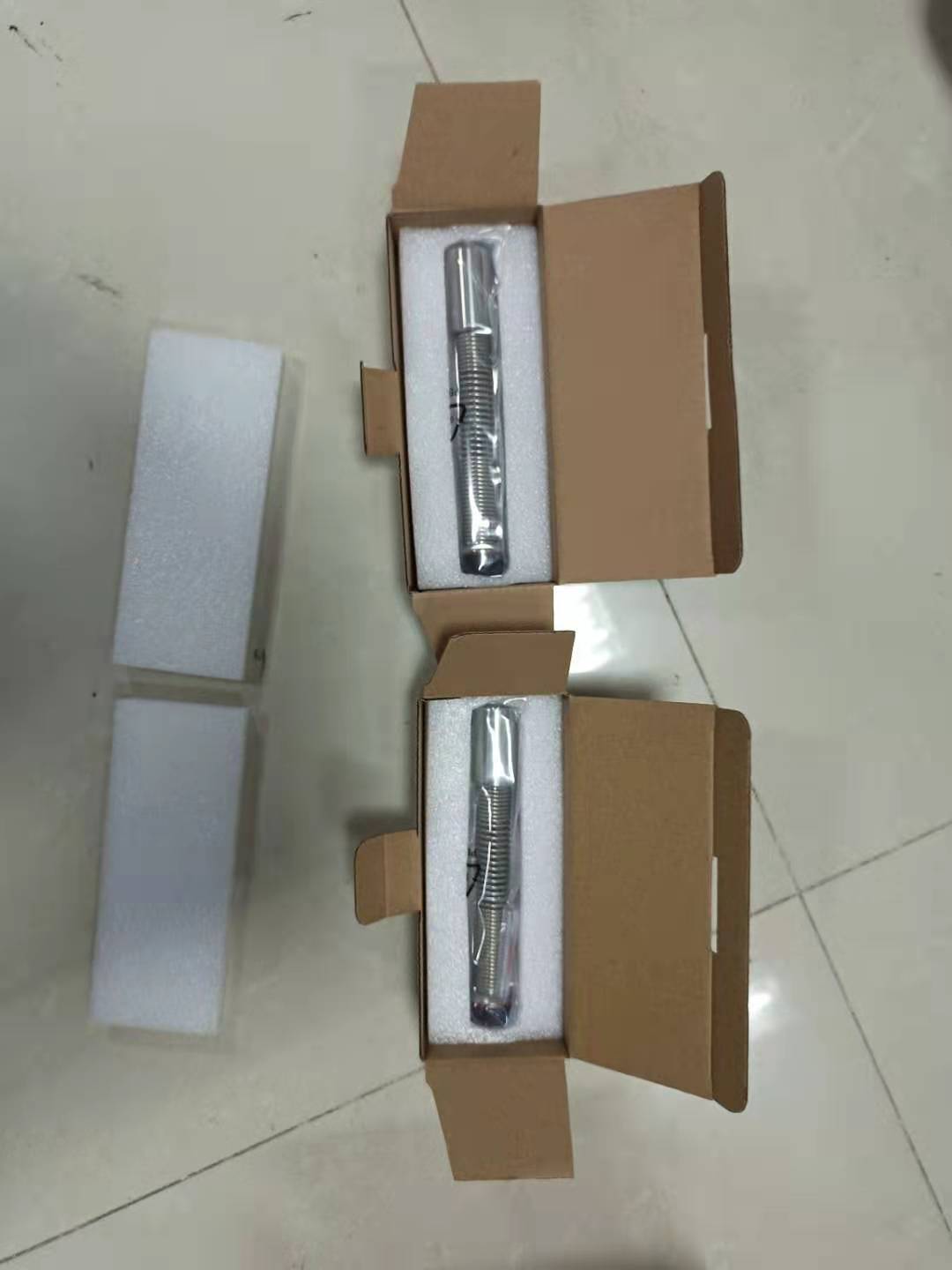

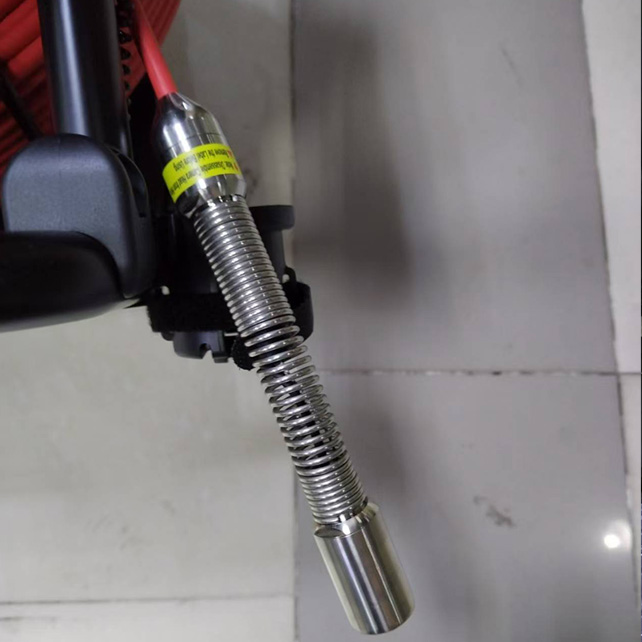

  • Pictures for 23mm camera head

    微信图片_20210520152526.jpg 微信图片_20210520152457.jpg

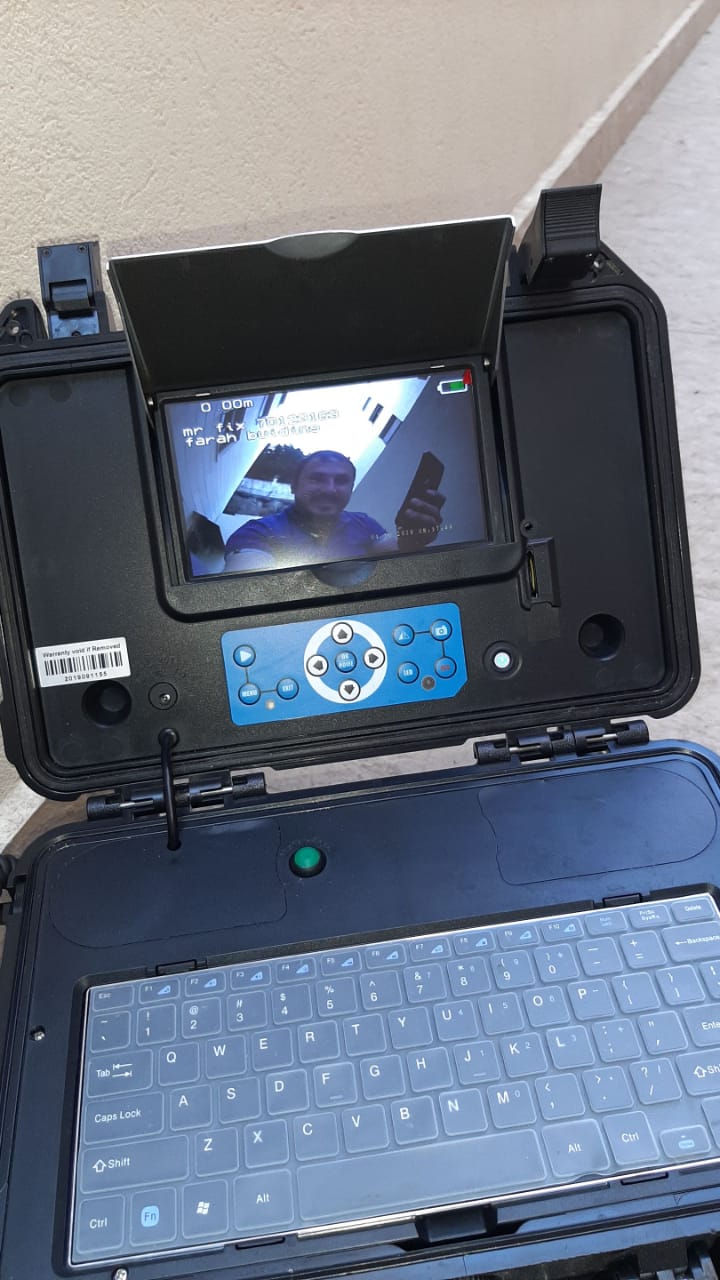

  • Euipment Working on Site

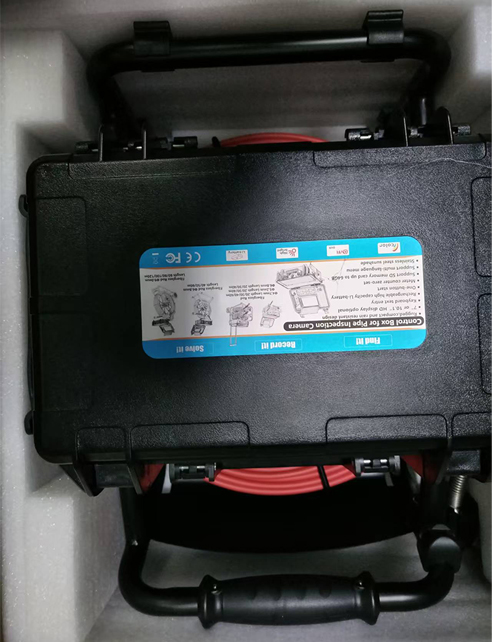

  • Packings

    8 Packing cartons.jpg


***Down load the spec sheet *

Detail Spec of P10001-U.pdf


P10001-U Work on the dia.100mm(4inch) tube and the good video quality

https://youtu.be/nlV9oVJuFCc
