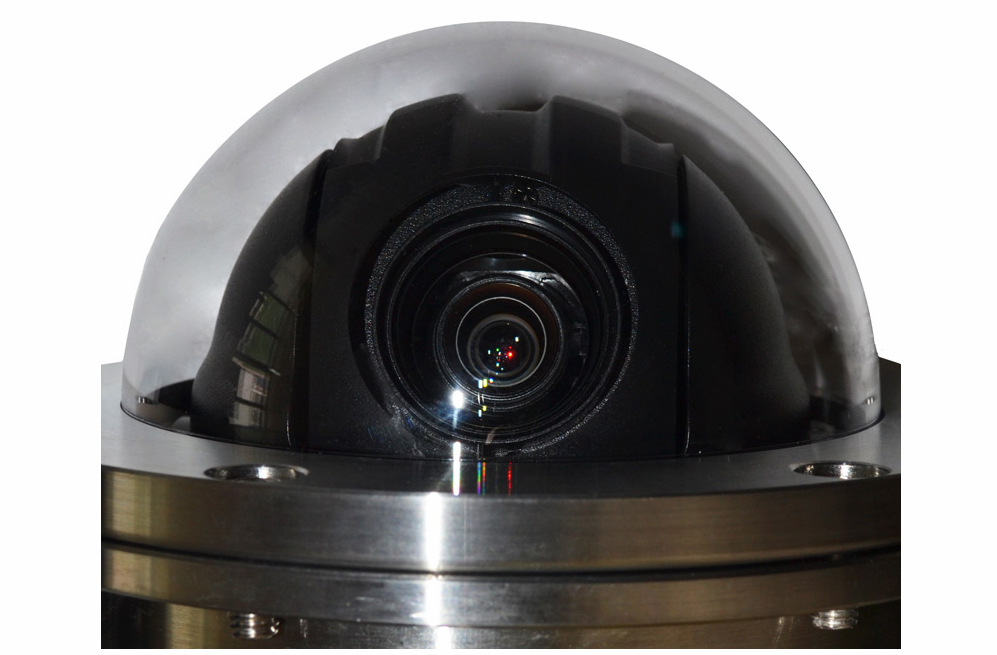

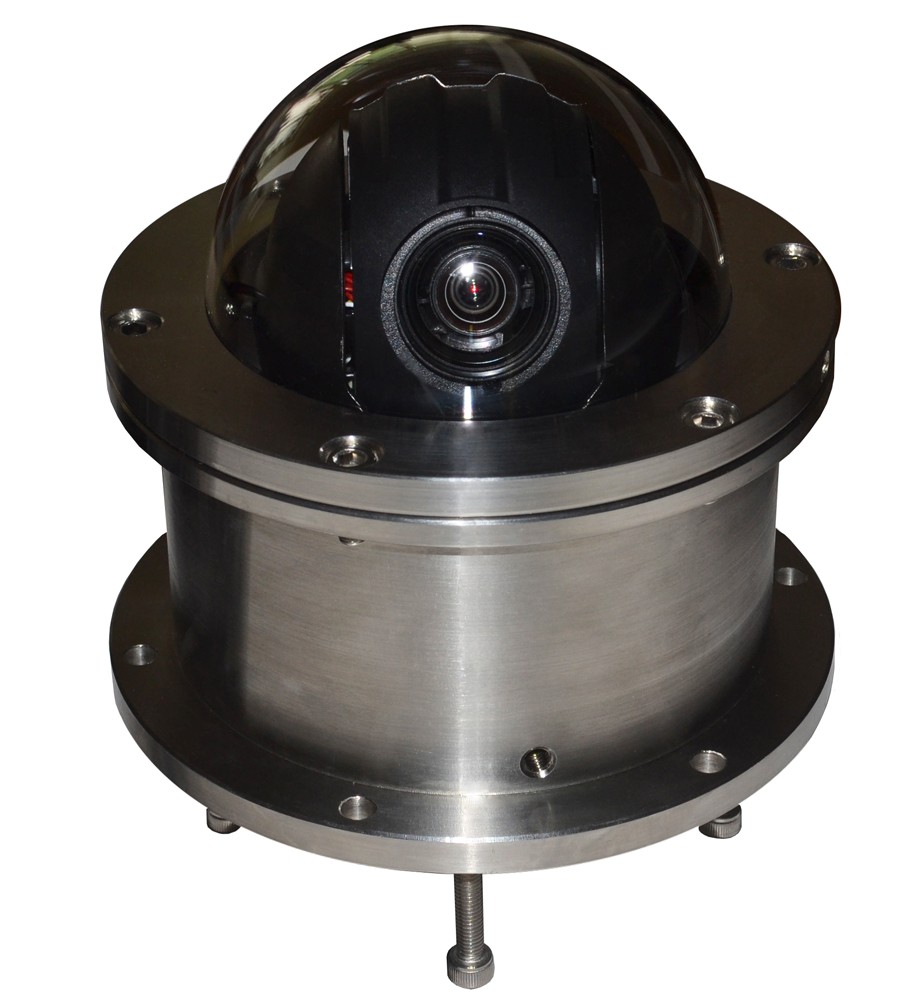

D10007 1080P Full HD Real -Time POE Underwater PTZ Marine Camera

Camera Type

2.0MP real-time underwater IP PTZ Camera

Camera

Image Sensor

1/2.7" 2MP Aptina CMOS

Effective Pixels

1920(H)x1080(V)

Day/Night

keep color

Min.Illumination

Color 0.1Lux/F1.4

Electronic Shutter

1/50(1/60)s-1/100,000s

Lens

3.8-38mm(F  1.8-3.2)10X10 zoom

Lens Mount

M12/CS Mount

Material

stainless steel 316L

Water depth

80M

IR-LED

N/A

Illuminate Distance

N/A

Compression

Compression Standard

H.264 Main Profile / MJPEG

Video Frames

Real-time PAL/NTSC 2MP@1~30FPS

Video stream output

Support adjustable stream 0.1M ~ 6Mpbs


Quality

3D-DNR,BLC,AWB,auto ISO

Resolution

Main Stream:

1920×1080 30fps(2MP),1280×720(1MP) 30fps

Sub Stream:640×360,720×480(1-30fps)

Network

Parameter Settings

WEB configure and OSD supported, Real time recording,
Transmission and playback

Basic

 Dual stream, Password protection

Protocol

HTTP/Onvif/DHCP/DDNS/NTP

Alarm

Support Motion Detection, Linkage Alarm, Linkage recording,
 Sensor trigger alarm functions

Interface

Video Output

RJ45

Network Interface

1 RJ45 Ethernet interface, 10/100M adaptation

PTZ

Pan / tilt

Pan 360 degree , Tilt 90degree ;Tilt 0-90degree/s; Pan 200degree/s

Manual Speed

0.5360/s ~360 /s continuously adjutable

Other

Work Environment

-10°C- +60°C

Waterproof Criterion

IP68

Power Supply

POE IEEE802.3at/af

Size

15.8x15.8x15cm

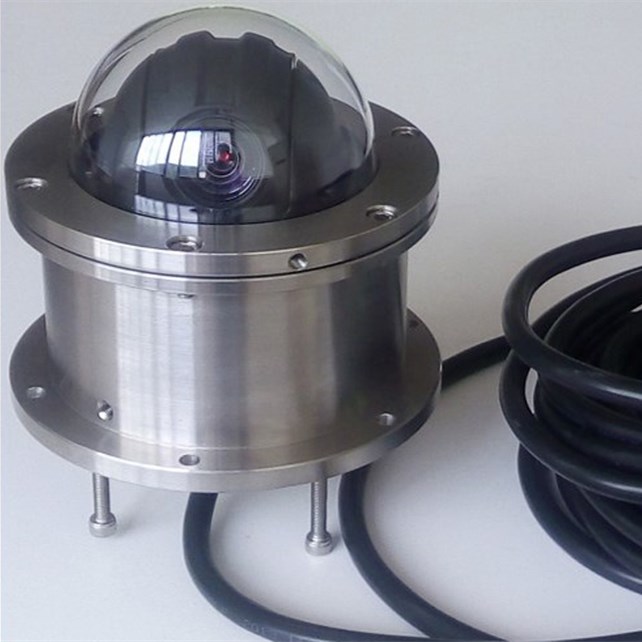

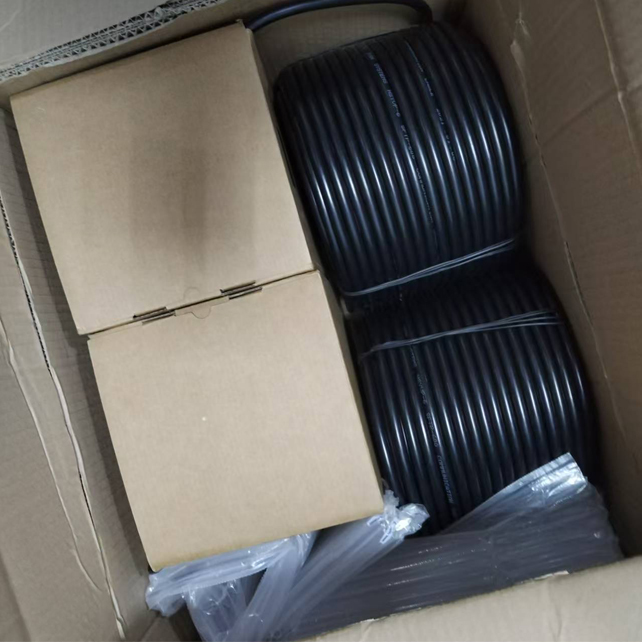

Cable

CAT6 100M Max .

Material:Six four double shielded twisted pair, Outer sheath HNBR,Inner Sheath Double PVC

Net Weight

N.W.5kg +cable 0.12kg/m
