T10006 Digital Sound Level Meter

Digital Sound Level Meter

Item: T10006

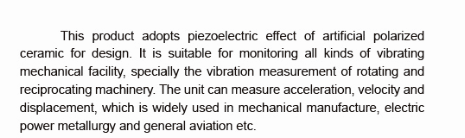

          This product adopts piezoelectric effect of artifical polarized ceramic for design.It is suitable for monitoring all kinds of vibrating mechanical facility,specially the vibration measurement of rotating and reciprocating machinery.The unit can measure acceleretion,velocity and displacement,which is widely used in mechanical manufacture,electric power metallurgy and general aviation etc.


Detail Spec

T10006

Technical Indicators


Measuring Range

30-130dBA℃(-58℉-572℉)

Precision

±1.5dB

Digits &resolution

0.1dB

Working temperature &Humidity

0-40

10%-80%RH

Storage Temperature &Humidity

-10℃-60℃

0-90%RH


Microphone

1/2 Inch Polarization

Capacitance

Microphone

Frequency Weighting Features

A

Peculiarity


Max/Min/AVG

Backlight

Measurements Keep

Auto/Manual Shut-off

Conventional


Products Size

56.1mm*36.03mm*117mm

Products Weight

130g(+batteries)

Power Supply

3*1.5V AAA Batteries

Standard Quantity Per Carton

60pcs

Standard Carton Size

46.4cm*39.7cm*48.7cm

Standard Carton Gross Weight

14.95kg
