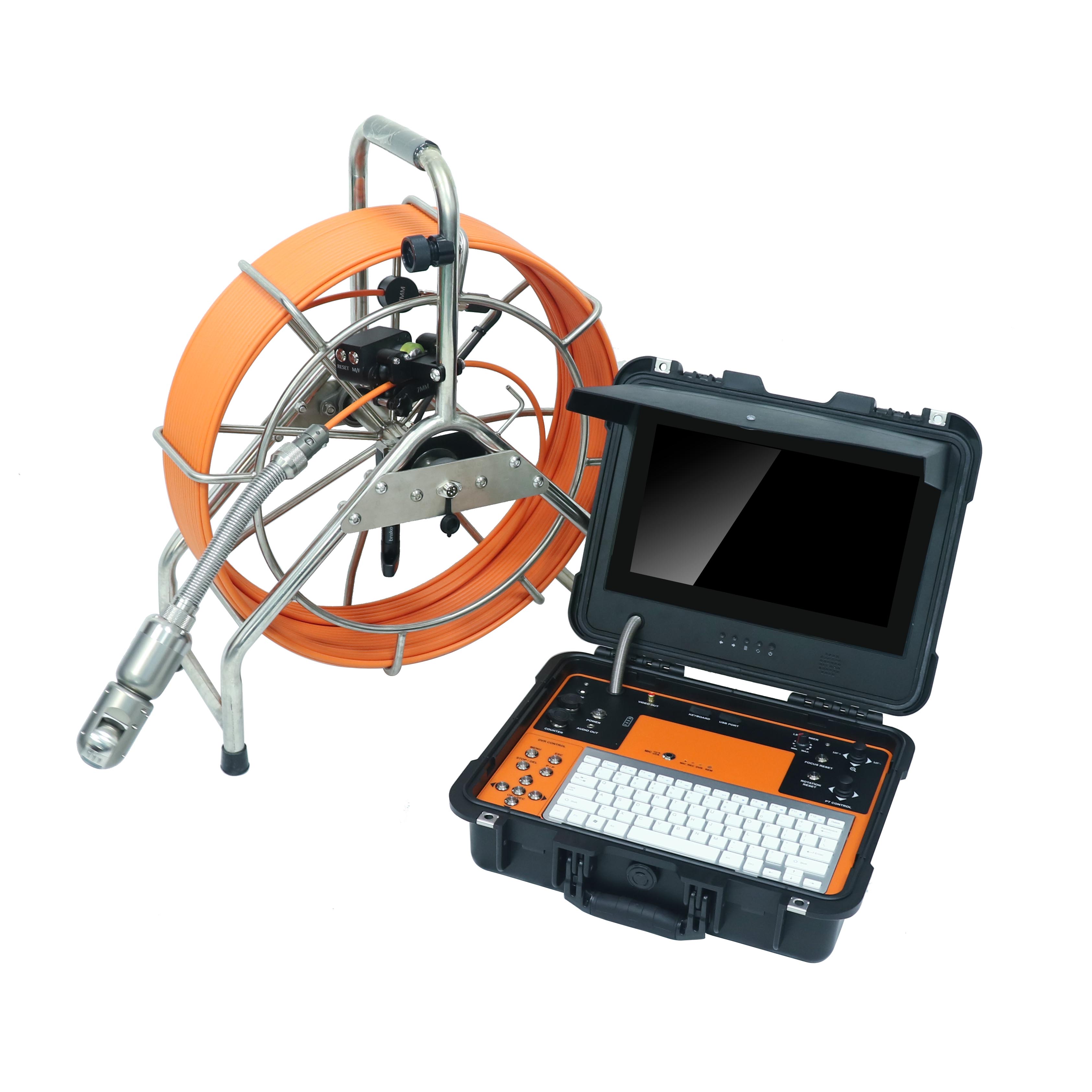

P10000PT 1.3MP AHD Pan and Tilt Pipe Inspection Camera System (60M)

1.3MP AHD Pan and Tilt Pipe Inspection Camera System (60M)


Detail spec as follows:

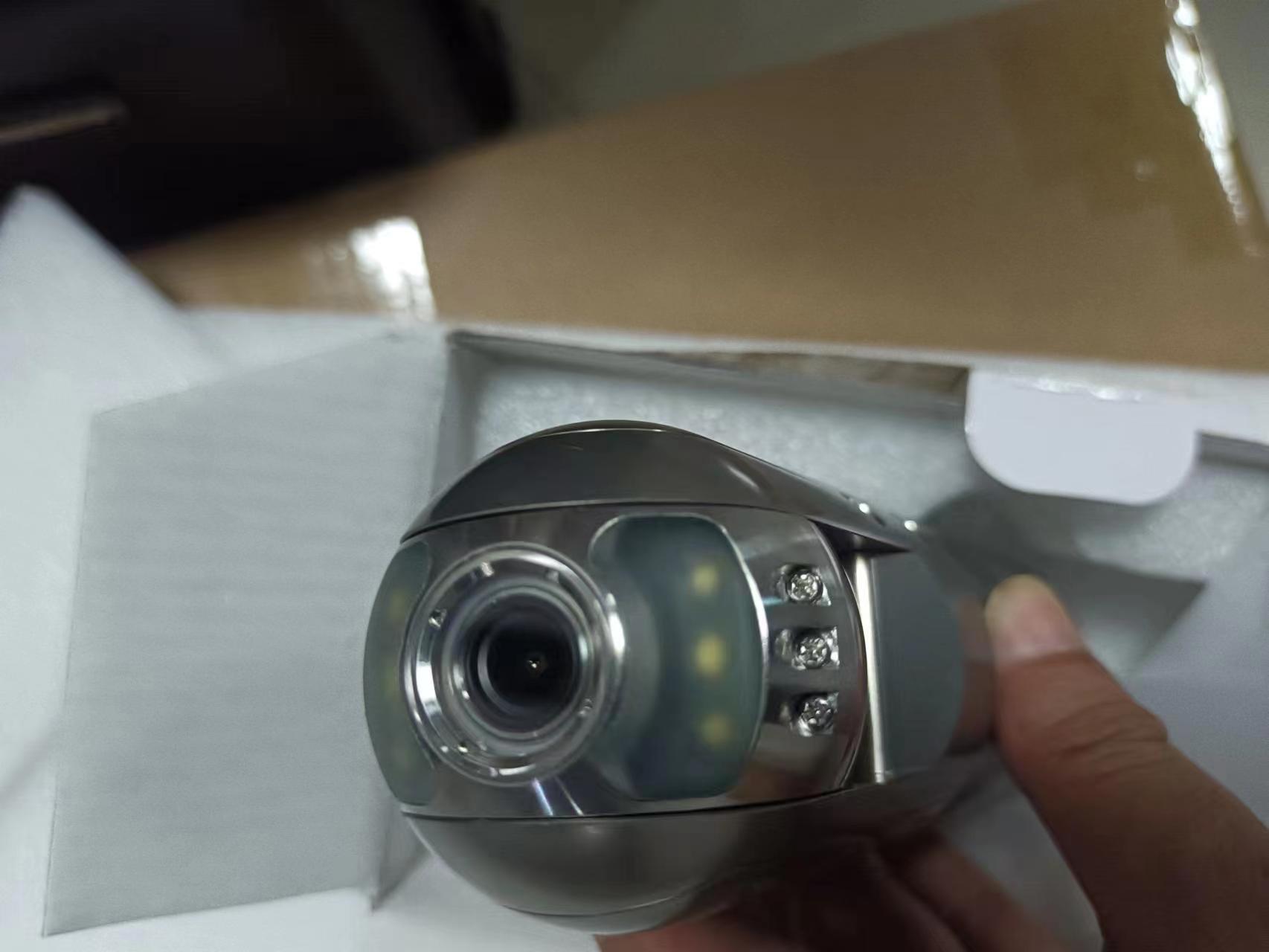

  • Camera Head.

P10000PT-1 camera head2.642.jpgP10000PT-1 image.png

* Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel

* Waterproof IP68 up to 10 bar

* View range 120°

* Rotation: Pan 360°,Tilt 180°

* lens position automatic reset

* Slip coupling for rotation axle

* 6pcs high light LED lighting adjustable

* Detachable with pins type connection to Cable Reel

* Lens window sapphire glass

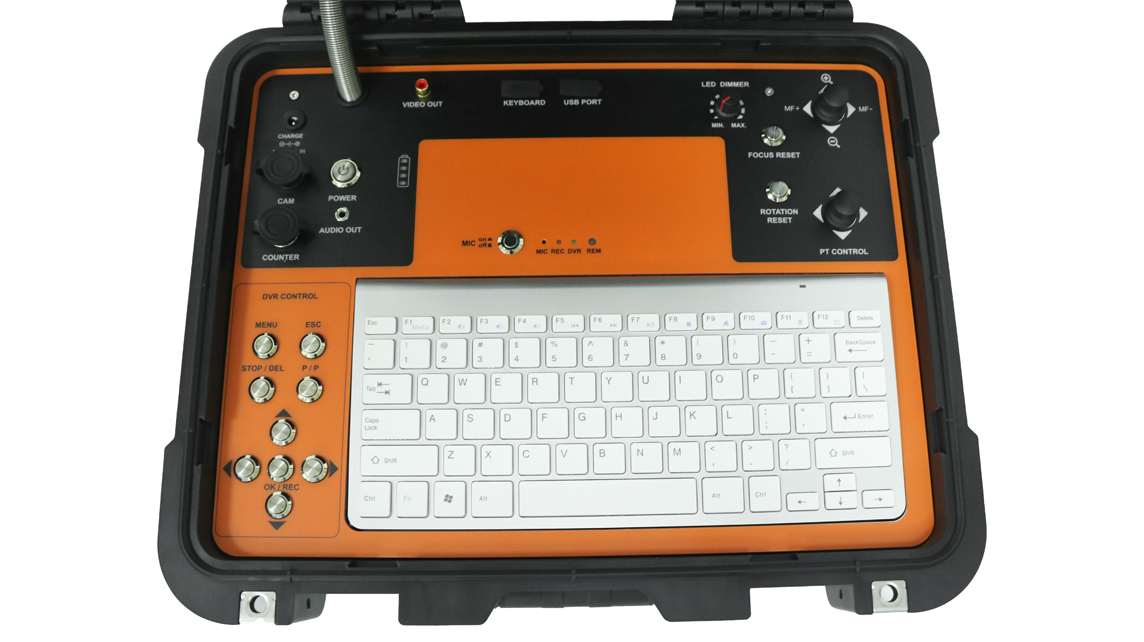

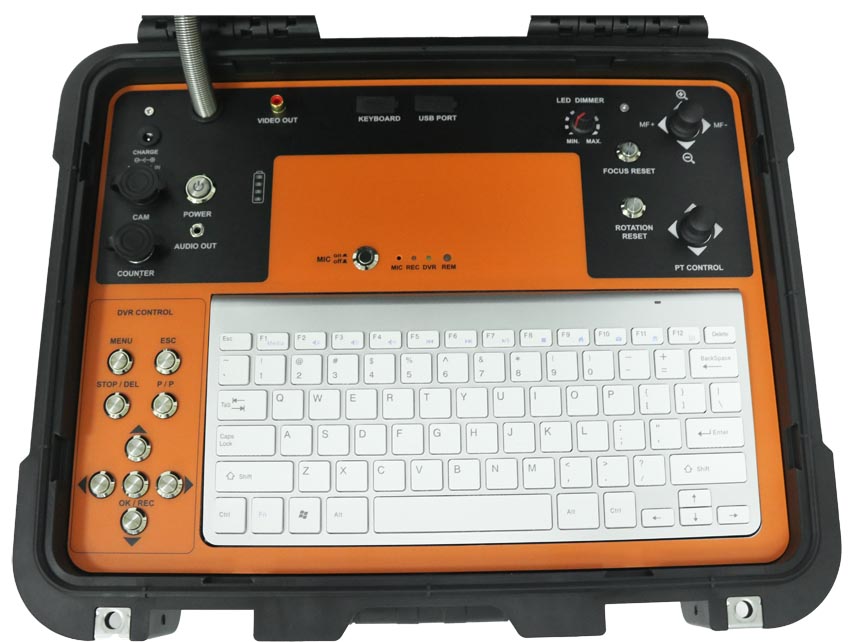

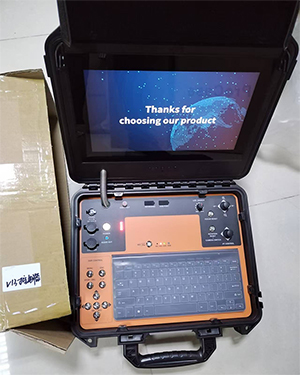

  • Control Box and Monitor.

*13"HD IPS LCD Screen, 1280X720 resolution

* PT camera Joystick.One joystick operate the movement of the PT camera, the other joystick operate for the mannual foucs that means when the camera is closely with the pipe wall, we can control the joystick to get a clear image.

*HD DVR SYSTEM with recording 720P video, auido and photography function


* Digital meter counter function, display on the screen

* 8800mA rechargeable Li-ion Battery Pack

* Battery level indicator

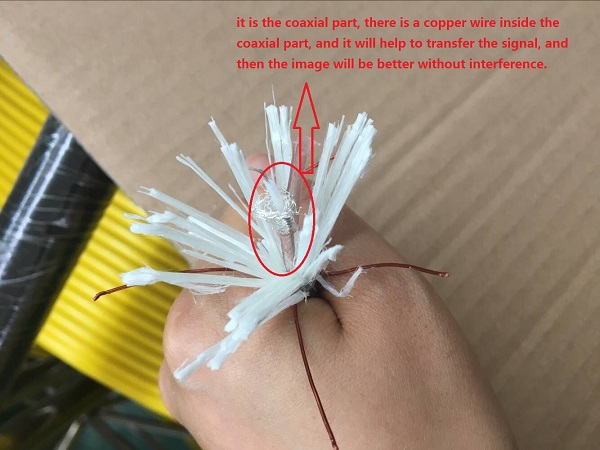

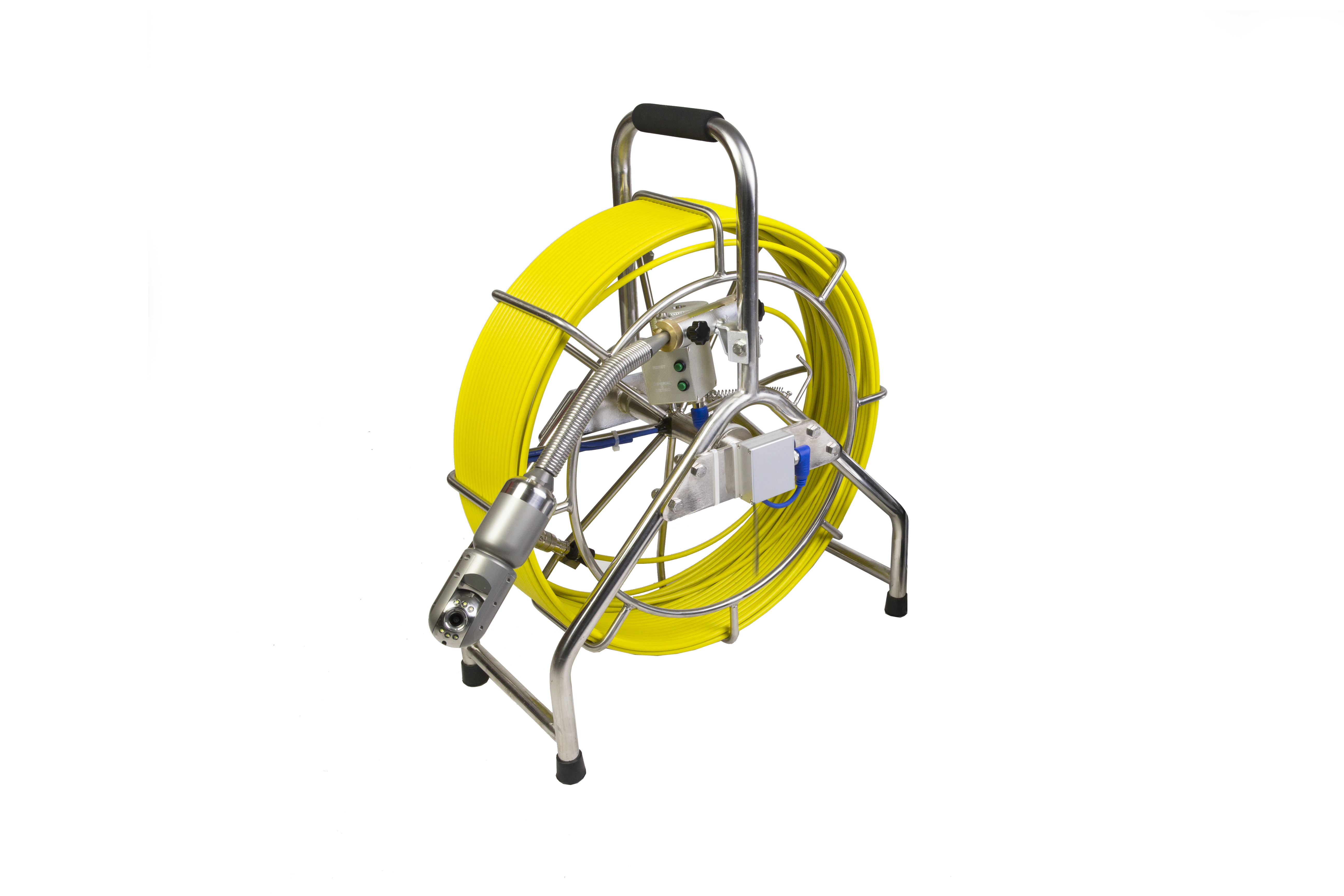

  • Cable wheel and the fiber

IMG_4630.jpgPT camera cable material  in detail600.jpg

* Fiberglass push rod cable

* Cable diameter ø7mm

* Cable length 60m

* Reel size L510 * W250 * H640mm

  • Charger and battery.

* 8800mA li-ion battery

* AC110V-240V 1.5A power charger

* Charging time 5 hours, working time 6 hours

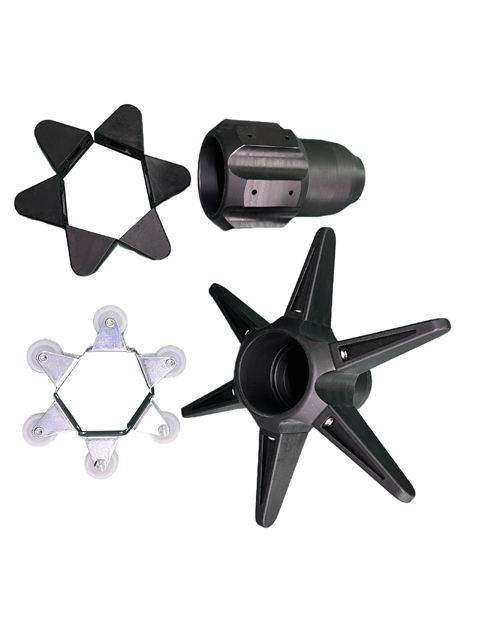

  • Skid

3 size skids2642.jpg

  • Stainless Steel skid(Option)

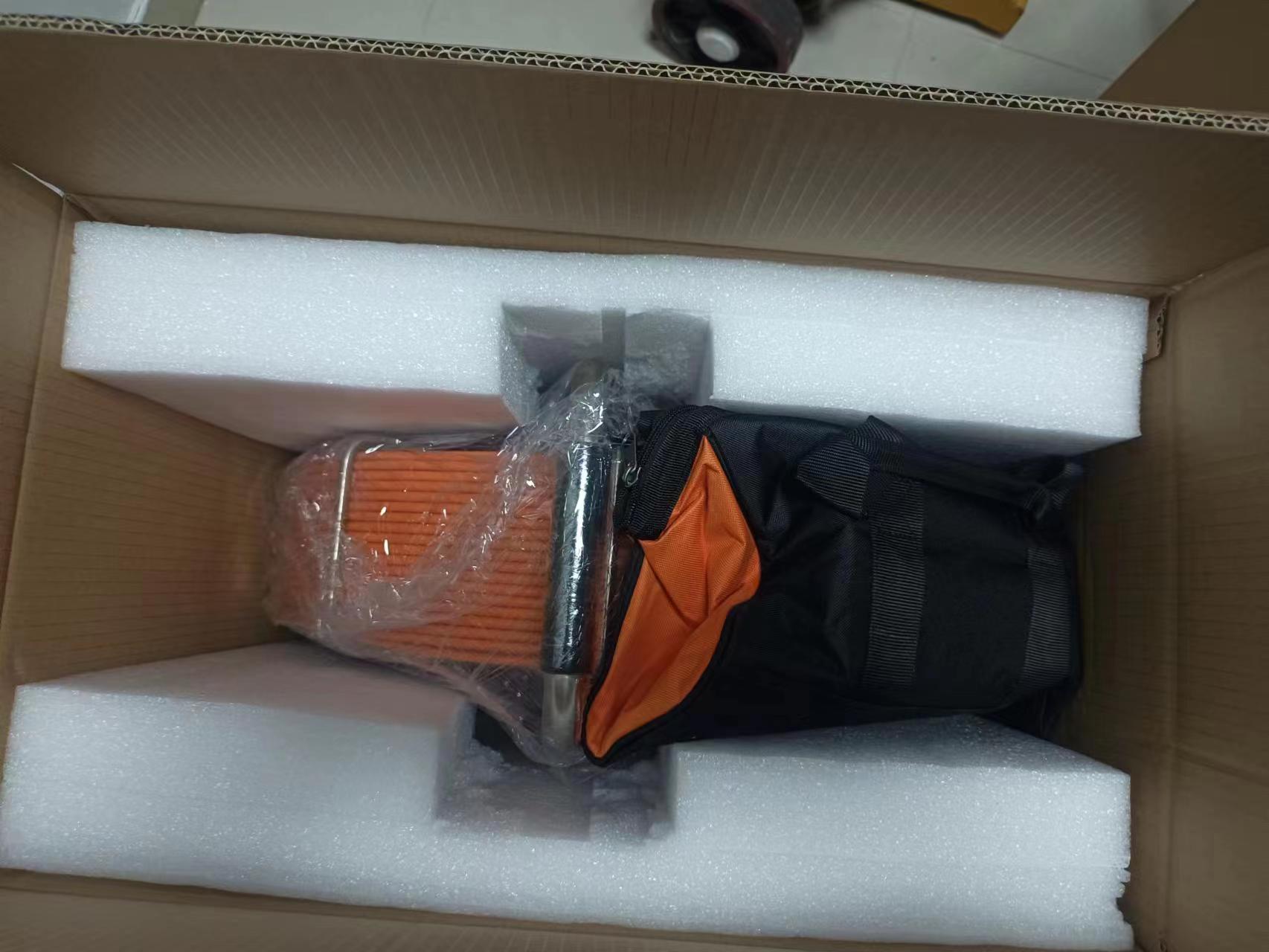

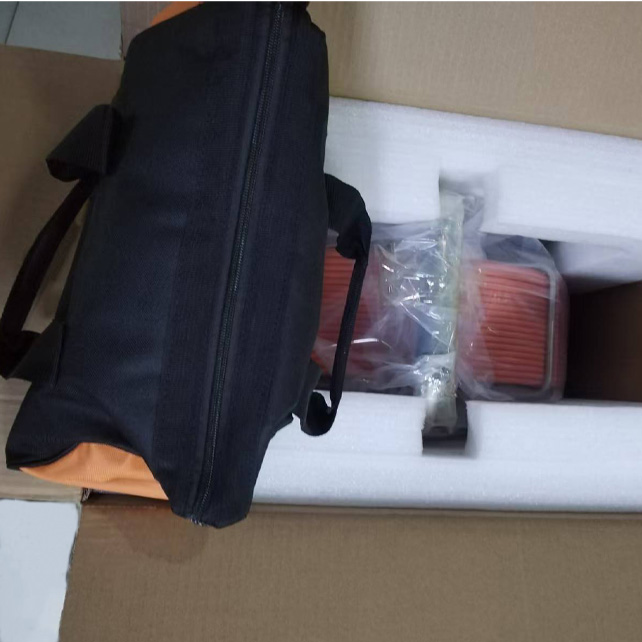

  • Each Set with 2Pcs Packing Cartons

Total weight: 36kg

2pcs Packing carton demension

 84.5 X 43.5 X 93CM,

48.5 X 21.5X42.5CM

  • Download the Detail Spec of P10000PT

1.3MP PT Pipe Inspection Camera system Spec P10000PT(13inch screen).pdf
