Nuclear Industry and Chemical Industry Underwater Inspection Camera
Nuclear Industry and Chemical Industry Underwater Inspection Camera NURR-PTZ35
Application：
Nuclear power plant
Nuclear physics experimental scene
Hot room
Spent fuel detection and processing scenarios
-
Anti-ciochemical and nuclear defense drill scenarios
Detail spec:

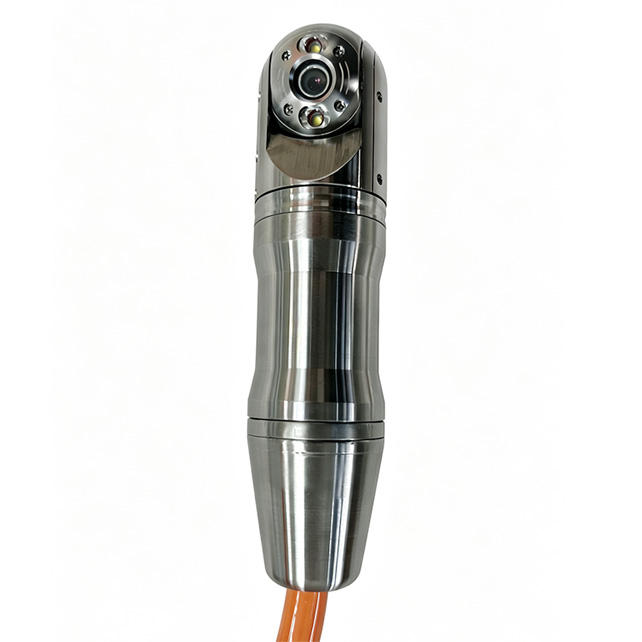

| Camera Head | |
| Dimension | Ф35mm*143.5mm(L)mm |
| Rotation | Pan:360°,Tilt:270° |
| Lens | 12mm(H:45°,V:32°);16xZoom |
| Focus | Electrical focus adjustable;Mannual Focus adjustable |
| Resolution |
2MP1920*1080P 30fps 1/1.8” SONY CMOS sensor,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
| Built-light | Led lights/2W;support flash 6W;support remote 100 levels adjustable |
| Image Color | Full color |
| Camera Hull Material | 316L stainless steel |
| Waterproof | IP68 |
| Water Depth | 200Kpa(20M max) |
| Application | Surface and under sea water,under fresh water |
| Working Humidity | 0%-100% |
| Working Temperature | -20°-55° |
| Power Supply | DC12V |
| Net Weight | 0.62KG |
| Surface Control Unit | |
| Screen | 15.6inch SPI HD display,170° wide view angle |
| Split Screen | Available |
| Waterproof | IP65 waterproof rating,to prevent jet water immersion |
| OSD Language | English |
| DVR | support for video,playback,query,copy and so on;controlling the display function |
| Audio | audio input,you can record the sound through the microphone,stored to the hard disk |
| External Jacket1 | 2pcs external RJ45 jacket, support WAN/LAN |
| External Jacket2 | 2pcs external USB jackets |
| Side Joint | Side video joint |
| Video Input | 4K/5MP/4MP/3MP/2MP 60fps |
| Storage | Built-in 500GB hard drive, long time storage 1080P HD video |
| Special | Anti-knock,effectively ensure that the internal components of normal work |
| Software | Built-in Widows system |
| Mouse | Support the mouse for quick operation |
| Video Format | H.264 and AVI |
| Built-in Battery | Buit-in 6000mAh rechargeable battery, support 6 continuous work time |
| Power Supply | DC24V |
| Adapter | 25.2V |
| Demension | 36.7cm*29.6cm*15.3cm |
| Gross/Net Weight | 4.5KG/4KG |
|
Cable Wheel | |
| Cable | Industrial cable |
| Cable Length | 20M |
| Model | Electrical Motor or Hand Push |
| Cable Length | 20M |
| Speed | 5-10mm/s |
| Control Method | Control box |
| Distance On-screen | Yes |
| Self-locking | Yes |
| Overload or Leakage Protection | Yes |
Detail Spec of the NURR-PTZ35.pdf
