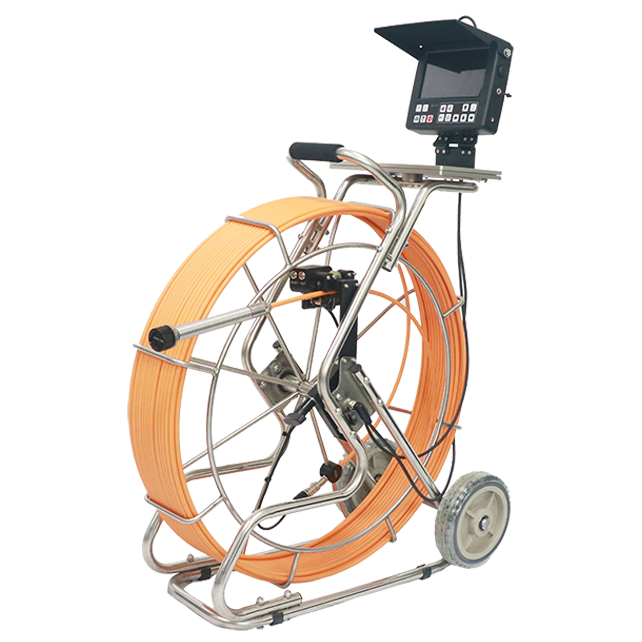

Self-level HD Pipe Inspection Camera System
Self-level HD Pipe Inspection Camera System P10002SCM

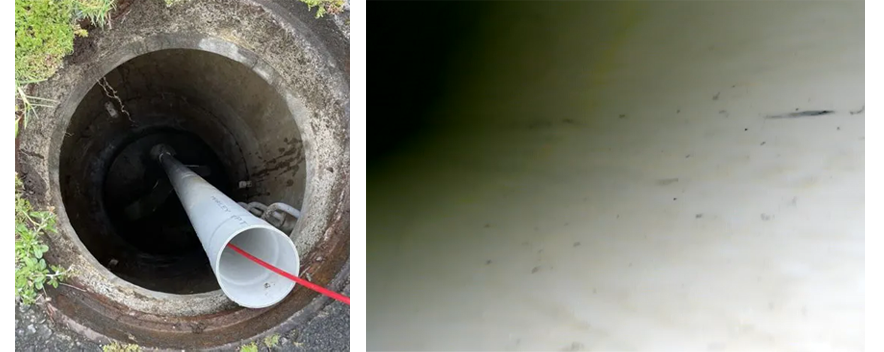

Application:
Municipal and civil infrastructure
CCTV drain pipe sewer inspection
Residential and commercial plumbing
Building duct and HVAC/R systems
-
All other surface visual applications
Advantage:
Ф40mm self-level HD camera head for dia 50mm-500mm pipe
IPwaterproof up to 10bars
8”Portable and multi-function control box
Vdeo/audio/text recording
Built-in 8800mA Li-ion battery,support unit working more than 6 hours
Digital meter-counter function,error is less than 1%
| Detail spec: | |

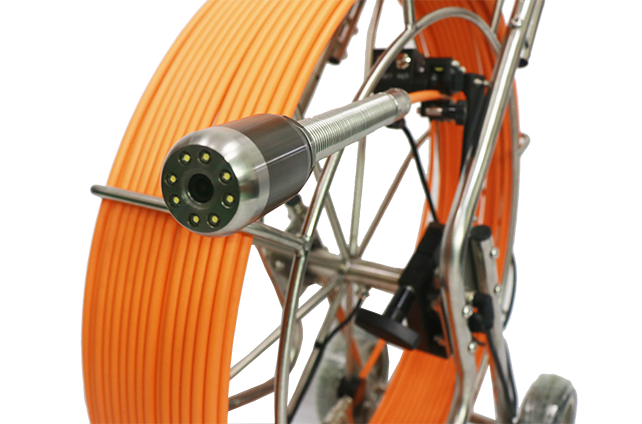

| Camera Head | |
|
Camera size Ø40mm*60mm |
| IP68 waterproof up to 10 bar | |
| View range 90° | |
8 super light LEDs (adjustable) | |
| Camera lens window material sapphire glass | |
| Built-in 512HZ transmitter(optional) | |

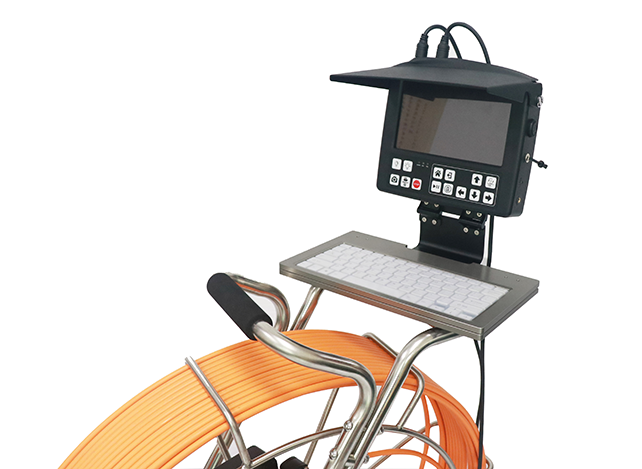

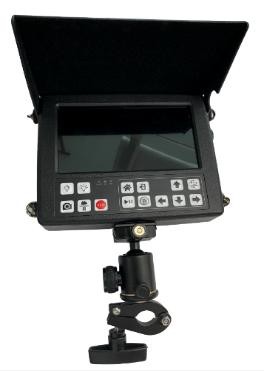

Control Box and Monitor | |
|
8"HD IPS LCD screen with sunshade, 1280X720 resolution, 16:9 display model |
| HD DVR system with recording 720P video,AVI video format | |
| USB wireless keyboard real time typewriting | |
| Built-in 7000mA rechargeable li-ion battery pack | |
| Battery level indicator | |
| Can be mounted on the cable reel,handheld,or hung around the neck (optional) | |
| Digital Meter-counter Cable | |
|
|
Fiberglass coaxial push rod cable,it can make good camera image for long cable |
| Cable diameter ø7mm | |
| Cable length 60m | |
| Reel size 510(L)*250(W)*640(H)mm | |
| Digital meter counter function,error is less than 1% | |
| Adaptor | |

|
8800mA li-ion battery |
| AC110V-240V 1.5A power charger | |
Charging time 5 hours,working time 6 hours | |
| Skids | |
 |
Big skids:Φ215mm |
| Small skids:Φ130mm | |
| Packing | |
| Total weight | 12KG |
| Packing carton size | 59x35x69cm;40X30X30cm |
