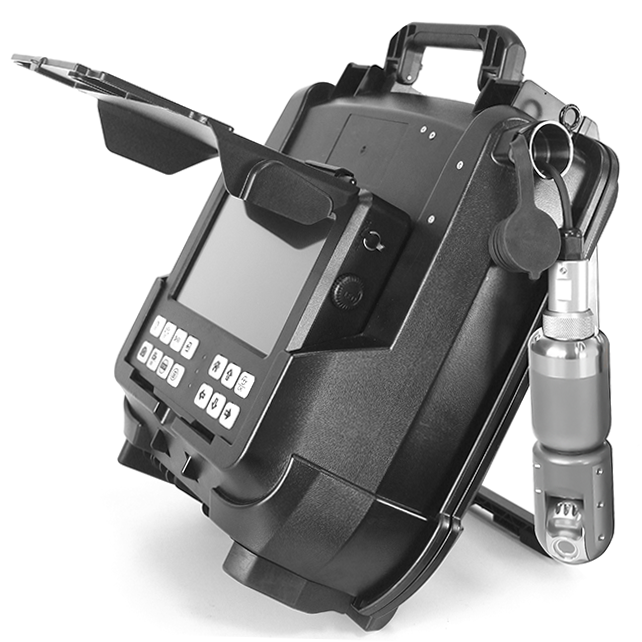

Portable 360°Rotate Chimney Inspection Camera

Portable 360° Rotate Chimney Inspection Camera CS0050PT


Application:

  • Industrial Chimney and Stack Inspection

  • Fireplace and Hearth Inspection

  • Brick Kiln and Industrial Furnace Inspection

  • HVAC and Ventilation Duct Inspection

  • Marine Exhaust Uptake Inspection

  • Pipe Blockage Situation,etc


 Detail spec:

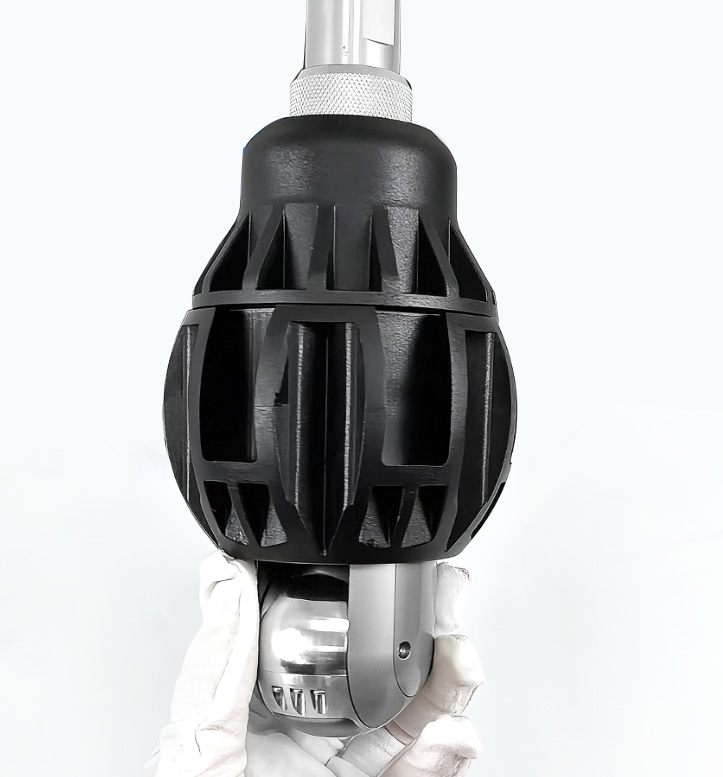

  • Camera Head


* Camera size 50mm x 154mm, sensor 1/3" CMOS,HD 1080P Full HD pix

* Waterproof IP68 up to 10 bar

* View range 120°

* Rotation: Pan 360°, Tilt 180°

* lens position automatic reset

* 6pcs high light LED lighting adjustable

Detachable connection to cable reel

* Lens window sapphire glass

* Stainless steel LED cover,anti-scratch

* Built-in 512Hz transmitter optional

* Camera option #1:Φ33mm PT head.Water depth:50M

* Camera option #2:Φ29mm fix lens.  Water depth:100M

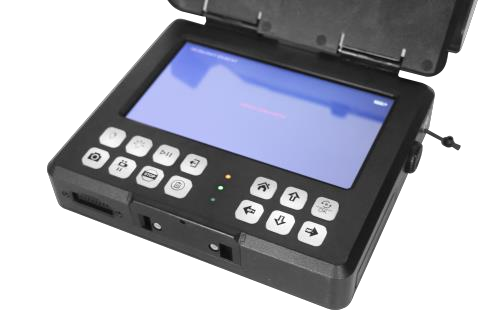

  • DVR Control Unit



* 8"HD IPS LCD Screen,waterproof panel1280X720 resolution

* Waterproof keys for DVR function

* 720P MP4 format video,audio and photography function

* Video input port (Compatiable different camera head)

* 6800mA rechargeable Li-ion battery pack

* Battery level indicator

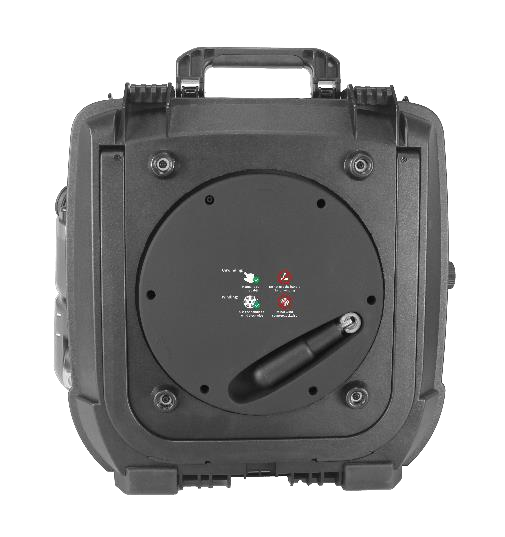

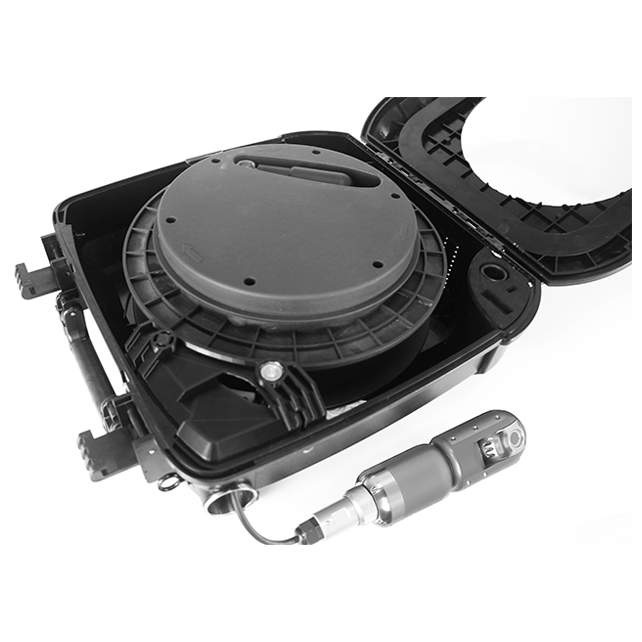

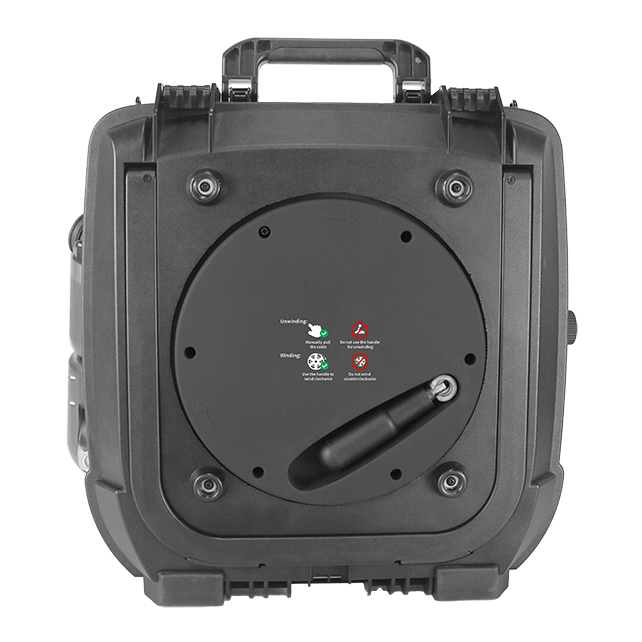

  • Cable Wheel


* 30m-50m soft handle cable reel

* With digital meter-counter

* Cable diameter ø5mm


  • Other


*Shoulder strap and belt for helping hang on the neck


  • Packing

*Total weight:9KG

*Packing carton size:56cm*23cm*48cm


Detail Spec of CS0050PT.pdf

Product Downloads

Detail Spec Download
