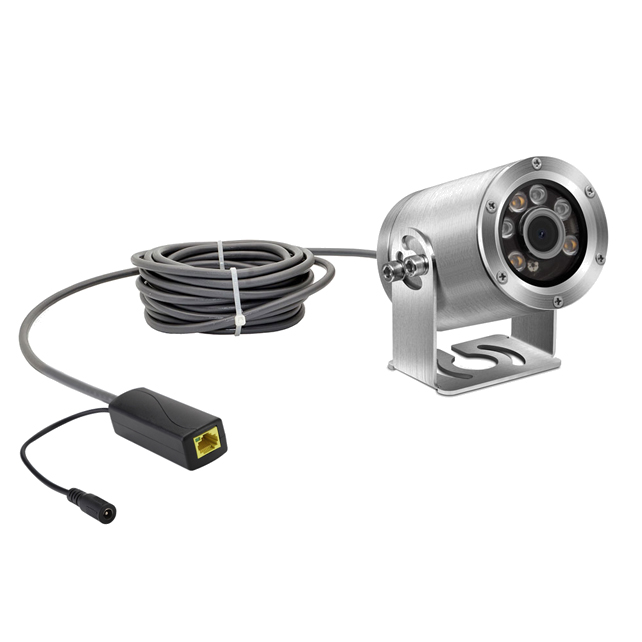

8MM Lens 5MP 25FPS Underwater IP Camera

8MM Lens 5MP 25FPS Underwater IP Camera DZ10010-SS(UW-S5-3CX)

Application:

  • Marine farm inspection

  • Fish pen net inspection

  • Offshore survey

  • Analusis of the underwater ecosystem

  • Seawater and freshwater research

  • Hydrological research

  • Subsea survey

  • Another visual applications


Detail spec of the DZ10010-SS(UW-S5-3C)

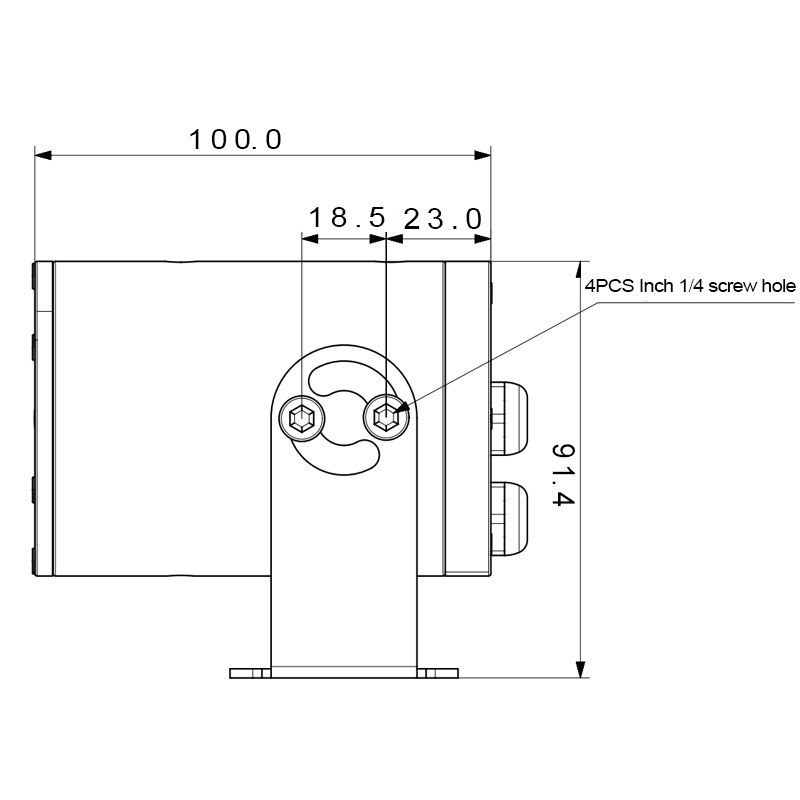

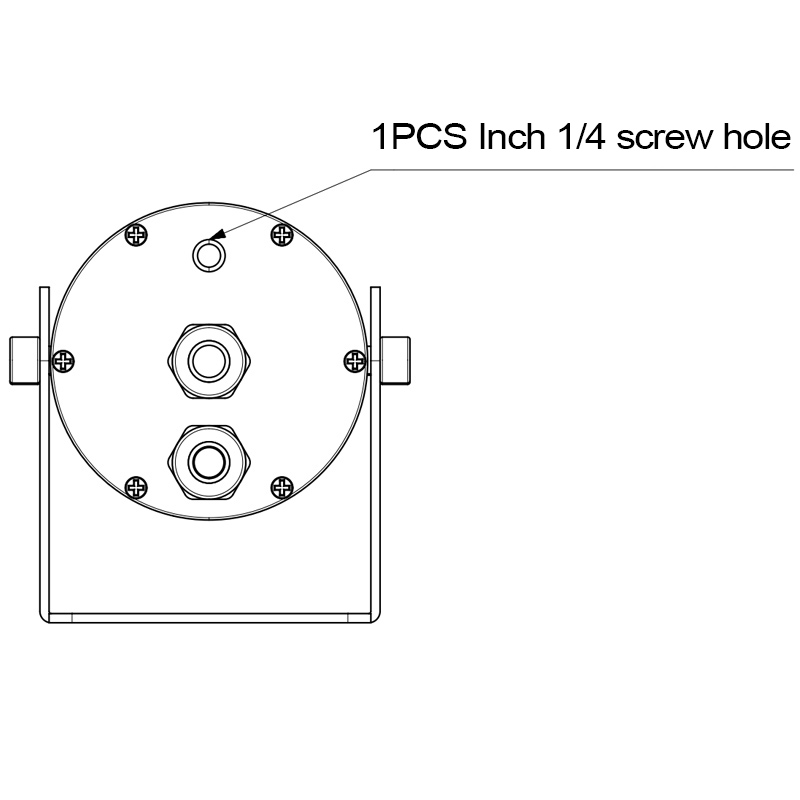

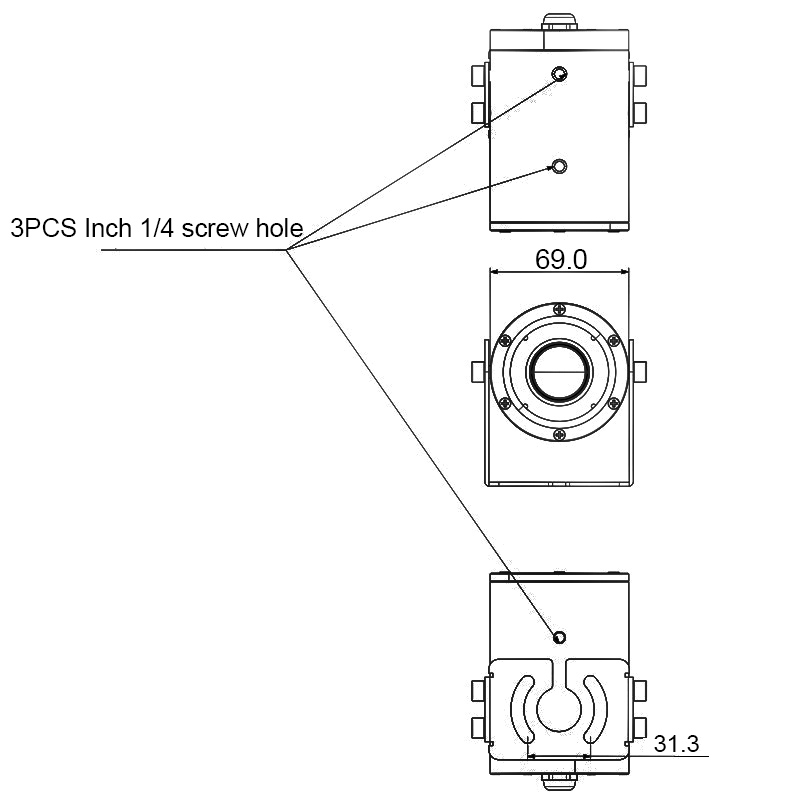

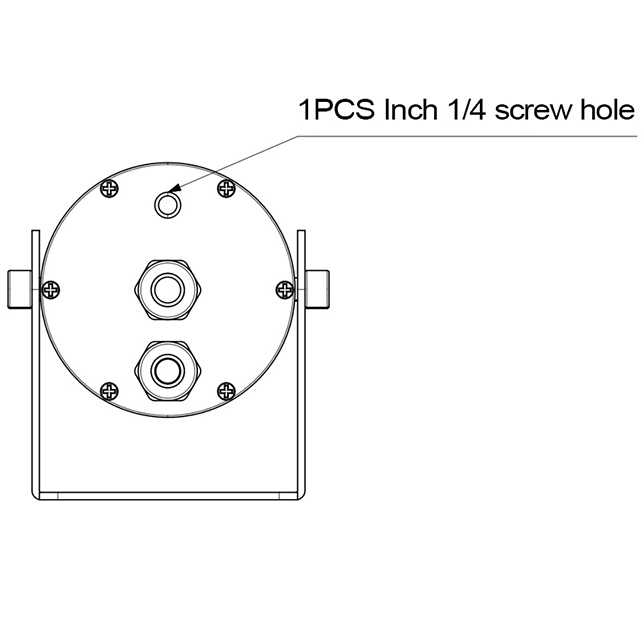

Camera Dimension Ф70mm*100mm(L)
Lens 2.8mm (H.FOV:100°),lens
Sensor 1/2.7" OV CMOS sensor,color 0.01Lux F1.2,black/white 0.001Lux F1.2
Resolution 5MP 2592×1520P 25FPS
Illumination 3pcs led lights and 4 pcs infrared lights,10 level brightness level;400Lumen Water depth
Water depth  500Kpa (50M)
Camera Housing 316L stainess stee


Cable

The default length is 10 meters (the longest is no more than 80 meters),PU  material,Diameter 7MM.Resistance to 60KG pull,Anti-aging,Anti-friction,Resistance to  seawater corrosion,Special underwater wire.
Support device Support iOS, Android, computer, NVR.Compatible with hikvision, dahua, proprietary  protocol.(Only support windows-IE browser for camera internal parameter setting)
Supporting agreement IPv4/IPv6,802.1x,HTTPS,HTTP,TCP/IP,UDP,RTP,RTCP,UPNP,RTSP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,RTSP,ONVIF;SDK Secondary development
Use environment Sea water / fresh water /Underwater,land,Car,Shipborne.
Working humidity 0%-100%
working temperature -20°~55°





Power Supply

Cable length ≤ 10 meters;3 options:

Default options 1:DC12V/POE 48V-54V IEEE.802.af power input and output pin: 1, 2 (+) /  3, 6 (-);

options 2:DC12-DC28V/AC12-AC28V;

options 3:POE 48V-54V IEEE.802.af power input and output pin:1,2 (+)/3,6(-),4,5(+)/7,8 (-);

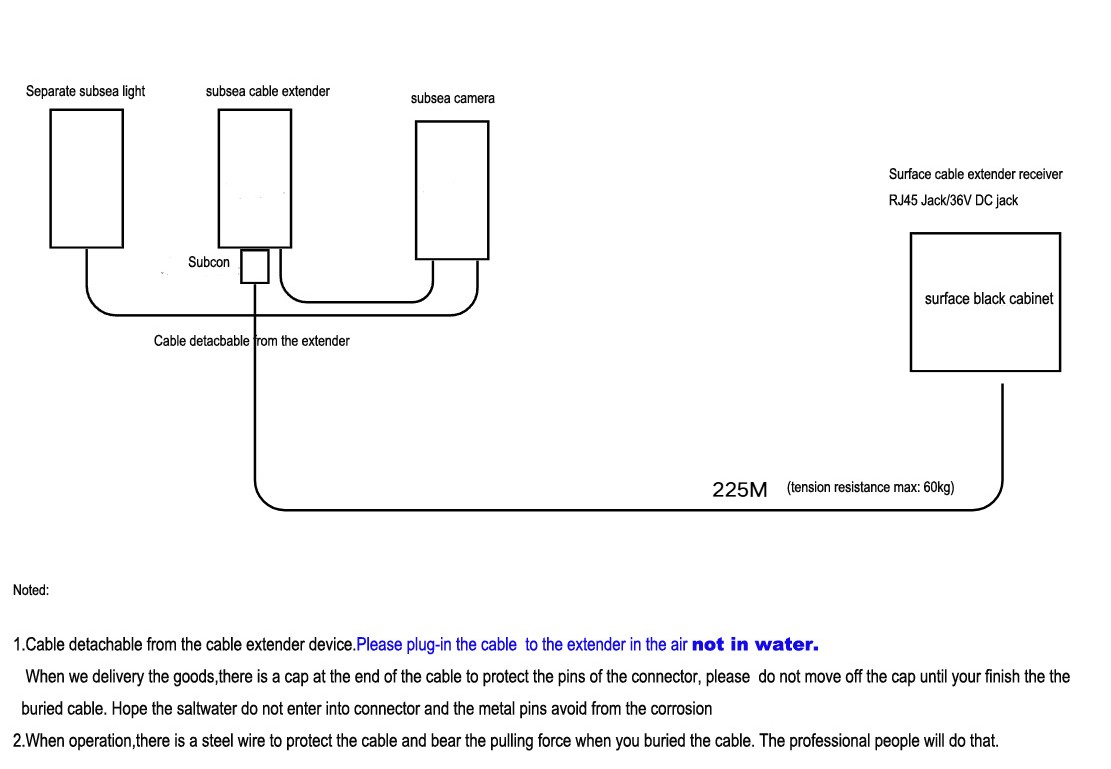

Cable length 11-70 meters;2 options:

options 1:DC24V/AC24V;

options 2:POE 48V-54V IEEE.802.af power input and output pin:1, 2 (+)/3,6 (-),4,5(+)/7,8 (-);

Net weight 2KG


Package

1* camera

1* camera bracket

1*U disk (instruction and software)

Please kindly download the detail spec from the link as follows:

Spec of DZ10010-SS UW-S5-3CX.pdf

Product Downloads

Detail Spec Download
