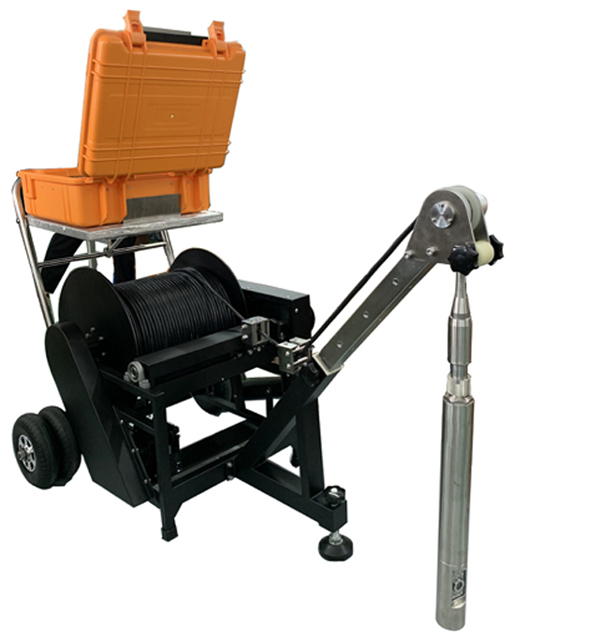

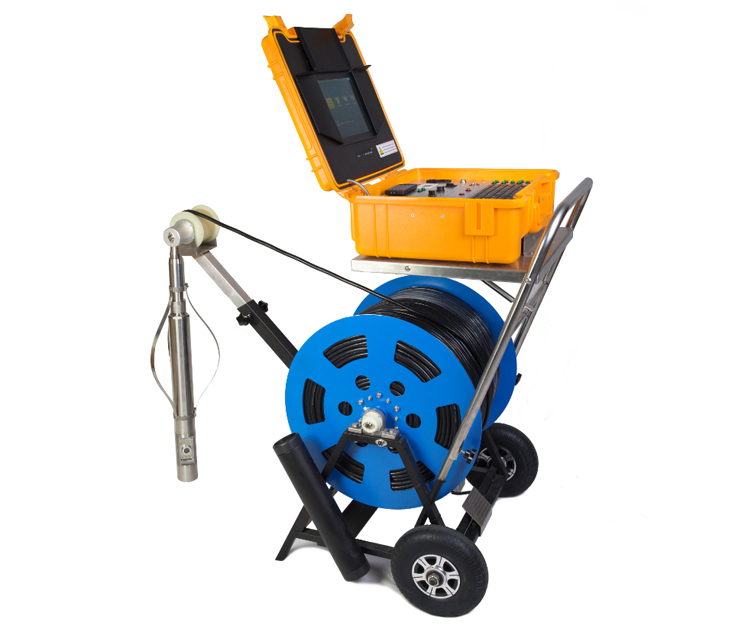

Vicam Dual and Rotating Borehole Inspection Camera System


Vicam Dual and Rotating Borehole Inspection Camera System P10010PT-Dual




  • Ф63*57mm camera waterproof 50Bar(725PSI),stainless steel camera housing

  • With stainless steel centeral star

  • 200M-500M electrical twist cable wheel with auto wiring arranging system

  • Suitcase with 10inch screen and video/audio recording

  • Built-in 128G DISK for storage and wifi

  • Distance on -screen

  • Built-in temperature sensor and compass

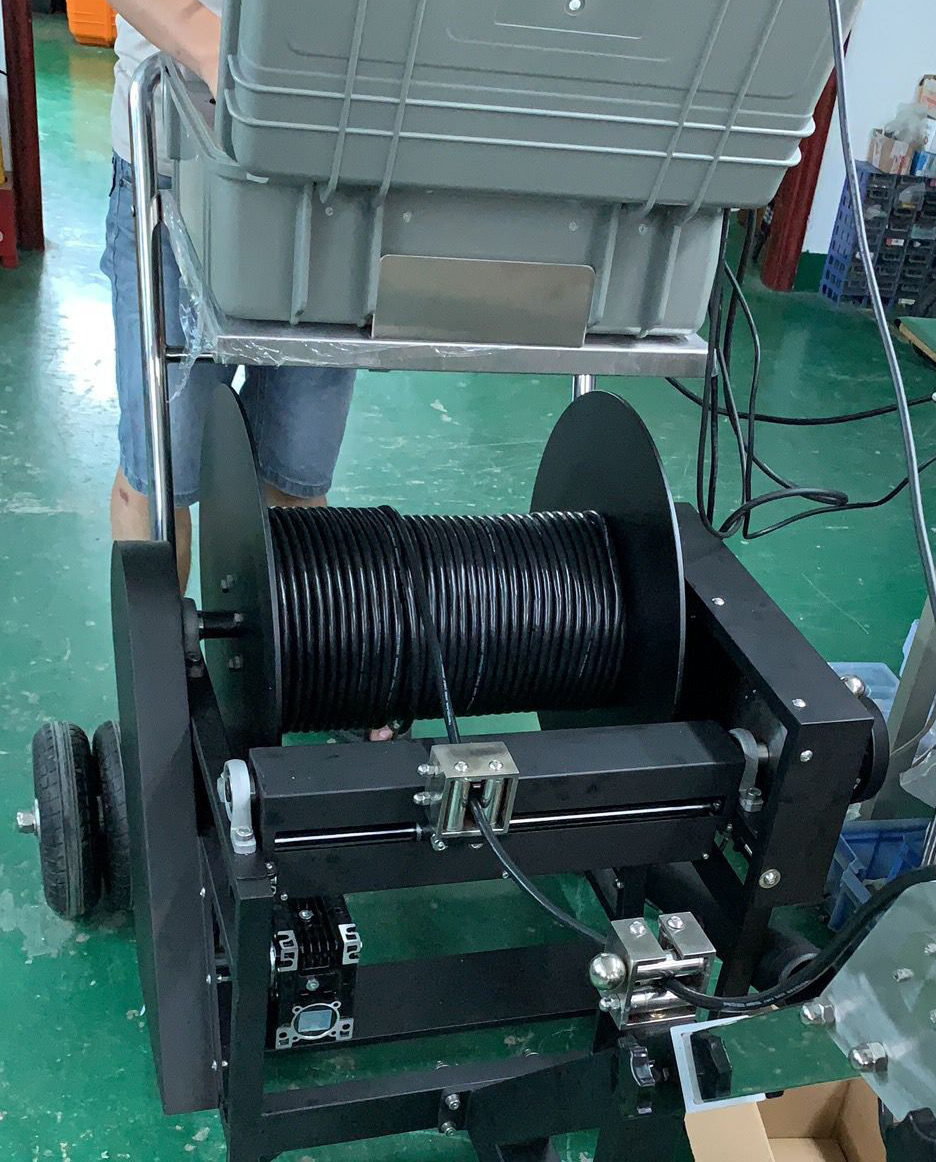

Auto-wiring arranging system                                            Side view 360° rotating endless and side 120°view angle



Auto wirring arranging system.jpgAuto wirring arranging system.jpg                                  P10010PT-Dual Camera Detail.jpg

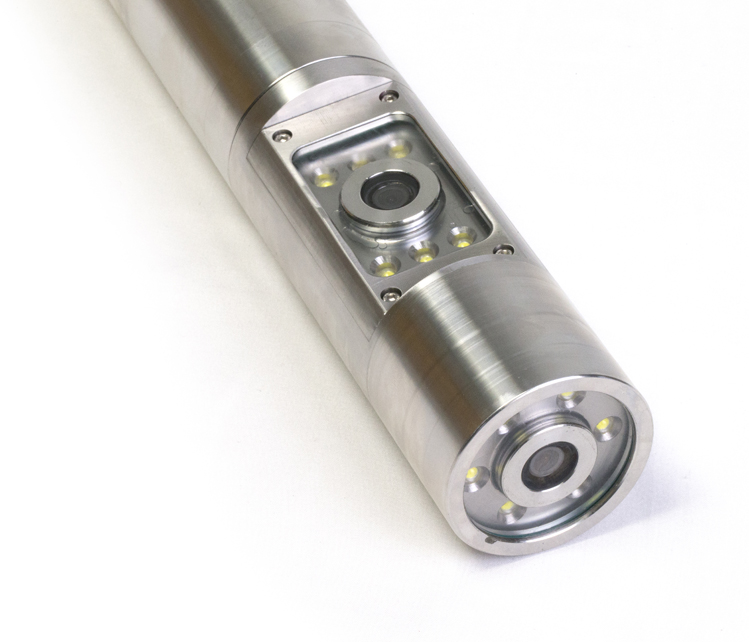

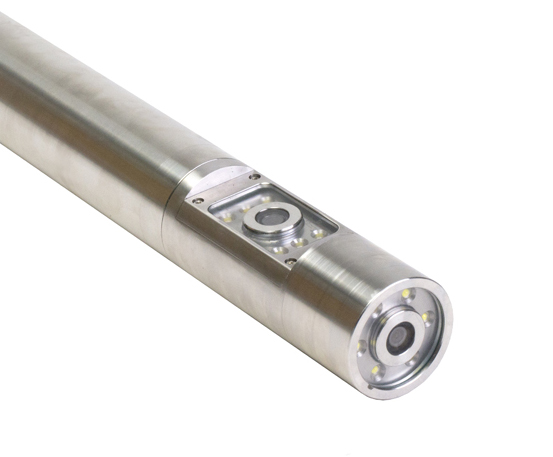

Camera Head

Φ63mm L570mm Stainless steel casing

* Waterproof IP68 Operating depth 50 bars (725 PSI)

* Dual Camera Down & Side viewing

* Pan 360° rotate endless

* View angle 120°

* Sensor resolution PAL 720H×576V NTSC 720H*480V

* Horizontal resolution 700 TVL

* 6pcs high light LED (down view)

* 6pcs high light LED (side view)

* Camera weight 5KG



Electric Winch

* Winding speed0~20m/min

* Cable speed adjustable

Φ10.5mm twisted pair cable 100-500m length

* Power supply AC 110/AC230V,DC12~24V

* On screen depth encoder

* Electric cable rolling





Monitor:

* 10" industrial color monitor

* Display model 4:3

* Resolution 1024*768

* Menu language 9 languages optional

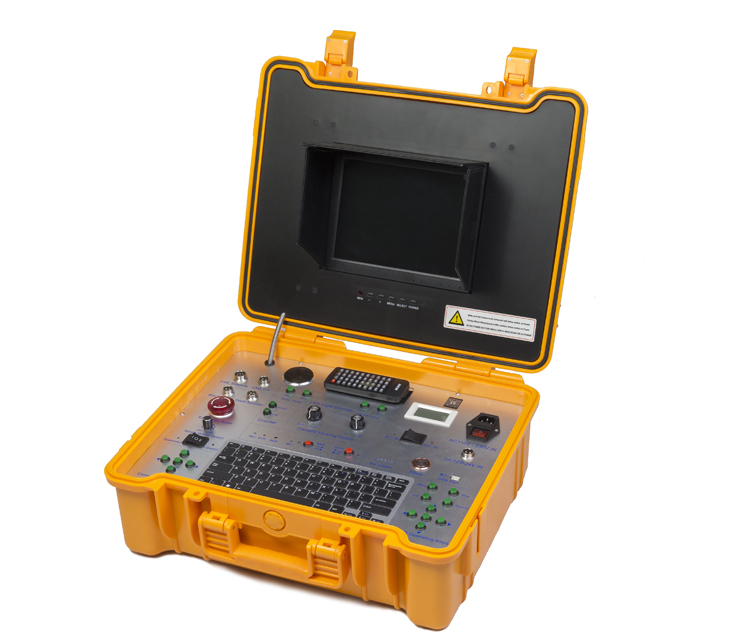

Control Panel

* Video input option: Borehole camera or Pan & Tilt camera

* Winch operating knobadjusting speed,cable up and down,brake

* Camera rotation control button (clockwise and counterclockwise)

* Down and side camera select button and LED brightness control button

* HD DVR Audio/Video recording & playback

* Video storage Medium: Built in 128GB SSD or USB device

* On-screen depth encoder,temperature and compass

Built in WIFI transmitter

* Using intelligent terminals as display and recording device

* Transmitter distance 30m

* Through WIFI wireless transmit video to Android,Apply OS or MID terminal

* Non-interference for 2.4G wireless remote control

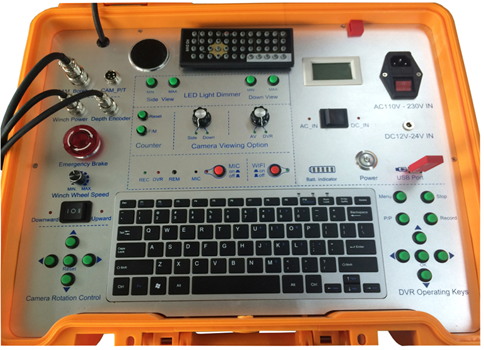

Control   Unit Panel Buttons Function Declaration

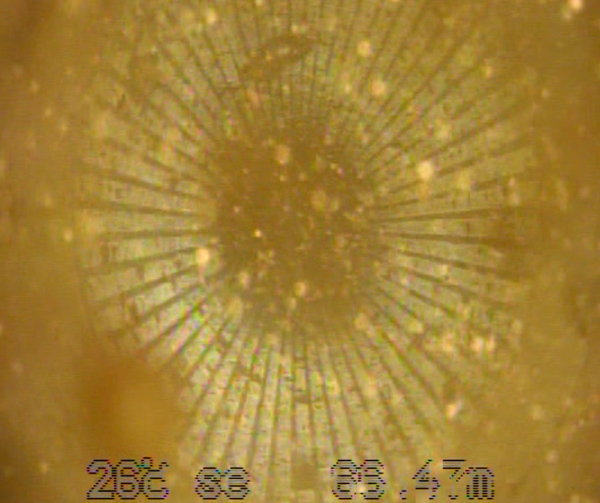

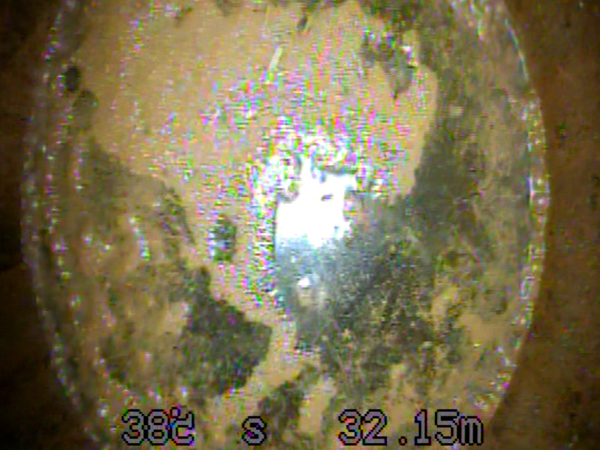

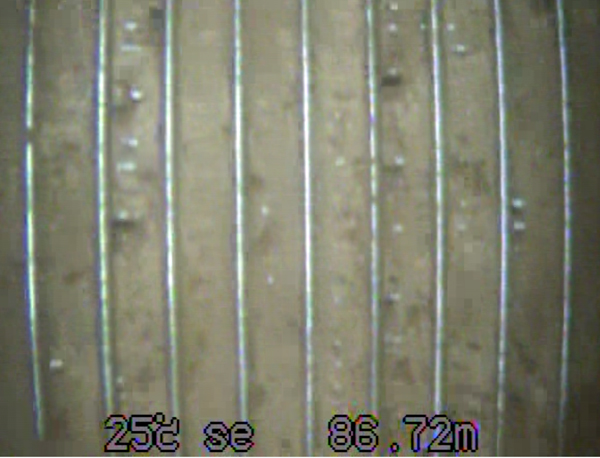

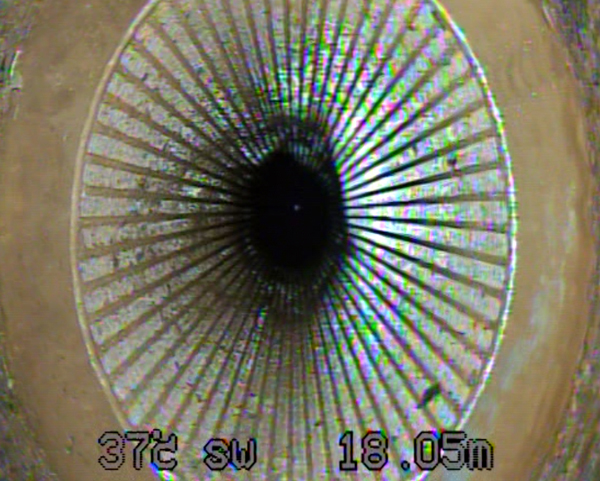

  • Camera Image When It Working On Site

    D10010PT-Dual-1.jpg D10010PT-Dual-2.jpg

    D10010PT-Dual-3.jpg D10010PT-Dual-4.jpg

  • Wooden Case for Protecting the Equipment Well in Transportation

    Packing Carton.jpg

  • Please Download the Detail Spec

Detail Spec of  sheet of D10010PT-Dual.pdf


  • D10010PT-Dual Easy of operation suitcase

         https://youtu.be/kxTA-Ur7_d4


  • D10010PT-Dual  side lens 360° rotating and bottom lens with wide view angel

         https://youtu.be/IAPPyesAp90
