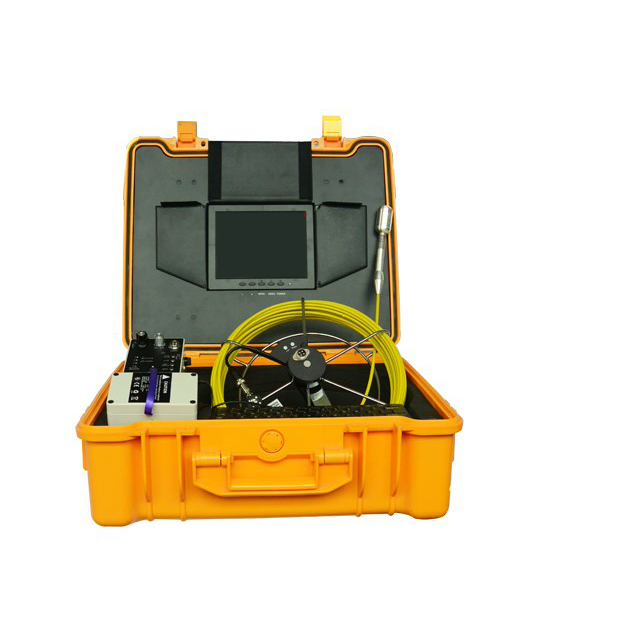

P10000DK Push Rod Pipe Inspection Camera System

Push Rod Pipe Inspection Camera System

Item: D10000PK

4.Testing of P10000DK.jpg

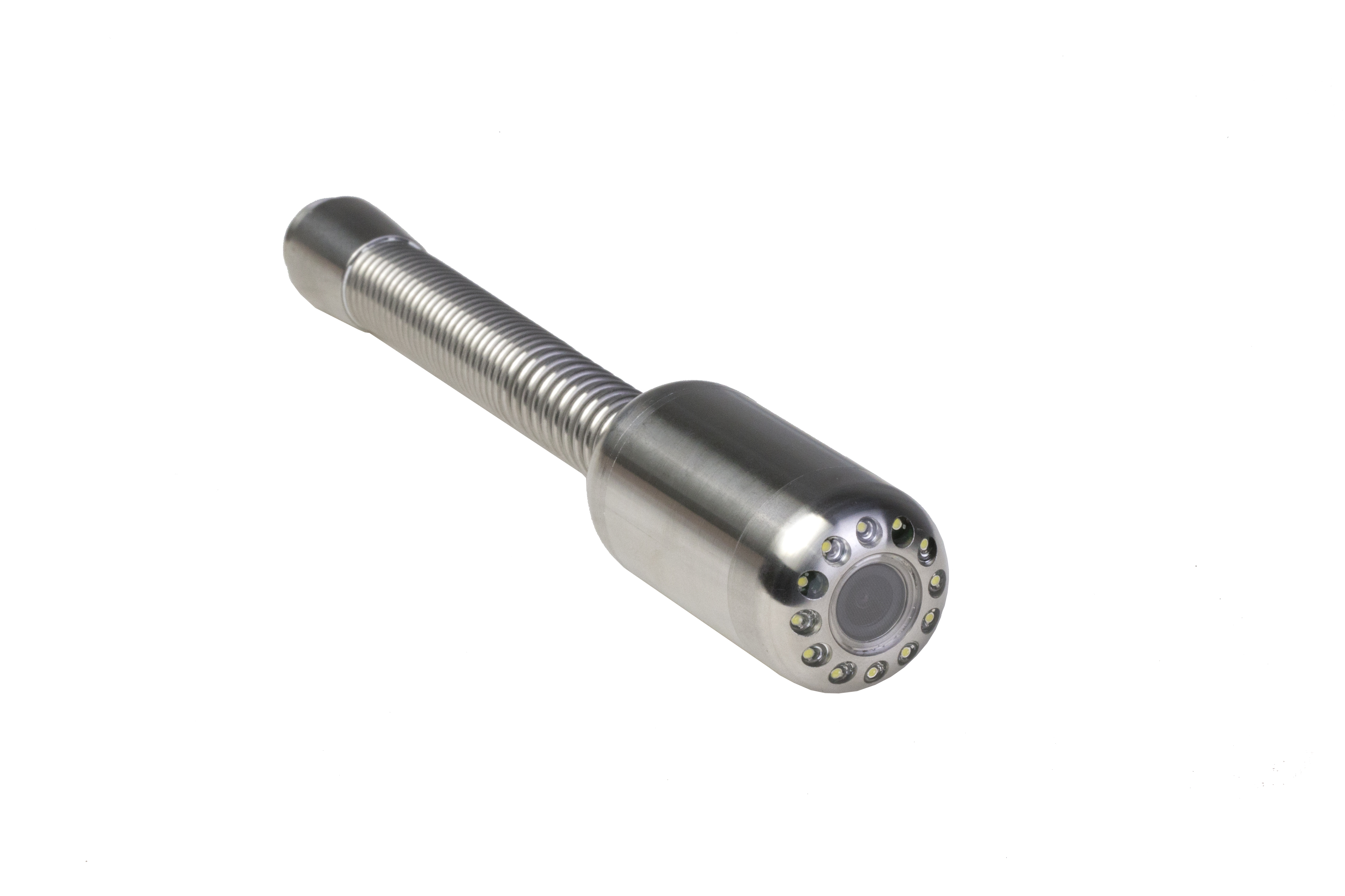

  • Camera Head.

Φ23mm camera head                 Φ29mm self-level camera is option        Both of them are detachable from the cable wheel

image.png  29mm self-level camera head forP10001DK.jpg

* Camera head size Φ23 x 53mm for pipe Φ25 to 200mm

* 600TVL 1/4’’ CMOS camera

* Camera head casing material stainless steel

* Total Pixels PAL 720X576   NTSC 720X 480

* Field of view 120°,IP68 waterproof

* 12 pcs high intensity white LED

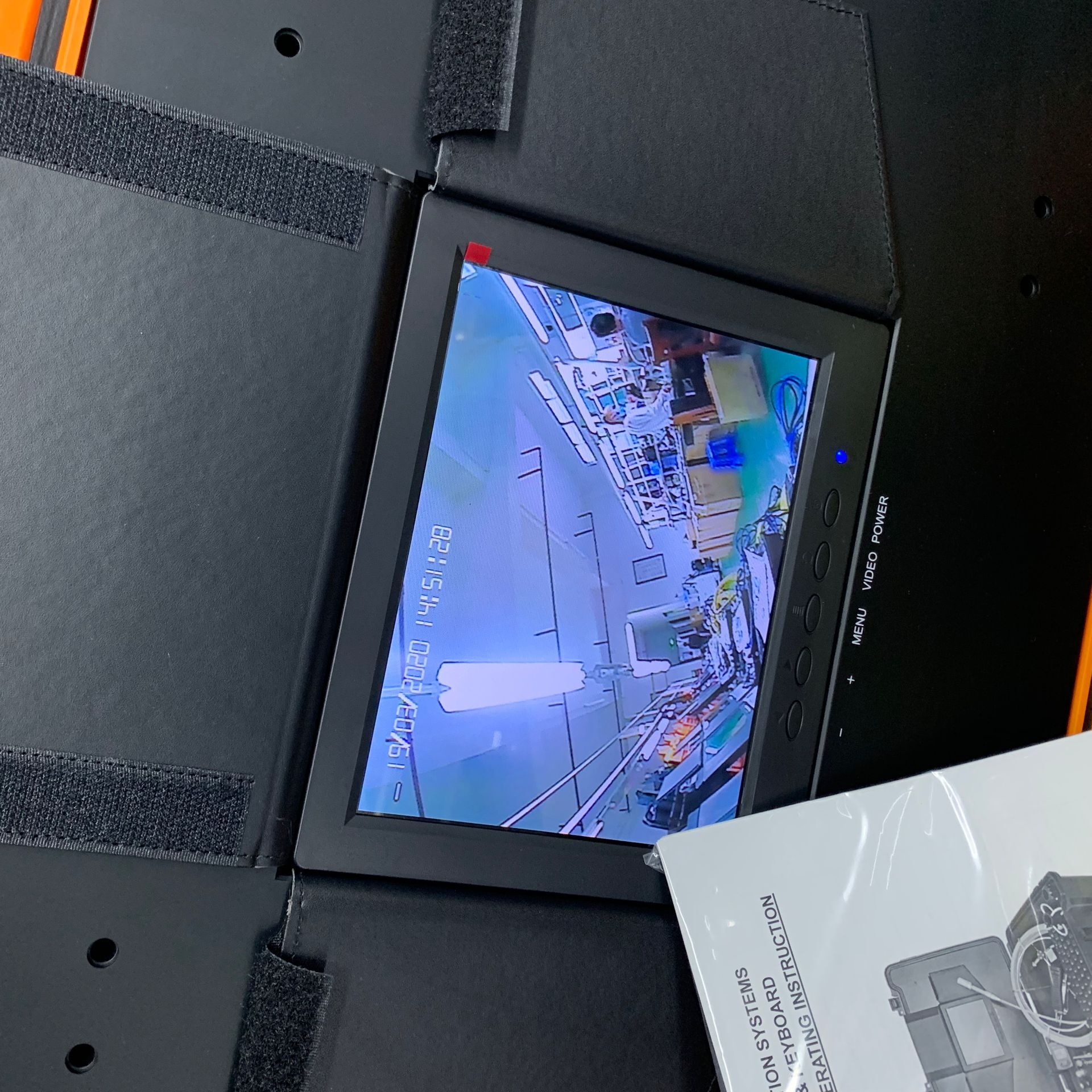

  • 8inch LCD Screen

image.png Testing Picture (2).jpg

* 8 inch TFT LCD monitor

* 800x600 pixels

* 4:3 display model

* Brightness:400cd/m2

* Sun shield and remote control included

  • DVR and Control Box


 * DVR control buttons

 * SD card (max 64G) jack,keyboard jack

 * LED brightness adjusting knob

 * A / V & photo selection available

 * On/off microphone control button

 * Battery level indicator lights

  * Video / audio output to another screen

  • Cable Wheel


* Fibreglass push rod cable

 * Cable diameter Φ5.2mm

* Cable length from 20m to 50 optional

* Reel size Φ 320 x 110mm

  • Battery and Charger


* 6600mA li-ion battery

* AC110V-240V 1.5A power charger

* Charging time 5 hours, working time 6 hours

  • ABS carry case


* Case size:  520 x 435 x 200mm

* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum

* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

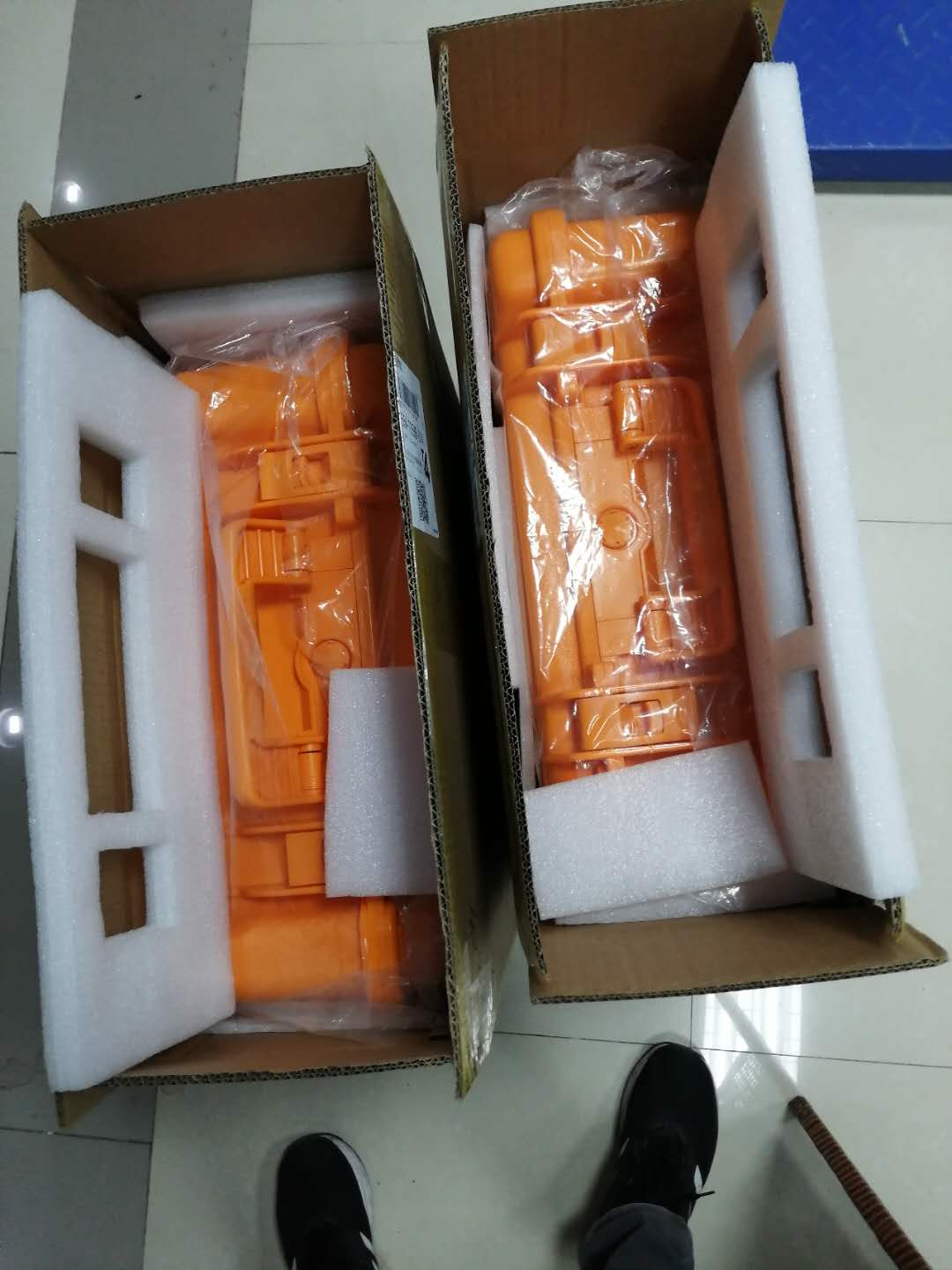

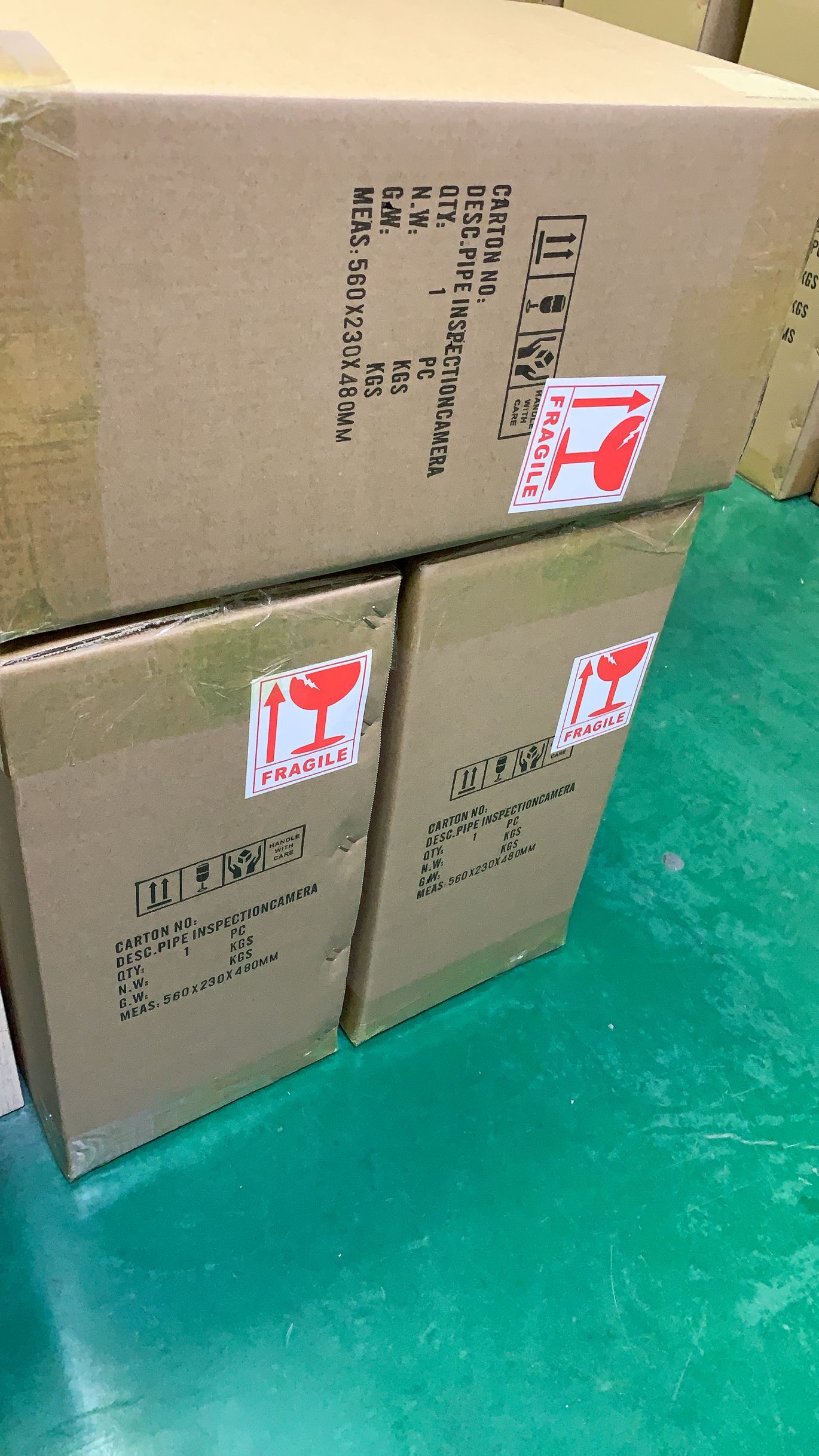

  • Packing cartons

Packing carton size: L538*W438*H480mm

Gross wet: 11.5kg

P10000DK 202001.jpg  Packing cartons of the P10000DK.jpg

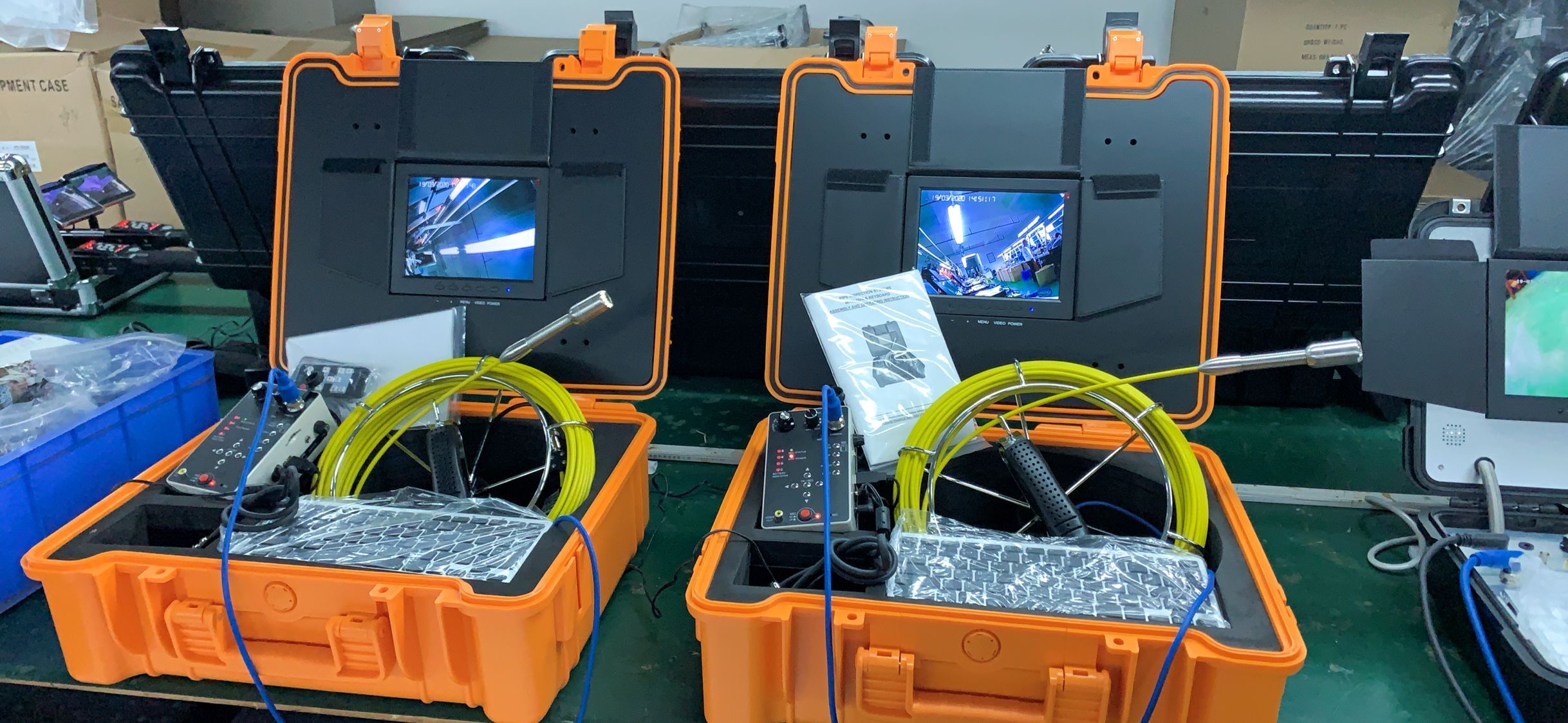

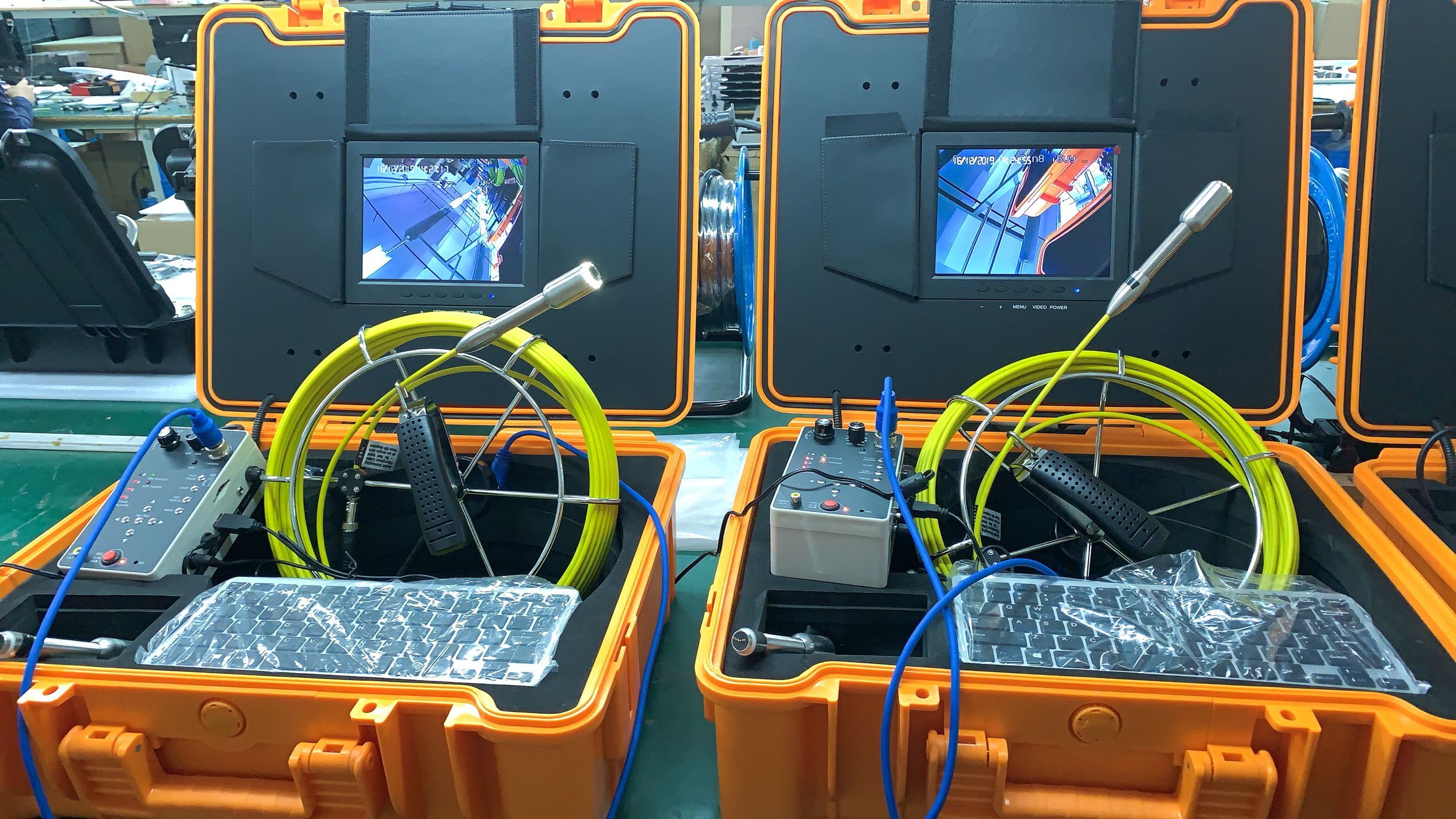

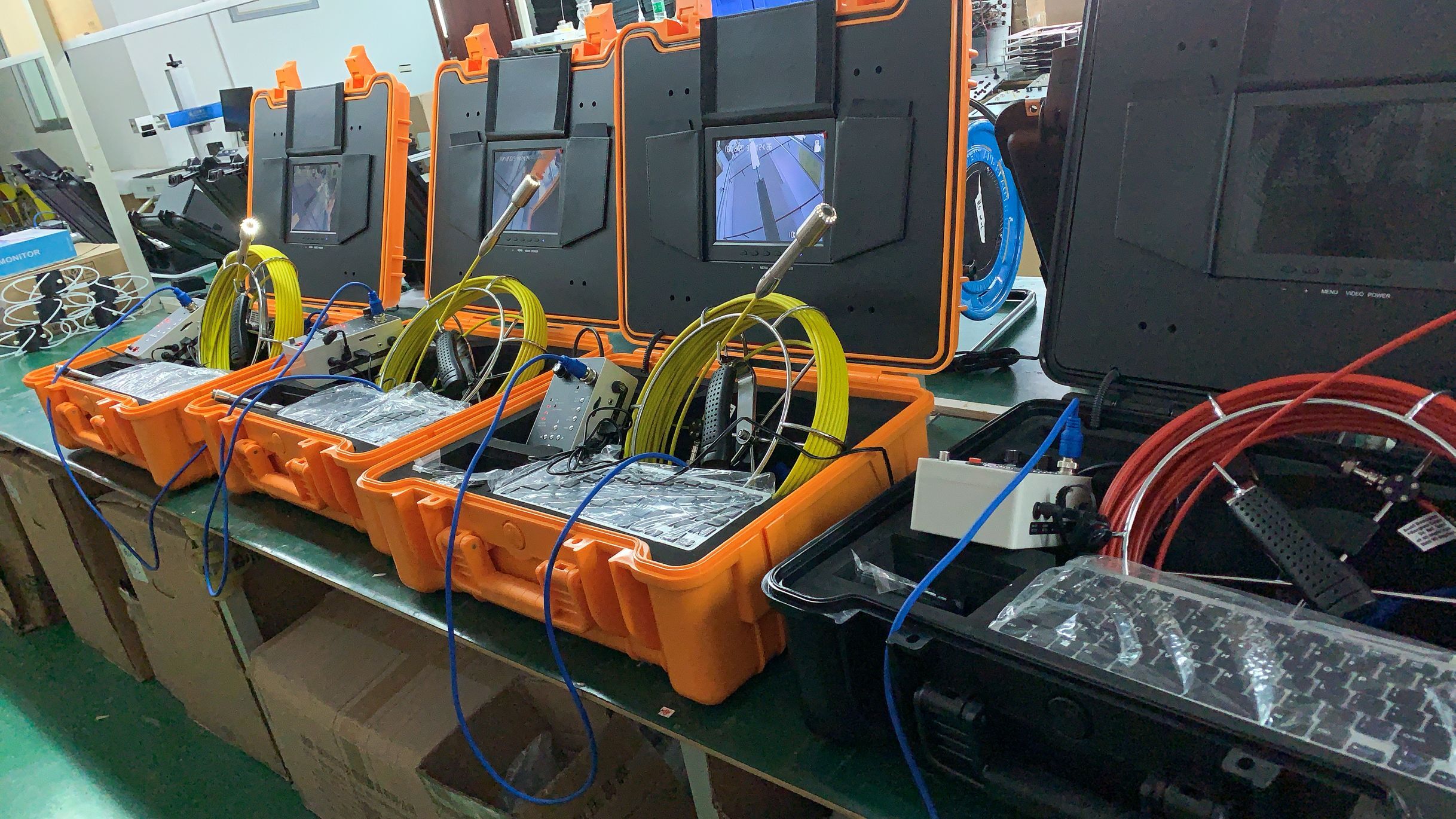

  • The Equipments Under Testing in Factory

  Testing Picture.jpg

5.Testing of the P10000DK.jpg

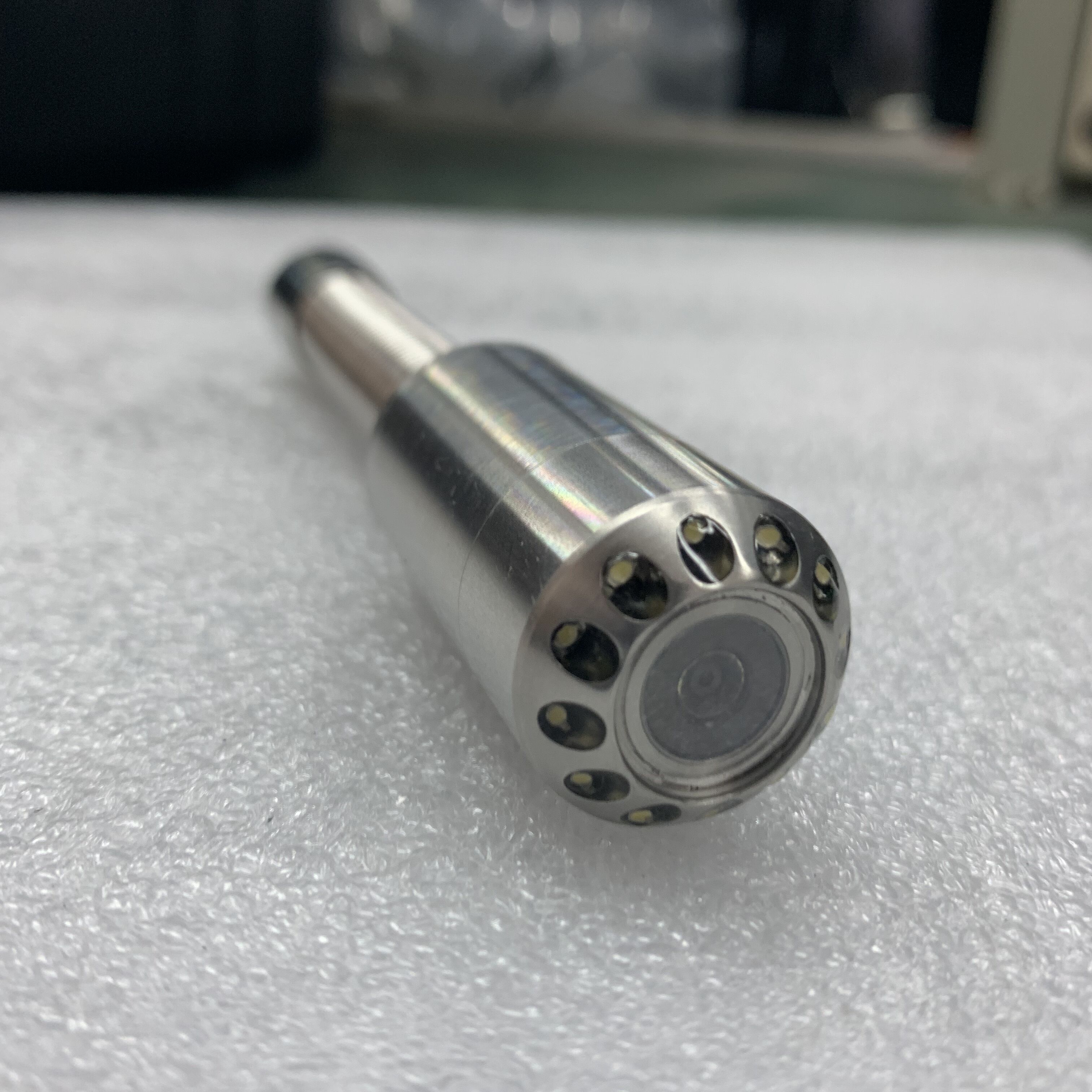

  • 29mm Self-level camera head

    TIM图片20191210152853.jpg 29mm self-level camera head forP10001DK.jpg

  • Please Download the Detail Spec

Detail spec  of P10000DK.pdf
