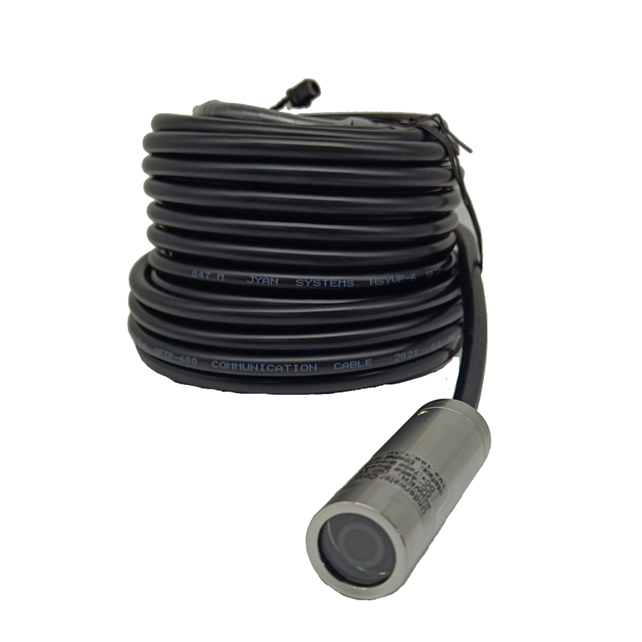

Subsea Minicam
Subsea minicam D10009
Application:
Shallow seawater inspection
Fish pen net inspection
Salmon monitoring system
Seawater and freshwater research
Fish farm inspection
Offshore survey
Hyrological research
Detail Spec of the Subsea minicam D10009:
Camera Type |
Mini Subsea Minicam D1009 |
|
Camera |
Image Sensor |
2.7 inch 2MP progressive scan SONY CMOS |
Effective Pixels |
1080P 1920*1080 |
|
Min.Illumination |
Color 0.5Lux/F1.4 |
|
Electronic Shutter |
1/50(1/60)s-1/100,000s |
|
Lens |
2.5/2.8/3.6mm fixed lens |
|
Lens Mount |
M12 |
|
Material |
stainless steel 316L |
|
Compression |
Compression Standard |
H.265+/H.265/H.264 |
Video Frames |
PAL/NTSC 1080P@25/30FPS |
|
Video stream output |
Support adjustable stream 0.1M ~ 10Mpbs |
|
Image |
Quality |
3D-DNR,BLC,AWB,auto ISO |
Resolution |
Main Stream: 1920*1080/1280*720@25/30fps |
|
Sub Stream: 640*480/480*360@25/30fps | ||
Network |
Parameter Settings |
WEB configure and OSD supported, Real time recording, |
Transmission and playback | ||
Basic |
Dual stream, Password protection |
|
Protocol |
HTTP/Onvif/DHCP/DDNS/NTP |
|
Alarm |
Support Motion Detection, Linkage Alarm, Linkage recording, |
|
Sensor trigger alarm functions | ||
Interface |
Video Output |
RJ45 |
Network Interface |
1 RJ45 Ethernet interface, 10/100M adaptation |
|
Other |
Work Environment |
-10°C- +60°C |
Waterproof Criterion |
IP68 |
|
Power Supply |
POE IEEE802.3at/af |
|
Size |
30*80 |
|
Cable |
CAT6 |
|
Please kindly download the detail spec from the link as follows:
