FM512Hz Pipe Locator with Depth

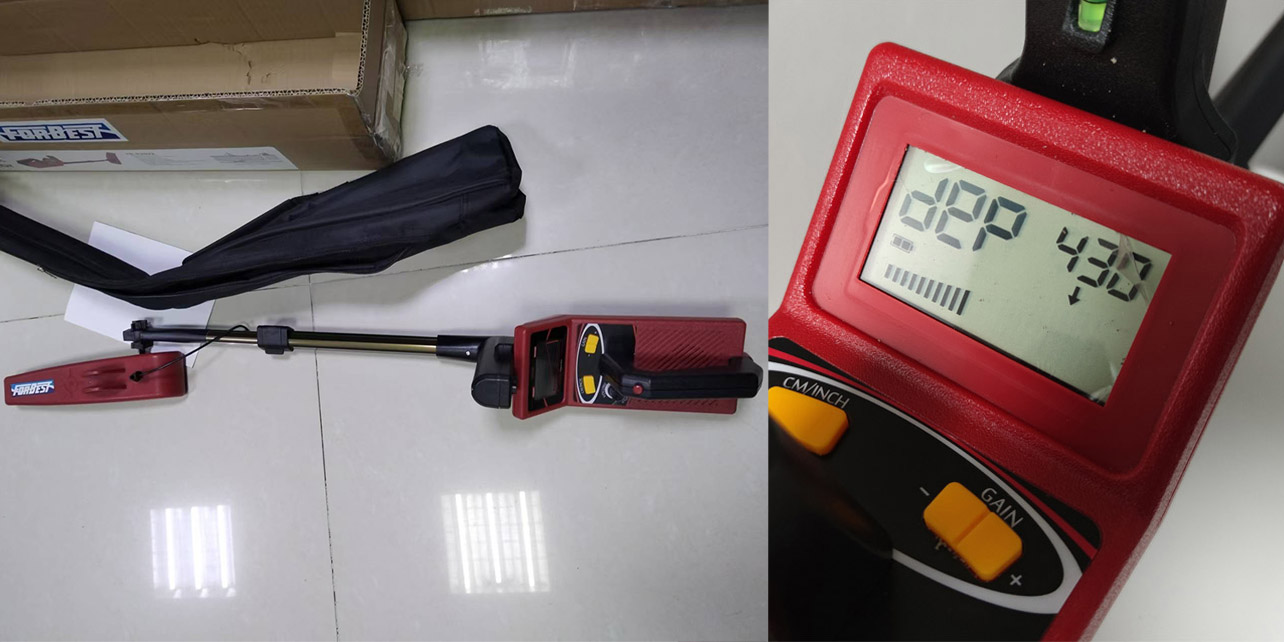

FM512Hz Pipe Locator FL51200D with depth fucntion
Applications:
Undergroud civil infrastructure project
Municipal project and service
-
Often work together with the pipe video inspection camera system
Detail spec of the FL51200D
| Frequency |
FM512Hz |
| Quiescent current |
Less than 35A |
| Working mode | Positioning /Depth measurement |
| Gain adjustment(+,-) | Step and continuously adjustable |
|
The signal strength bar display LCD |
Shows 24 level of signal strength,the 20th level is marked as"depth measuring bit" |
| The signal strength digital display | Shows 3 digitas,which can display the signal strength in detail |
|
The maximum positiong depth |
Related to the power of the transmitter.When equipped with 512Hz transmitter,the maximum positioning depth is about 8-10 feet |
|
Depth measurement |
Press the red measurement button,and the three digits willdisplay the depth.Hold about 5 seconds each time.When uipped with FM512Hz transmitter,the maximum depth mesurement range is about 0.3M-4 M. |
| Unit conversation depth unit | Can choose inches or centimeters |
|
No signal was received for two sounds |
About 400Hz frequency.Received a signal,switched to a frequency of 800Hz.The sound changes when the signal stregth change |
| Volume adjustment potentiometer | Continuously adjusts speaker or headphone volume(head phone not included) |
| Power | 6AA Alkaline batteries |
| Low voltage prompt | 7.2V |
| The connecting rod | Can be adjustable in length from 80cm to 90cm |
| Dimension |
100cm*10cm*10cm |
| Weight | About 1.5KG |
| Temperature | -10℃-+50℃ |
Please download the manual instruction from the link as follows:
Product Downloads
