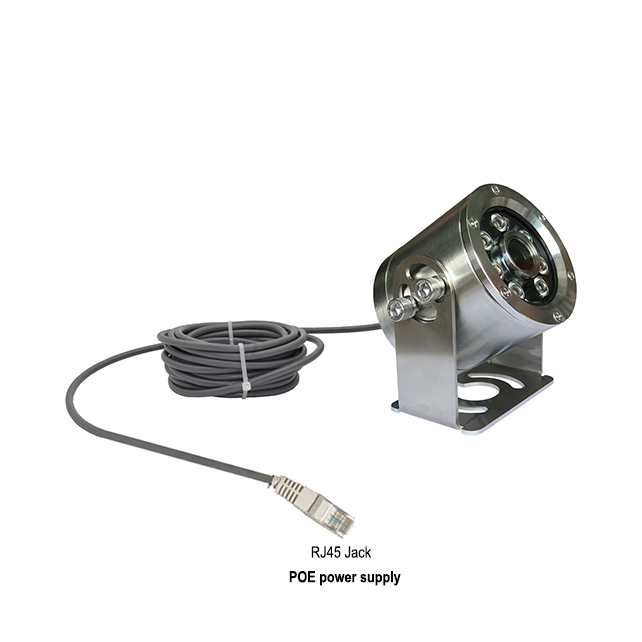

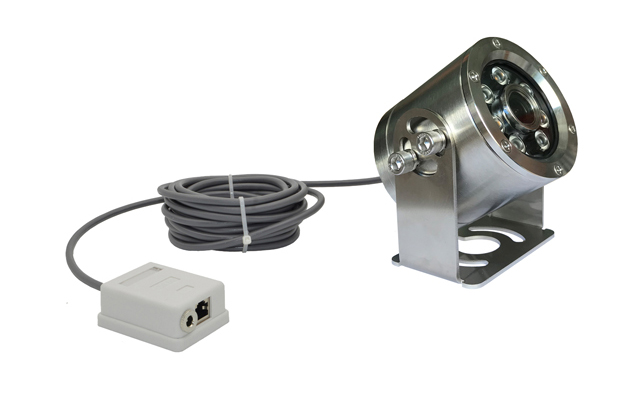

Fixed Lens Stainless Steel Underwater POE IP Camera DZ10010-ES
Stainless Steel 1080P Underwater POE IP Camera #DZ10010-ES
Advantage:
Lens: 2.8 MM(H.FOV:140°),
Resolution: 2MP 60FPS/3MP 25FPS/4MP 25FPS/5MP 25FPS
Illumination: Built-in led lights and infrared lights, manual control or light sensor control the brightness
Water depth: 50M.Permanent Installed under water available
10M standard cable length,
Power Supply: DC12V 1A
Support iOS, Android, computer, NVR
IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,RTSP,ONVIF;SDK Secondary development
Detail spec
| Camera Head Dimension | Ф70mm*65mm |
| Lens | 2.8mm(H.FOV:140°) |
| Sensor | 1/2.7”OV CMOS sensor, color 0.01lux F1.2,black/white 0.01Lux F1.2 |
| Resolution |
2MP 1920*1080P 60FPS 3MP 2048*1536P 25FPS 4MP 2590*1920P 25FPS 5MP 2592*1520P 25FPS |
| Built-in Light |
Light sensor contorlled 3 white light ,10 level brightness settings (maximum 800 lumens) Manual contorlled 3 white light , 10 level brightness settings (maximum 800 lumens) Light sensor contorlled 3 infrared light ,10 level brightness settings (maximum 800 lumens) Manual contorlled 3 infrared light ,10 level brightness settings(maximum 800 lumens) |
| Image color | Two modes: 1: white light - full color; 2: infrared light - automatic color to black; |
| Camera Housing | 316L stainless steel, anti-corrosion |
| Waterproof level | IP68（permanent Installed under water） |
| Water pressure | Maximum 500Kpa (Waterpressure resisitance 50M) |
| Cable | 10M standard length, PU material,Diameter 7MM.Resistance to 60KG pull,Anti-aging,Anti-friction,Resistance to seawater corrosion,Special underwater wire. |
| Power Supply | DC12V 1A |
| Weight | 1.5KG |
| Supporting device | Support iOS, Android, computer, NVR.Compatible with hikvision, dahua, proprietary protocol.(Only support windows-IE browser for camera internal parameter setting) |
| Supporting agreement | IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,RTSP,ONVIF;SDK Secondary development |
| Use environment | Sea water / fresh water /Underwater,land,Car,Shipborne. |
| Working humidity | 0%-100% |
| Working temperature | -20°-55° |
| Packing List |
1 Camera 1 CD 1 manual, |
Digital Video Camera DZ10010-ES Under Working in the Boiled Water
DZ10010-ES Serviced for Swimming Pool, Fish Farm and other Projects.
Packing
Please Download the Detail Spec
