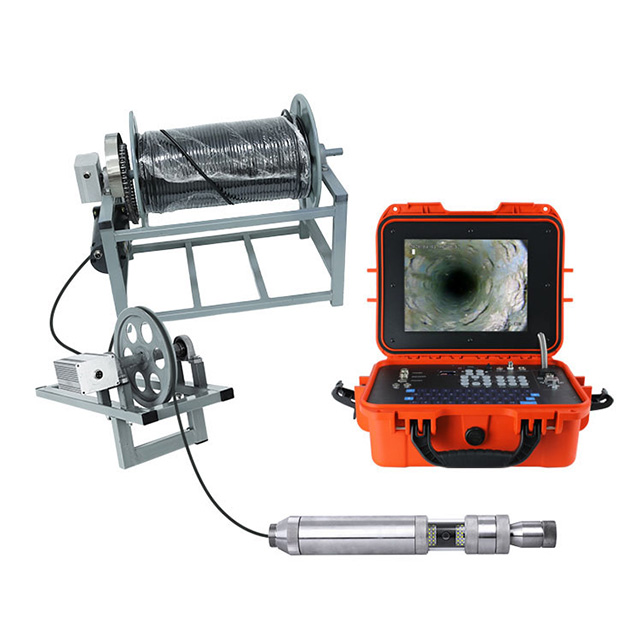

D10014PT Borehole Inspection Camera System with Water Depth 2000M
360°Rotating Borehole Inspection Camera System D10014PT
Applications:

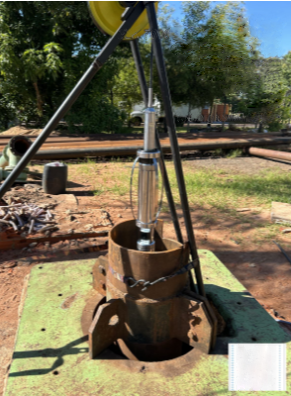

Borehole Inspection
Deep well survey
-
All visual applications
Detail specification:
| Camera head | |
| Diameter | Ф65MM*300MM(L) |
| Waterproof | 20MPa, water depth: 2000M Max |
| Heat-resistant | 70℃ |
| Led Lights | Built-in 12 pcs Led Lights with 10 Level Dimness |
| Sensor | 1/3” High Resolution CCD,Pixles:976(H)*582V(PAL) 700TVL |
| Resolution | 700TVL |
| Focus | Variable Focus |
| View of Angle | 90° |
| Signal to Noise Ratio | 52dB(Min) to 60dB(Max)(AGC shut down) |
| Sensitivity | 0.1 Lux at F1.2 5600°K |
| Pan Movement | Support Single Step and Multi-Step |
| Tilt Movement | Support Single Step and Multi-Step |
| One Button Auto Pan Canning | |
| Speed Setting and Dynamic Switching | |
| Step Length Setting and Dynamic Switching | |
| Cable | |
|
Cable Diameter |
8MM |
| Tensile Strenght | 280KG |
| Logging Cable | 6 Cores |
| Digital Meter-counter | Accurate 0.05M |
| Centralizer |
High Elastic Stainless Steel Centralizer |
| Heat-resistance | 70℃ |
| Downhole Pulley | |
| Pulse | 400 |
| Digital meter-counter function | Work together with the suitcase |
| Meter-counter accuracy | 0.05M./ Automatic calibration |
| Suitcase | |
| Power Supply | 12V-220V |
| Dimension | 415*340*144MM |
| Depth Jack | Yes |
| Video in /out Jack | Yes |
| Video/audio/text recording | Yes |
| Keyboard | Yes |
| Storage | Support Hard Driver and USB |
| Monitor | |
| Size | 12 inch |
| Model |
4:3 |
| Contrast Ratio | 500cd/㎡ |
| Pixles | 1024*768 |
| Power Supply | DC12V |
Product Downloads
Detail Spec Download
