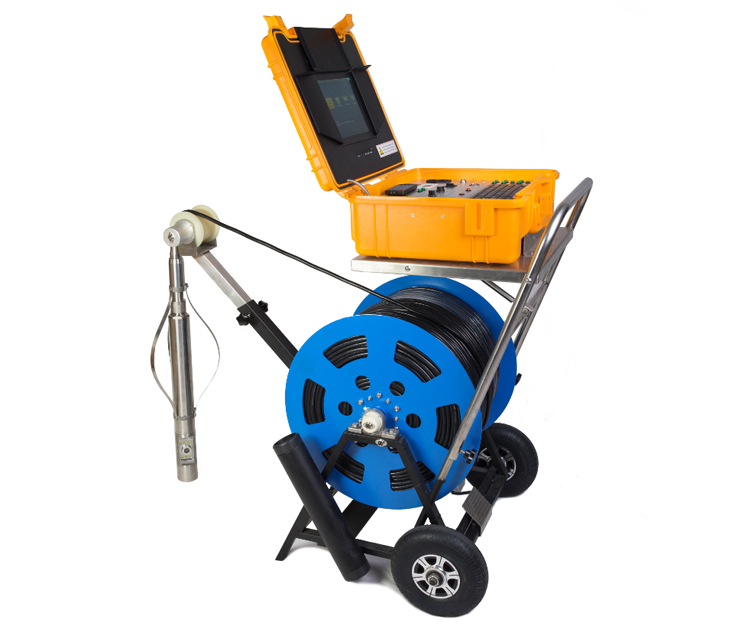

Vicam Dual and Rotating Borehole Inspection Camera System
Vicam Dual and Rotating Borehole Inspection Camera System P10010PT-Dual
Ф63*57mm camera waterproof 50Bar(725PSI),stainless steel camera housing.
With stainless steel centeral star
200M-500M electrical twist cable wheel with auto wirring arranging system
Suitcase with 10inch screen and video/audio recording
Built-in 128G DISK for storage and wifi
Distance on -screen
Built-in temperature sensor and compass
Auto-wirring arranging system Side view 360° rotating endless and side 120°view angle
|
Camera Head *Φ63mm L570mm Stainless steel casing *Waterproof IP68 Operating depth 50 bars (725 PSI) *Dual Camera Down & Side viewing *Pan 360° rotate endless *View angle 120° *Sensor resolution PAL 720H×576V NTSC 720H*480V *Horizontal resolution 700 TVL *6pcs high light LED (down view) *6pcs high light LED (side view) *Camera weight 5KG |
|
Electric Winch *Winding speed：0~20m/min *Cable speed adjustable *Φ10.5mm twisted pair cable 100-500m length *Power supply AC 110/AC230V, DC12~24V *On screen depth encoder *Electric cable rolling |
|
Monitor: * 10" industrial color monitor * Display model 4:3 * Resolution 1024*768 * Menu language 9 languages optional Control Panel： * Video input option: Borehole Camera or Pan & Tilt Camera * Winch operating knob（adjusting speed, cable up and down, brake） * Camera rotation control button (clockwise and counterclockwise) * Down and side camera select button and LED brightness control button * HD DVR Audio/Video recording & playback * Video storage Medium: Built in 128GB SSD or USB device * On-screen depth encoder, temperature and compass Built in WIFI transmitter * Using intelligent terminals as display and recording device * Transmitter distance 30m * Through WIFI wireless transmit video to Android, Apply OS or MID terminal * Non-interference for 2.4G wireless remote control |
Control Unit Panel Buttons Function Declaration | |
|
| |
-
Camera Image When It Working On Site
-
Wooden Case for Protecting the Equipment Well in Transportation
Please Download the Detail Spec
Detail Spec of sheet of D10010PT-Dual.pdf
D10010PT-Dual Easy of operation suitcase
D10010PT-Dual side lens 360° rotating and bottom lens with wide view angel
